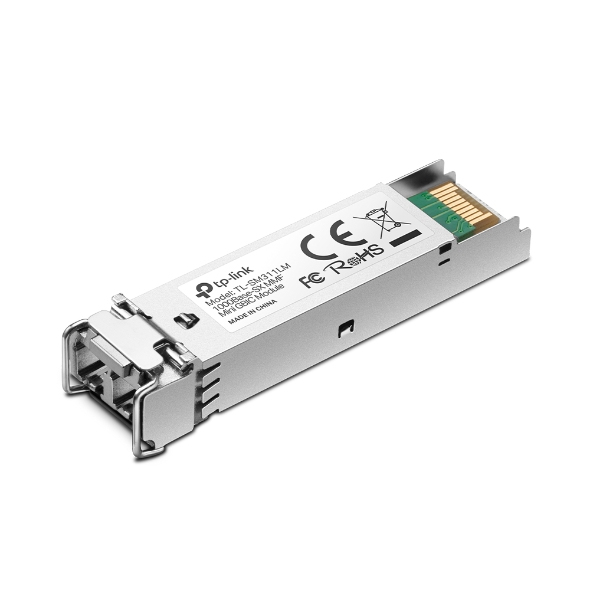

TP-Link TL-SM311LM SFP (mini-GBIC) transceiver modul Gigabit Ethernet
The TL-SM311 series fiber module card is introduced to extend the transmission distance associated with the managed/web smart switches. They can extend the distance to several kilometers, even tens of thousands of kilometers, which can basically meet the distance requirement of LAN. Users can choose whether and which elements they want to use the fiber modules for, according to need, to lower costs.
Availability: In stock
The TL-SM311 series fiber module card is introduced to extend the transmission distance associated with the managed/web smart switches. They can extend the distance to several kilometers, even tens of thousands of kilometers, which can basically meet the distance requirement of LAN. Users can choose whether and which elements they want to use the fiber modules for, according to need, to lower costs.
Specifications
| Enhedstype | SFP (mini-GBIC) transceiver modul - LC multimodus |
| Model | Indstiksmodul |
| Kabeltype | 1000Base-SX |
| Data transfer speed | 1 Gbps |
| Optical wavelength | 850 nm |
| Dataforbindelsesprotokol | 1GbE |
| Max. transmission distance | 550 m |
| Designet for | P/N: TL-SG3452XP V1 |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Compliant Standards | Plug and Play, FCC |
| Connectivity Technology | Wired |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Full duplex capability |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Status Indicators | Status |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Designed For | P/N: TL-SG3452XP V1 |
