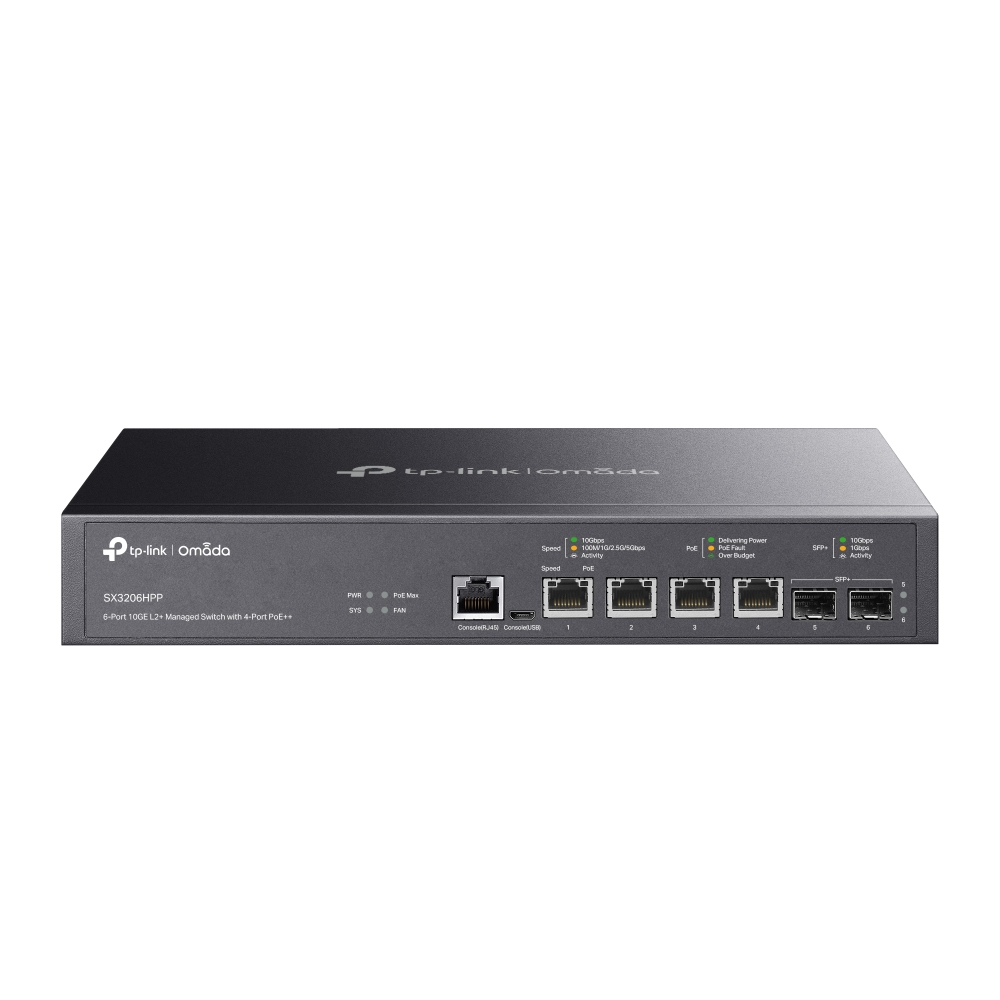

TP-Link JetStream TL-SX3206HPP V1 Switch 6-porte 10 Gigabit PoE++
€536,99
TP-Link JetStream TL-SX3206HPP V1 - Switch - L2+ - Administreret - desktop, monterbar på stativ - PoE++ (200 W)
Availability: In stock
Secure payment · Fast delivery
EAN:6935364006617Brand:
TP-Link JetStream TL-SX3206HPP V1 - Switch - L2+ - Administreret - desktop, monterbar på stativ - PoE++ (200 W)
Specifications
Specifications
| Produktbeskrivelse | TP-Link JetStream TL-SX3206HPP V1 - switch - 6 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 6 porte - L2+ - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | 10 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE++ |
| PoE-budget | 200 W |
| Præstation | Omkoblingskapacitet: 120 Gbps<br>Pakkevideresendelseshastighed: 89.28 Mpps |
| Kapacitet | Prioritetskøer: 8<br>Maksimale samlingsgrupper: 8<br>Ports per aggregation group: 8<br>Lag 2 multicast-filtreringsprofiler: 256<br>Lag 2 multicast-filtreringposter per profiler: 16<br>VLAN-grupper: 4000<br>Bindende posteringer: 512<br>MAC-adresser per port: op til 64<br>IP-interfacer: 16<br>Statiske ruter: 48<br>Statiske ARP-indtastninger: 128 |
| MAC adresse table størrelse | 32K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, IPv4, IPv6 |
| Egenskaber | Datatransport, netværksovervågning, IGMP snooping, portspejling, gem og send, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, STP support, QoS, DHCP server, MDL snooping, Cable Diagnostics Function, båndbreddekontrol, DHCP videresendelse, IP-MAC binding, MVR, portisolering, statisk routing, CoS, SP, mærket VLAN, GVRP, DoS, 2 blæsere, Tidsstyret ACLs support, Protokol-baseret VLANs support, systemlog, Link Aggregation, MIB II, dobbelt billedsupport, tempogrænse, SDN, AAA, Voice VLAN, Private VLAN, IGMP hurtigafgang, VLAN-gruppe, proxy ARP, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, tilbageløkke-detektion, køplanlægningssupport, planlæg genstart, DSCP-prioritering, enhedsopdagelse, DHCPv6 snagning, ACL MAC-baseret |
| Overensstemmelsesstandarder | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3bt |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 29.4 cm x 18 cm x 4.4 cm |
| Systemkrav | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11 |
| Authentication Method | Secure Shell (SSH), TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | Priority queues: 8 | Maximum aggregation groups: 8 | Ports per aggregation group: 8 | Layer 2 multicast filtering profiles: 256 | Layer 2 multicast filtering entries per profile: 16 | VLAN groups: 4000 | Binding entries: 512 | MAC addresses per port: |
| Compliant Standards | FCC, RoHS |
| Device Type | Switch - 6 ports - L2+ - managed |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | Flow control, network monitoring, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Quality of Service ( |
| Flash Memory | 32 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 32K entries |
| Performance | Switching capacity: 120 Gbps | Packet forwarding rate: 89.28 Mpps |
| PoE Budget | 200 W |
| RAM | 256 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, IPv4, IPv6 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Status Indicators | Power, system, link/activity, PoE max |
| Subtype | 10 Gigabit Ethernet |
| Interfaces | 4 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE++ - 60 W | 2 x 10GBase-X SFP+ | 1 x console RJ-45 | 1 x micro-USB Type B console |
| Power Consumption Stand by | 13.52 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10, Microsoft Windows 11 |
| Depth | 18 cm |
| Height | 4.4 cm |
| Width | 29.4 cm |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
