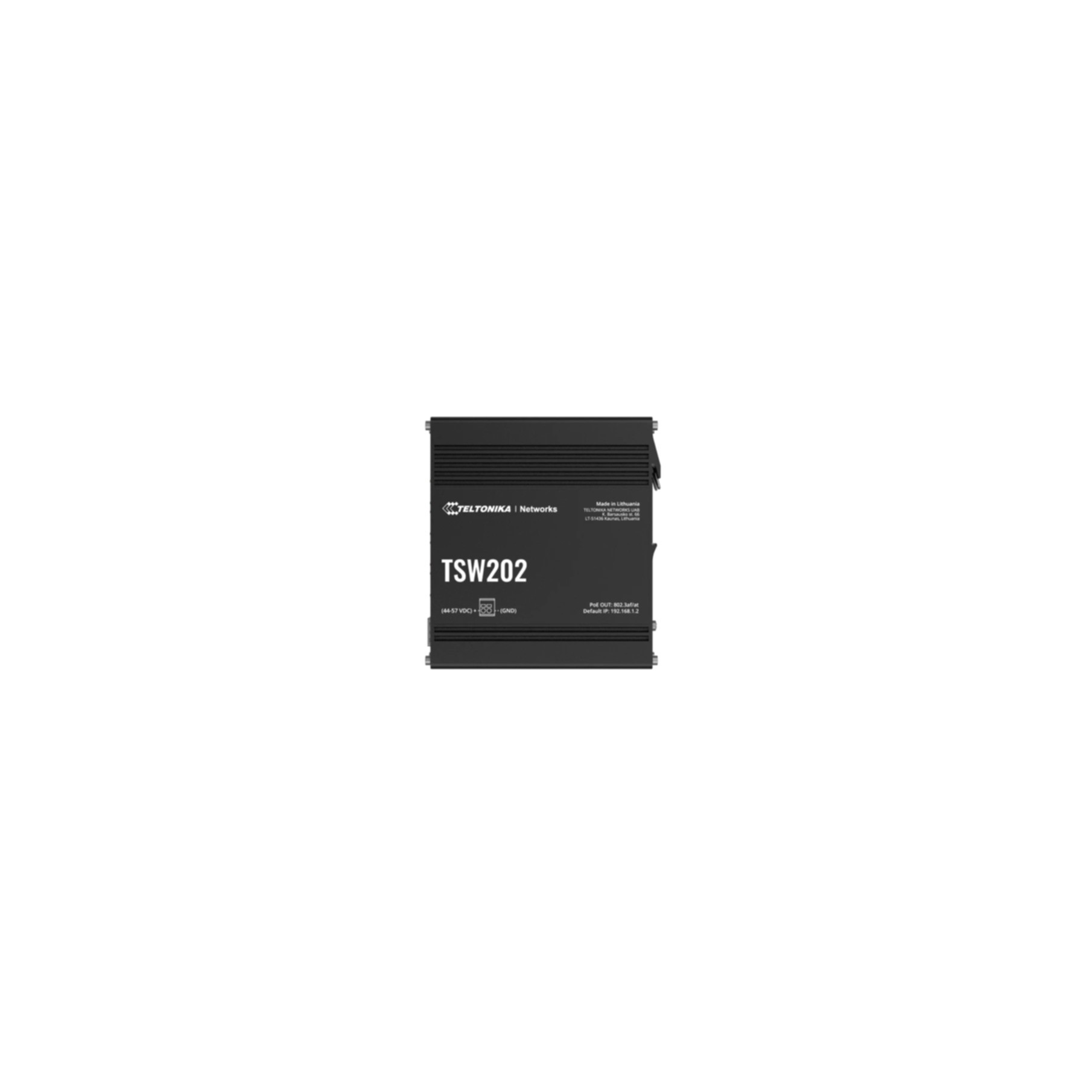

Teltonika TSW202 8-port Switch 10/100/1000
€100,81

TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease. PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports. The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing. Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.

Availability: In stock
-
+
Secure payment · Fast delivery
EAN:4779051840281Brand:

TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease. PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports. The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing. Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.

Specifications

Specifications
Switch typeManaged
Ethernet ports8
Ethernet ports typeGigabit Ethernet (10/100/1000)
Switching capacity20 Gbit/s
Switch layerL2
Quality of Service (QoS) supportyes
Web-based managementyes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Installed SFP modules quantity2
Power connectorTerminal block (3-pin)
Networking standardsIEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
10G supportno
Port mirroringyes
Full duplexyes
Link aggregationyes
Auto-negotiationyes
Active link detectionyes
VLAN supportyes
MAC address table8000 entries
Jumbo frames supportyes
Jumbo frames10000
DHCP featuresDHCP client
IGMP snoopingyes
Rack mountingno
Stackableno
Product colourAluminium, Blue
Housing materialAluminium
Reset buttonyes
LED indicatorsPower, Status
International Protection (IP) codeIP30
DIN rail mountingyes
Power supply includedno
Power over Ethernet (PoE)yes
Power over Ethernet (PoE) type supportedActive PoE
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget240 W
Operating temperature (T-T)-40 - 75 °C
Width132 mm
Depth44.2 mm
Height122 mm
Weight610 g
