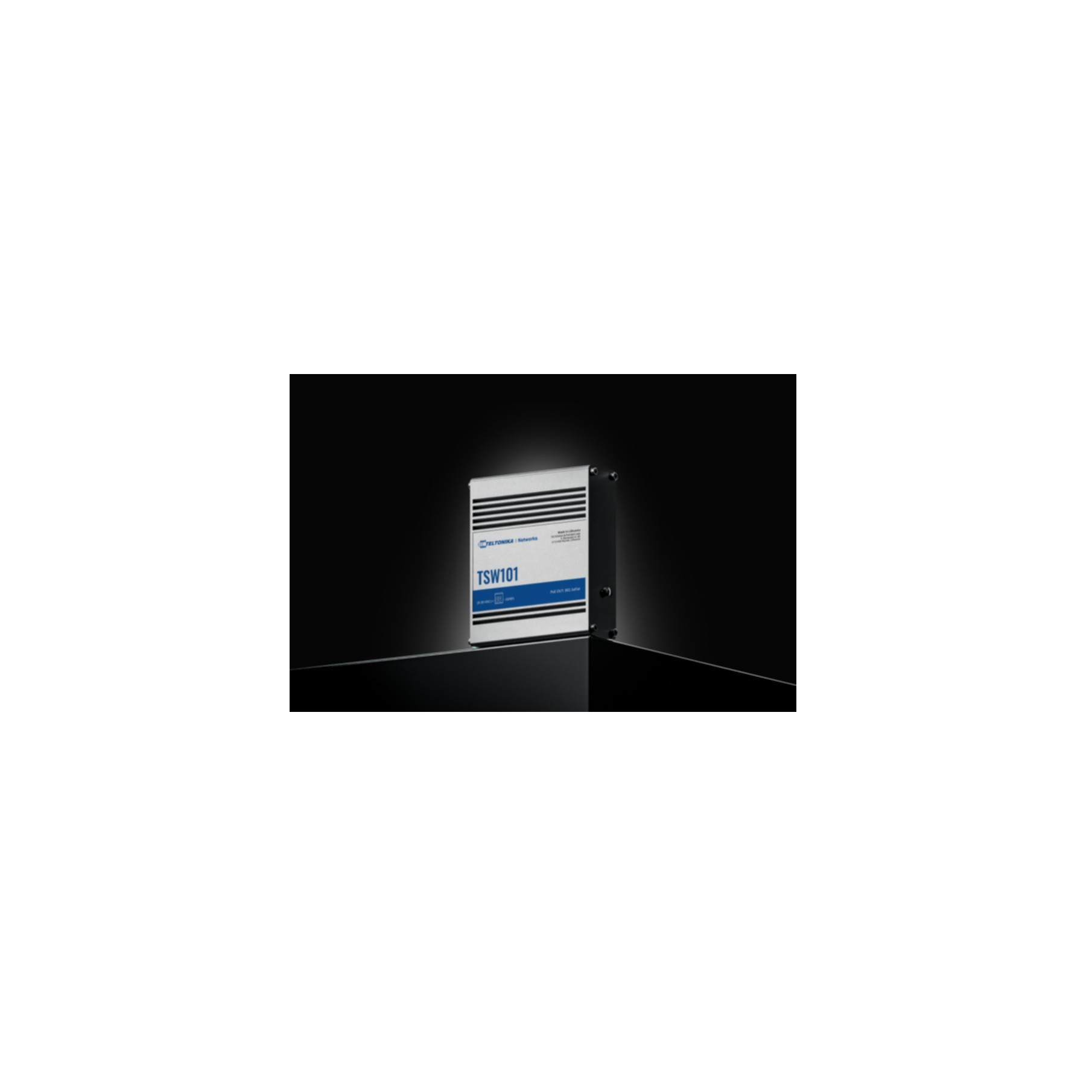

Teltonika TSW101 5-port Switch 5x10/100/1000
AUTOMOTIVE POE+ SWITCH Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
Availability: In stock
AUTOMOTIVE POE+ SWITCH Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
Specifications
| Ethernet ports | 5 |
| Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Switching capacity | 10 Gbit/s |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | Terminal block (2-pin) |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support | no |
| Auto MDI/MDI-X | yes |
| MAC address table | 2000 entries |
| Jumbo frames support | yes |
| Jumbo frames | 9216 |
| Product colour | Metallic |
| Housing material | Aluminium |
| LED indicators | Power, Status |
| International Protection (IP) code | IP30 |
| Power source | DC |
| Input voltage | 9 - 30 V |
| Power consumption (typical) | 0.64 W |
| Power consumption (max) | 2.31 W |
| Power over Ethernet (PoE) | yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 115 mm |
| Depth | 32 mm |
| Height | 95 mm |
| Weight | 354 g |
| Certification | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Harmonized System (HS) code | 851762 |
