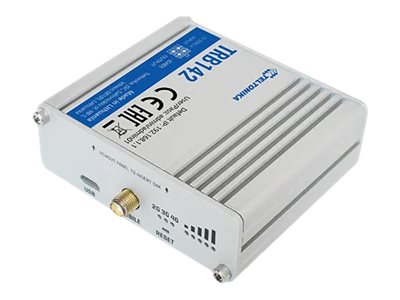

Teltonika TRB142 Gateway Ekstern
€97,13
Teltonika TRB142 - Gateway - RS-232, Modbus - LTE B1/B20/B28/B3/B7/B8
Availability: In stock
Secure payment · Fast delivery
EAN:4779027312385Brand:
Teltonika TRB142 - Gateway - RS-232, Modbus - LTE B1/B20/B28/B3/B7/B8
Specifications
Specifications
| Produktbeskrivelse | Teltonika TRB142 - gateway |
| Enhedstype | Gateway |
| Formfaktor | Ekstern |
| Lokalisering | Europa |
| Processor | 1 x ARM Cortex-A7 1.2 GHz |
| RAM | 128 MB |
| Flashhukommelse | 512 MB |
| Dataforbindelsesprotokol | RS-232, Modbus |
| Kapacitet | VPN-tunneler: 5 |
| Mobilt bredbåndsadgang | Ja |
| Mobilprotokol | GSM, GPRS, UMTS, EDGE, HSPA+, FDD LTE |
| Mobilt net | LTE B1/B20/B28/B3/B7/B8 |
| Udstyr inkluderet | LTE-antenne, hex-nøgle |
| Dimensioner (B x D x H) | 6 cm x 7 cm x 1.8 cm |
| Vægt | 135 g |
| Depth | 7 cm |
| Device Type | Gateway |
| Height | 1.8 cm |
| Localization | Europe |
| Weight | 135 g |
| Width | 6 cm |
| Flash Memory | 512 MB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x ARM Cortex-A7 1.2 GHz |
| Authentication Method | X.509 certificates |
| Capacity | VPN tunnels: 5 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | RS-232, Modbus |
| Encryption Algorithm | DES, Triple DES, RC2, IKE, TLS, SSL 3.0, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit AES-CBC, 128-bit AES-CBC, 192-bit AES-CBC |
| Features | Flow control, firewall protection, NAT support, VPN support, MAC address filtering, firmware upgradable, IPSec NAT-Traversal (NAT-T), port forwarding, reset button, DIN rail mountable, GRE tunneling, Firmware Over-the-Air (FOTA), SMS remote control, |
| Form Factor | External |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, DHCP, DNS, DDNS, IPv4, IPv6 |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH, SSH-2, CLI, JSON-RPC, Modbus, MQTT |
| Routing Protocol | Static IP routing, GRE |
| Status Indicators | Power, signal, data |
| Antenna | External detachable |
| Antenna Qty | 1 |
| Directivity | Omni-directional |
| Gain Level | 2 dBi |
| Cellular Band | LTE B1/B20/B28/B3/B7/B8 |
| Cellular Protocol | GSM, GPRS, UMTS, EDGE, HSPA+, FDD LTE |
| Mobile Broadband Access | Yes |
| Communications Technology | LTE Cat 1 |
| Internet of Things (IoT) Compatible | Yes |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Interfaces | 1 x USB - micro-USB | 1 x antenna - SMA | 1 x RS-232 - DB-9 | 2 x digital input/output - terminal block |
| Cables Included | 1 x micro-USB cable - 80 cm |
| Compliant Standards | RoHS, WEEE, IP30, EAC, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-4-5:2014, EN 61000-4.4:2012, RED, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, ETSI EN 301 908-1 V11.1.1, ETSI |
| Included Accessories | LTE antenna, hex key |
| Power Consumption Operational | 5 Watt |
| Power Device | External power adapter |
| OS Provided | RutOS |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
