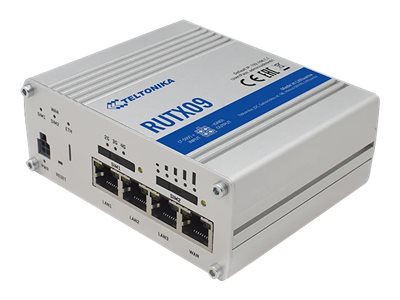

Teltonika RUTX09 Router 4-port switch Kabling
€244,88
Teltonika RUTX09 - Router - WWAN 4-port switch - 1GbE - DIN monterbar på skinne
Availability: In stock
Secure payment · Fast delivery
EAN:4779027312460Brand:
Teltonika RUTX09 - Router - WWAN 4-port switch - 1GbE - DIN monterbar på skinne
Specifications
Specifications
| Produktbeskrivelse | Teltonika RUTX09 - router - WWAN - DIN monterbar på skinne |
| Enhedstype | Router - trådløs mobilmodem - 4-port switch (integreret) |
| Pakningstype | DIN monterbar på skinne |
| Mobilprotokol | LTE |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Netværks/overføselsprotokol | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, SMTP, DHCP |
| Protokol til fjernadministration | SNMP 2, SNMP, SNMP 3, HTTP, SSH, TR-069, JSON-RPC, Modbus, MQTT |
| Egenskaber | NAT-understøtning, VPN support, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, indholdsfiltrering, DiffServ understøttet, MAC-adresse-filtrering, IPv6 understøttet, FOTA, Teltonika RMS |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Effekt | DC 9 - 50 V |
| Dimensioner (B x D x H) | 11.5 cm x 9.5 cm x 4.4 cm |
| Vægt | 465 g |
| Authentication Method | X.509 certificates, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Features | NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, content filtering, DiffServ support, MAC address filtering, IPv6 support, Firmware Over-the-Air (FOTA), Teltonika Remote Management System (RMS) |
| Flash Memory | 256 MB |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, SMTP, DHCP |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, HTTP, SSH, TR-069, JSON-RPC, Modbus, MQTT |
| Status Indicators | Power, signal strength, SIM status, mobile network type |
| Cellular Protocol | LTE |
| Max Transfer Rate | 300 Mbps |
| Type | Wireless cellular modem |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | Antenna: 2 x SMA | Antenna: 1 x GPS connector |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Power Consumption Operational | 11 Watt |
| Voltage Required | DC 9 - 50 V |
| OS Provided | RutOS |
| Depth | 9.5 cm |
| Height | 4.4 cm |
| Weight | 465 g |
| Width | 11.5 cm |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
