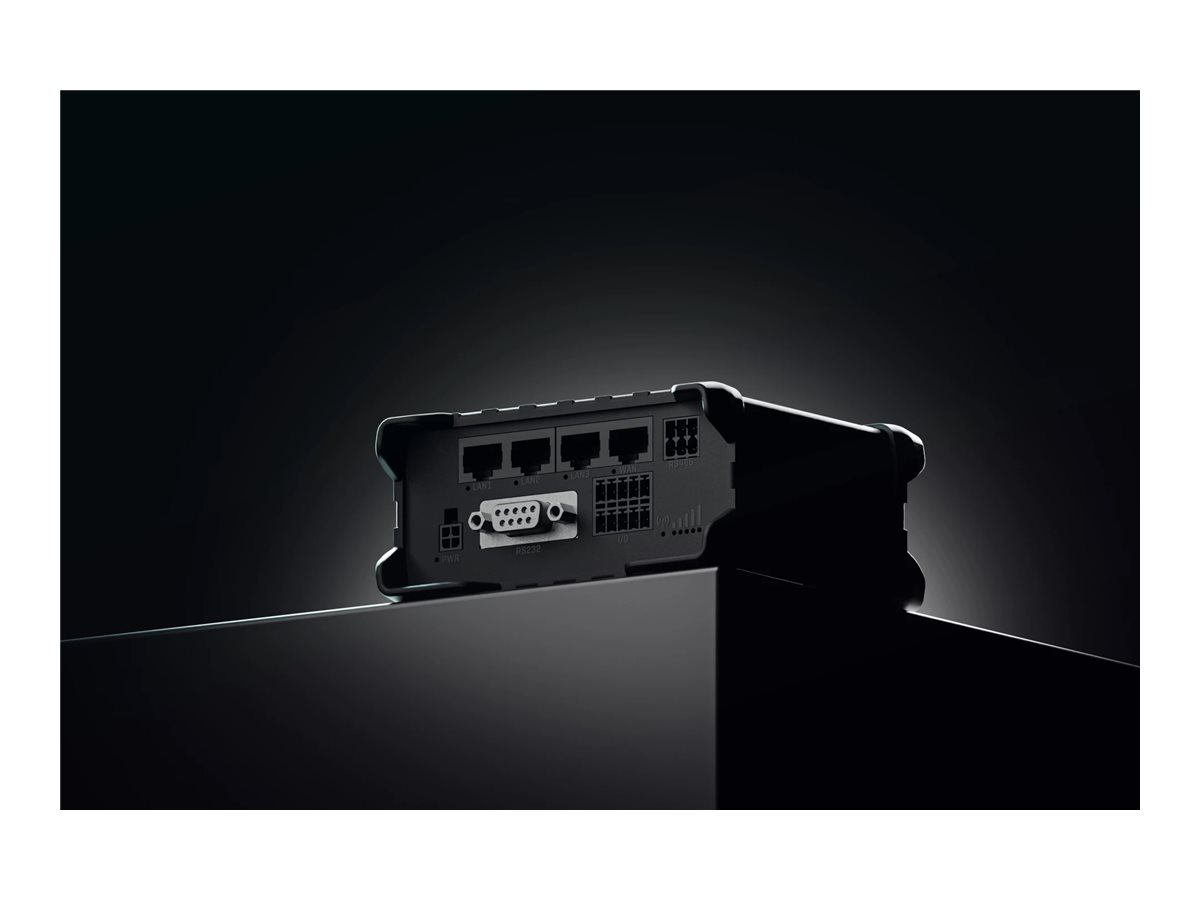

Teltonika RUT955 Trådløs router DIN monterbar på skinne Overflademonterbar
€213,00
Teltonika RUT955 - Trådløs router - WWAN 3-port switch - RS-232, RS-485 2,4 GHz - DIN monterbar på skinne, overflademonterbar
Availability: In stock
Secure payment · Fast delivery
EAN:5706998771599Brand:
Teltonika RUT955 - Trådløs router - WWAN 3-port switch - RS-232, RS-485 2,4 GHz - DIN monterbar på skinne, overflademonterbar
Specifications
Specifications
| Produktbeskrivelse | Teltonika RUT955 - trådløs router - WWAN - Wi-Fi - DIN monterbar på skinne, overflademonterbar |
| Enhedstype | Trådløs router - trådløs mobilmodem - 3-port switch (integreret) |
| Pakningstype | DIN monterbar på skinne, overflademonterbar |
| Mobilprotokol | LTE, FDD LTE, TDD LTE |
| Mobilbånd | LTE B3, LTE B7, LTE B20, LTE B1, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38 |
| Antal WAN porte | 1 |
| Dataforbindelsesprotokol | Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11g, RS-485, IEEE 802.11n |
| Frekvensbånd | 2,4 GHz |
| Dataoverførselshastighed | 300 Mbps |
| Kapacitet | Samtidige tilslutninger: 100 |
| Netværks/overføselsprotokol | TCP/IP, PPTP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Routingprotokol | RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, GRE |
| Platform | Azure, Clouds of Things, ThingWorx, Cumulocity |
| Protokol til fjernadministration | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, TR-069, JSON-RPC, Modbus, MQTT |
| VoIP-protokoller | H.323, SIP |
| Egenskaber | Firewallbeskyttelse, NAT-understøtning, aktivitet, WOL, auto-uplink (auto MDI/MDI-X), E-mail advarsel, MAC-adresse-filtrering, firmware kan opgraderes, DDos attack beskyttelse, strømstødsbeskyttelse, WMM support, resultat register, QoS, IPSec NAT-T, SMS alarmer, port fremsendelse, nulstillingsknap, DHCP videresendelse, SNMP fælde, GRE tunneling, FOTA, SMS-fjernstyring, mærket VLAN, SYN Flooding, systemlog, DMZ-support, portbaseret VLAN, sort liste, hvidliste, brotilstand, OpenVPN-klient, OpenVPN server, aluminiumskabinet |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, UPnP |
| Effekt | DC 9 - 30 V |
| Dimensioner (B x D x H) | 10.6 cm x 4.6 cm x 8 cm |
| Vægt | 280 g |
| Lokalisering | Thailand, Malaysia, Indien, Korea, Mellemøsten, Afrika, Europa |
| Authentication Method | X.509 certificates |
| Built-in Devices | GPS, GLONASS |
| Capacity | Simultaneous connections: 100 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, UPnP, EN 61000-4-4, EN 61000-4-6, EN 61000-4-5, FCC, R&TTE, RoHS, WEEE, PTCRB, IP30, EAC, EN 61000-4-2:2009, SSL v3, EN 55024:2010, EN 61000-4-3:2006+A |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11g, RS-485, IEEE 802.11n |
| Data Transfer Rate | 300 Mbps |
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | DIN rail mountable, surface-mountable |
| Encryption Algorithm | DES, Triple DES, RC2, IKE, TLS, SSL 3.0, PEAP, TTLS, TKIP, WPA-PSK, AES-CCMP, 128-bit AES, 192-bit AES, WPA2-PSK, WPA2-Enterprise, IKEv2, WEP, 256-bit AES-CBC |
| Features | Firewall protection, NAT support, load balancing, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), E-mail alert, MAC address filtering, firmware upgradable, DDos attack prevention, surge protection, Wi-Fi Multimedia (WMM) support, event log, Quality |
| Flash Memory | 16 MB |
| Frequency Band | 2.4 GHz |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, IPv4, IPv6 |
| Processor | 1 x Atheros MIPS 74KC 550 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, TR-069, JSON-RPC, Modbus, MQTT |
| Routing Protocol | RIP-1, RIP-2, BGP, VRRP, NHRP, OSPFv2, GRE |
| Status Indicators | Power, status, signal strength |
| Cellular Band | LTE B3, LTE B7, LTE B20, LTE B1, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38 |
| Cellular Protocol | LTE, FDD LTE, TDD LTE |
| Max Transfer Rate | 150 Mbps |
| Type | Wireless cellular modem |
| VoIP Protocols | H.323, SIP |
| Communications Technology | LTE Cat 4 |
| Internet of Things (IoT) Compatible | Yes |
| Expansion Slots | 2 (total) / 2 (free) x SIM | 1 (total) / 1 (free) x microSD |
| Interfaces | LAN: 3 x 10Base-T/100Base-TX - RJ-45 | WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 | Antenna: 5 x | Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) | Serial: 1 x RS-485 | USB 2.0: 1 x 4 pin USB Type A |
| Power Consumption Operational | 7 Watt |
| Power Device | External power adapter |
| Voltage Required | DC 9 - 30 V |
| Localization | Thailand, Malaysia, India, Korea, Middle East, Africa, Europe |
| MTBF | 230,000 hours |
| OS Provided | RutOS |
| Depth | 4.6 cm |
| Height | 8 cm |
| Weight | 280 g |
| Width | 10.6 cm |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
