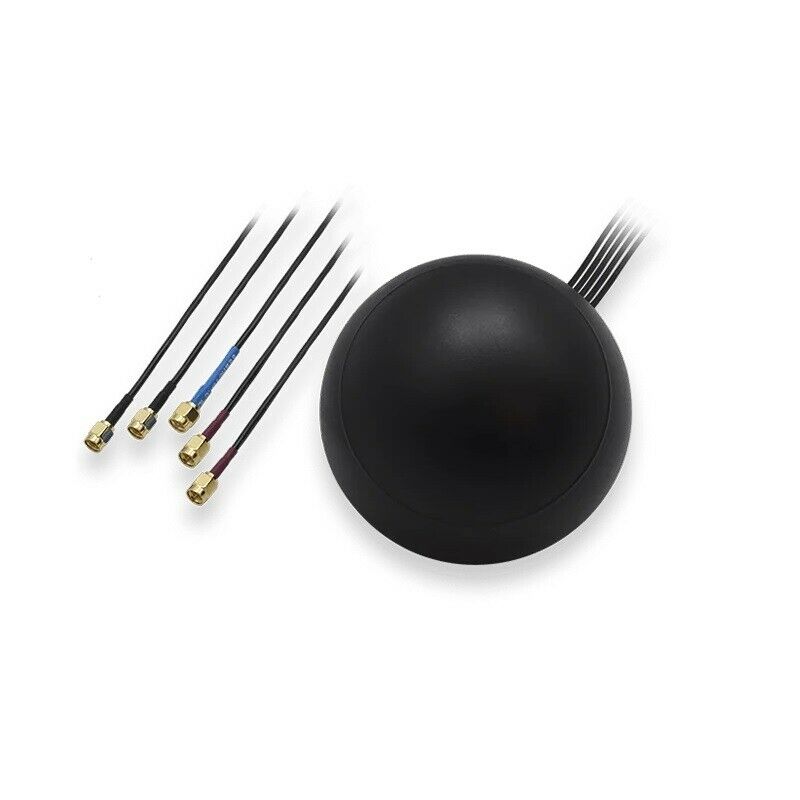

Teltonika · COMBO MIMO · Antenne · Mobile/GNSS/WIFI ROOF SMA Antenne
GNSS Antenna 5 in 1 Antenna · Frequency Range: 1575.42-1610 MHz · Polarization RHCP · Impedance 50 O · LNA Gain 28±2 dB · LNA Noise Figure < 1.5 dB · Supply Voltage 3-5 VDC · Current Consumption < 15 mA · LNA V.S.W.R <2.0 · Connector SMA Male · LTE MIMO Antenna · Frequency Range: 698-960/1710-2690…
Availability: In stock
GNSS Antenna 5 in 1 Antenna · Frequency Range: 1575.42-1610 MHz · Polarization RHCP · Impedance 50 O · LNA Gain 28±2 dB · LNA Noise Figure < 1.5 dB · Supply Voltage 3-5 VDC · Current Consumption < 15 mA · LNA V.S.W.R <2.0 · Connector SMA Male · LTE MIMO Antenna · Frequency Range: 698-960/1710-2690 MHz · Polarization Linear · Gain 3 dBi · V.S.W.R: <3.0 · Impedance: 50 O · Connector: 2x SMA Male · WiFi MIMO Antenna 2x SMA male · Frequency Range: 2400-2483.5/4900-5825 MHz · Polarization Linear · Gain 2 dBi · V.S.W.R: <2.5 · Impedance: 50 O · Connector: 2x RP SMA Male · Mechanical/Environmental · Mounting Method: Screw · Radome Ingress Protection rating: IP67 · Radome Material: ABS · Weight: <550g · Housing Dimensions: Ø 110x55 mm · Cable: 5x RG174, 3000 mm
