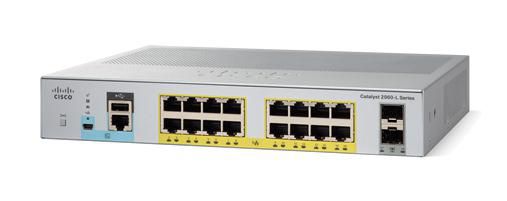

Cisco The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications.
The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features. - Layer 2 - 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks - Power over Ethernet Plus (PoE+) support with up to 120W - 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.
Availability: In stock
The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features. - Layer 2 - 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks - Power over Ethernet Plus (PoE+) support with up to 120W - 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.
Specifications
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Electromagnetic compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Product colour | Grey |
| Rack mounting | Yes |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| ARP inspection | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Multicast support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1af, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4094 |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4500 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 313496 h |
| Processor frequency | 800 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Input current | 0.28 A |
| Power consumption (typical) | 27,1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Management protocols | SNMPv3, Telnet, RMON |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SSH |
| SSH/SSL support | Yes |
| Brand Name | Cisco |
| Warranty | 1 year |
