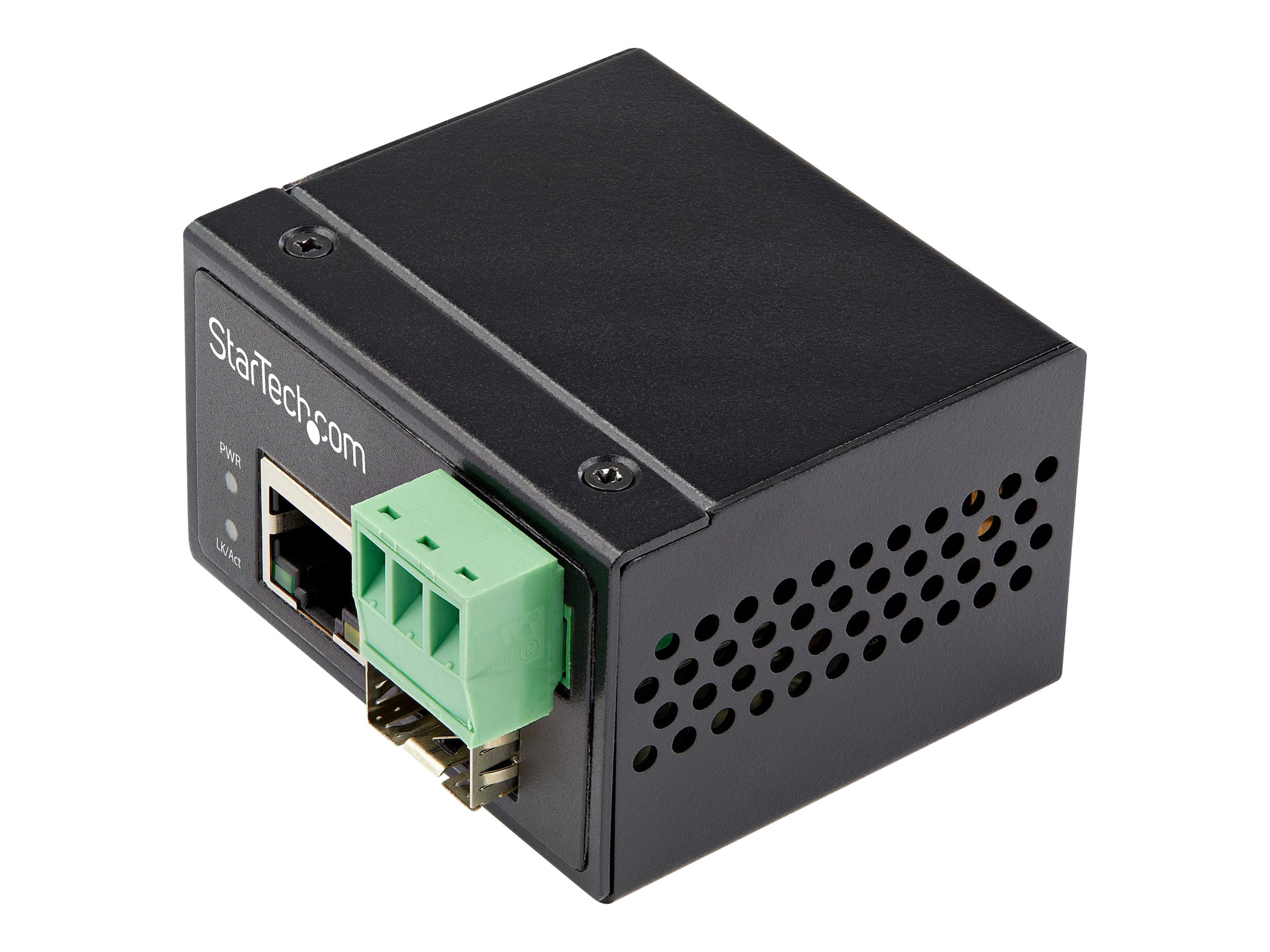

StarTech.com Industrial Fiber to Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to 75C Fibermedieomformer Ethernet Fast Ethernet
StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibermedieomformer - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
Availability: In stock
StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibermedieomformer - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
Specifications
| Produktbeskrivelse | StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - fibermedieomformer - 10Mb LAN, 100Mb LAN |
| Enhedstype | Fibermedieomformer - RJ-45 / SFP (mini-GBIC) |
| Model | Monterbar på DIN rail |
| Kabeltype | 100Base-FX, 100Base-TX |
| Dataoverførselshastighed | 100 Mbps |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN |
| Effekt | AC 18 - 36 V / DC 12 - 56 V |
| Dimensioner (B x D x H) | 3.2 cm x 5.9 cm x 5 cm |
| Vægt | 81.4 g |
| Producentgaranti | 2 year warranty |
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Cabling Type | 100Base-FX, 100Base-TX |
| Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, Back Pressure Support, 2KV Surge protection |
| Status Indicators | Port status, active, link |
| Interfaces | 1 x Ethernet 100Base-TX - RJ-45 female | 1 x Ethernet 100Base-FX - SFP female |
| Included Accessories | Power terminal block |
| Mounting Kit | Included |
| MTBF | 534,482 hours |
| Power Consumption Operational | 1.92 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 18 - 36 V / DC 12 - 56 V |
| Depth | 5.9 cm |
| Height | 5 cm |
| Weight | 81.4 g |
| Width | 3.2 cm |
| Shipping Depth | 10.5 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 200 g |
| Shipping Width | 15.5 cm |
| Service & Support | Limited warranty - 2 years |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
