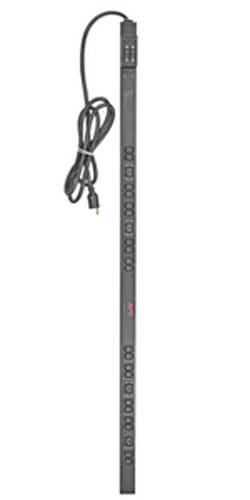

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
APC AP7820B, Metered, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler
Availability: In Stock
Marketing FeaturesLocal Current Monitoring DisplayThe aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.Local and web-based monitoringStatus available to customers both in the data center and remotelyAlarm ThresholdsDefine alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.Load indicator LEDIndicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.Wide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.AgilityWide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Rack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
| Design | |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C14 |
| Features | |
| LED indicators | Y |
| Cable length | 1.98 m |
| Management features | |
| Monitoring | Current,Power,Voltage |
| Power | |
| Nominal input voltage | 208-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 10 A |
| Maximum power | 2300 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 444 mm |
| Depth | 102 mm |
| Height | 44 mm |
| Weight | 1730 g |
| Packaging data | |
| Package weight | 2910 g |
| Package width | 470 mm |
| Package depth | 337 mm |
| Package height | 64 mm |
