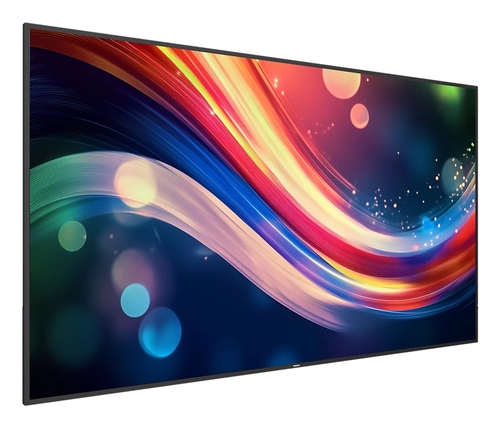

Sharp MultiSync M432 Digital signage flat panel 108 cm (42.5") LCD 550 cd/m² 4K Ultra HD Black
Sharp MultiSync M432, Digital signage flat panel, 108 cm (42.5"), LCD, 3840 x 2160 pixels
Availability:: Arriving soon
Built to perform, designed to lastThe versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
| Display | |
|---|---|
| Panel type | IPS |
| LED backlight | Y |
| LED backlighting type | Direct-LED |
| Display diagonal | 42.5 |
| Display technology | LCD |
| Display resolution | 3840 x 2160 |
| Display brightness | 550 |
| HD type | 4K Ultra HD |
| Touchscreen | N |
| Native aspect ratio | 16:9 |
| Response time | 8 |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.245 x 0.245 |
| Active display area (W x H) | 941.2 x 529.4 |
| Display diagonal (metric) | 108 |
| Horizontal scan range | 15 - 135 |
| Vertical scan range | 23 - 76 |
| Haze rate | 25 |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | N |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| USB port | Y |
| USB ports quantity | 4 |
| USB connector type | USB Type-A,USB Type-C |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Audio | |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 20 |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat screen |
| VESA mounting | Y |
| Panel mounting interface | 300 x 300 |
| Bezel width (bottom) | 13.9 |
| Bezel width (side) | 9.9 |
| Bezel width (top) | 9.9 |
| Performance | |
| Purpose | Universal |
| Power | |
| Power consumption (typical) | 75 |
| Power consumption (standby) | 0.5 |
| Input voltage | 100 - 240 |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 66 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Weight & dimensions | |
| Display width | 965 |
| Display depth | 66.5 |
| Display height | 557.2 |
| Display weight | 13500 |
| Packaging data | |
| Package width | 1070 |
| Package depth | 161 |
| Package height | 675 |
| Package weight | 18000 |
| Packaging content | |
| Remote control included | Y |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage temperature (T-T) | -20 - 60 |
| Storage relative humidity (H-H) | 10 - 80 |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 100 |
| Wi-Fi | N |
