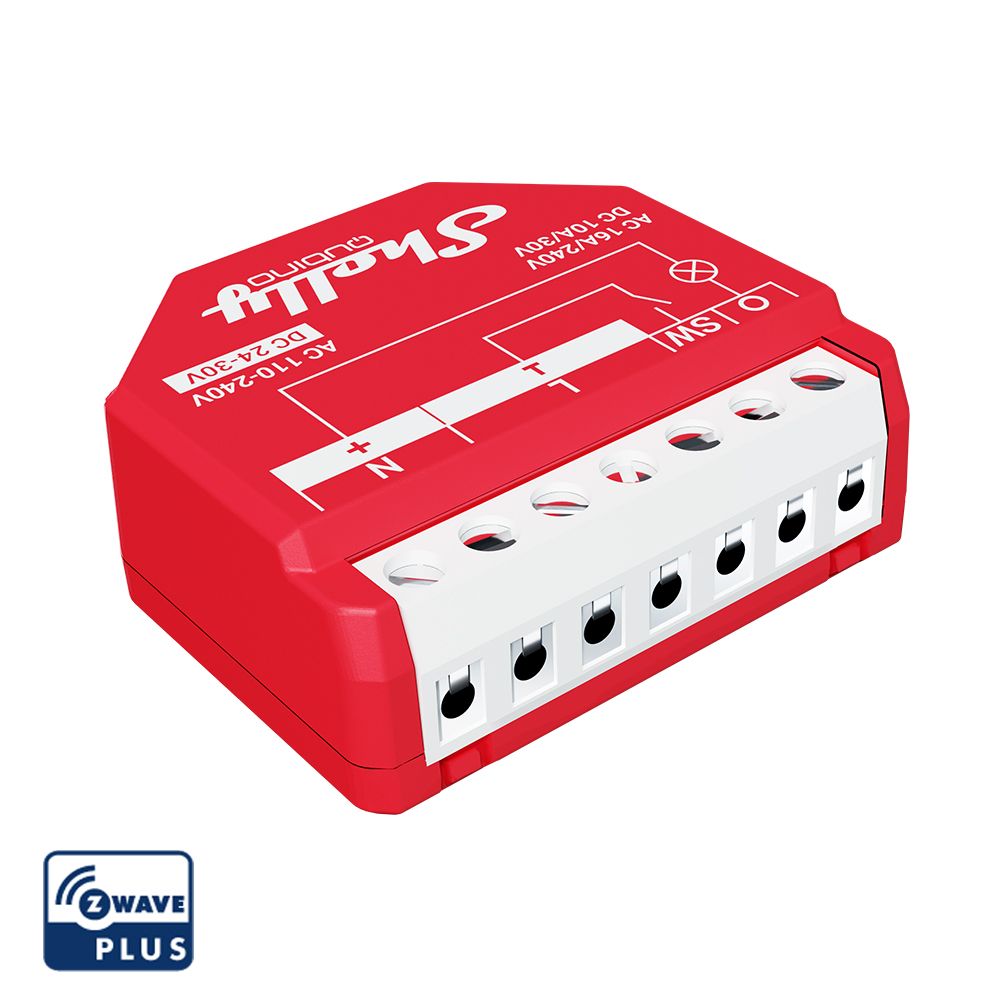

Shelly · Unterputz · "Wave 1PM" · Relais · max. 16A · 1 Kanal · Messfunktion · Z-Wave
Control and measure the power consumption of numerous household and office devices (lighting, power lines, security systems, heaters, water heaters, etc.) from anywhere. A gateway (smart hub) is required to configure the device. *A gateway (smart hub) is not included. *Z-Wave devices have specific r
Availability: In stock
["Control and measure the power consumption of numerous household and office devices (lighting, power lines, security systems, heaters, water heaters, etc.) from anywhere. A gateway (smart hub) is required to configure the device. *A gateway (smart hub) is not included. *Z-Wave devices have specific requirements to function correctly, such as the need to use a supported Z-Wave hub. For more information, please visit the official Z-wave website: www.z-wave.com Wave 1PM is retrofittable and designed to fit behind any switch or outlet, instantly transforming it into a smart outlet. Once installed, you can connect it to your Z-Wave network (Z-Wave gateway required) and control connected devices from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways. Connect the Wave 1PM to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways. Establish direct communication between devices on your local Z-Wave network and set custom actions without the presence of a hub! Wave 1PM provides precise monitoring of power consumption. Support a wide range of voltages Use a wide range of output voltages. Create personalized schedules tailored to your daily routine or sync with sunrise and sunset to control your lighting (gateway required). Set custom scenes by combining the Wave 1PM with other Z-Wave devices (gateway required). Easily automate and control a variety of devices in your home including water heaters, space heaters, lighting, and more! Imagine waking up on a chilly morning in a cozy home because your heaters automatically turn on before you even get out of bed. You can also turn on your water heater remotely, ensuring you have hot water after a long day. Enjoy the comfort, energy efficiency and tailored controls that Shelly Wave 1PM brings to your everyday life. With Wave 1PM's integrated precise power measurement, you can track and control the consumption of your electrical devices and easily save on electricity costs. Optimize energy consumption without sacrificing comfort! Combine Wave 1PM with other devices and create custom scenes based on the time, lighting or different triggers. With a \"Goodnight\" scene, you can easily prepare your home for a peaceful night's sleep without leaving your bed. Turn off lights and media devices, lock doors, and adjust the heat, all with a simple voice command or a tap on your smartphone. Automate your pool system and enjoy fresh, clean water all summer long. The Shelly Wave 1PM allows you to easily plan and monitor the operation of swimming pool equipment. Set up routines for automatic pool pump and filtration system operation to optimize water circulation and keep water clear. Schedule pool lights to turn on automatically when daylight fades and immerse yourself in a more efficient and enjoyable experience!", "Power consumption measurement", "Extremely low internal consumption of the device: 0.3 W", "Z-Wave frequency band: 868.4 MHz (CEPT countries)", "Latest technology: Z-Wave 800 series", "Automatic setup with SmartStart", "2-factor authentication for the highest level of security", "Supports wireless firmware updates", "Easy to install in most standard electrical boxes and switches", "Compatible with Z-Wave certified gateways and over 4,000 Z-Wave devices"]
Specifications
| AC/DC power supply | 110-240 V AC / 24–30 V DC |
| Internal consumption of the device | < 0.3 W |
| Energy measurement | Yes |
| Max. switching voltage AC | 240 V |
| Max. Schaltstrom AC | 16 A |
| Max. switching voltage DC | 30 V |
| Max. Schaltstrom DC | 10 A |
| Overheating protection | Yes |
| Overload protection | Yes |
| Reichweite | Up to 40 m indoors (depending on local conditions) |
| Z-Wave™ repeater | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ Funkfrequenz | 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz |
| Size (H x W x D) | 37x42x16 ±0.5 mm |
| Weight | 27 g. |
| Montage | Unterputzdose |
| Schraubklemmen max. Drehmoment | 0.4 Nm |
| Querschnitt des Leiters | 0.5 to 1.5 mm² |
| Length of stripped conductor | 5 to 6 mm |
| Housing material | Plastik |
| Farbe | Rot |
| Umgebungstemperatur | -20°C to 40°C |
| humidity | 30% to 70% RH |
| Max height | 2000 m |
| Extremely low internal consumption of the device | 0.3 W. |
| Z-Wave-Frequenzband | 868.4 MHz (CEPT countries) |
| Neueste Technologie | Z-Wave 800-Serie |
