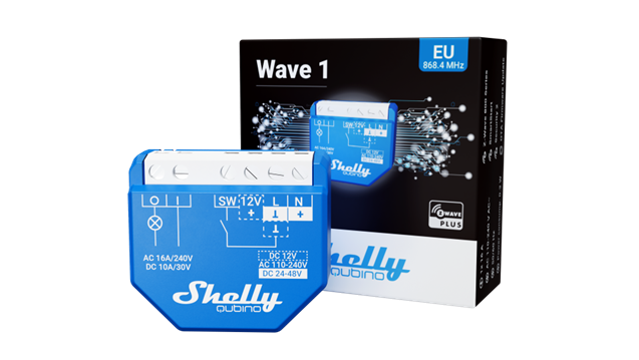

Shelly · Unterputz · "Wave 1" · Relais · max 16A · 1 Kanal · Z-Wave
Control a variety of devices and office equipment such as electric locks, gates, garage doors, irrigation systems, LED strips, lights and sockets from anywhere. The output contact is voltage-free (dry contact), allowing you to connect various power supply loads of up to 16 A to the device. A gateway
Availability: In stock
["Control a variety of devices and office equipment such as electric locks, gates, garage doors, irrigation systems, LED strips, lights and sockets from anywhere. The output contact is voltage-free (dry contact), allowing you to connect various power supply loads of up to 16 A to the device. A gateway (smart hub) is required to configure the device. *A gateway (smart hub) is not included. By using Z-Wave, smart home products can communicate seamlessly with each other thanks to a centralized smart hub, regardless of their brand or platform! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide. Connect the Wave 1PM to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways. Establish direct communication between devices on your local Z-Wave network and set custom actions without the presence of a hub! Connect various power supply loads (up to 16A) to the device. Support a wide range of voltages Use a wide range of output voltages, even for low voltages. Create personalized schedules tailored to your daily routine or sync with sunrise and sunset to control your lighting (gateway required). Set custom scenes by combining the Wave 1PM with other Z-Wave devices (gateway required). Make any light switch smart with Shelly Wave 1 and control it from your phone or with a voice assistant. Use your hub's app to set automatic scenes based on an hour or sunset/sunrise. So you can set the porch light to turn on when you get home from work, or the hallway light to turn off when it's past your family's bedtime. And don't worry - light switches can still be operated manually to meet the needs of everyone in your home. Configure Wave 1 and other devices on your Z-Wave network and create associations between them for direct communication without a gateway. Automate your door lock and lighting and set a rule: Whenever the front door is unlocked, the lobby/hallway lights turn on. With an automatic irrigation system, you can effortlessly control your garden's watering with a tap on your smartphone, even when you're on vacation. Simply set a schedule and the sprinklers will turn on and off automatically. Yes, it's that simple. Did you close the garage door after you left your house? From now on you can easily check this using your smartphone. Wave 1 has operating voltages of 12 V DC and 24-48 V DC, making it perfect for controlling garage doors", "Dry contact", "Extremely low internal consumption of the device: 0.3 W", "Latest technology: Z-Wave 800 series", "Z-Wave frequency band: 868.4 MHz (CEPT countries)", "Automatic setup with SmartStart", "2-factor authentication for the highest level of security", "Supports over-the-air firmware updates (OTA)", "Compatible with Z-Wave certified gateways and over 4,000 Z-Wave devices"]
Specifications
| Power supply | 110-240 V AC / 24-48 V DC / 12 V DC ± 10% |
| Internal consumption of the device | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. Schaltstrom AC | 16 A |
| Max. Schaltspannug DC | 30 V |
| Max. Schaltstrom DC | 10 A |
| Overload protection | Yes |
| Reichweite | Up to 40 m indoors (depending on local conditions) |
| Z-Wave™ repeater | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ Funkfrequenz | 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz |
| Size (H x W x D) | 37x42x16 ±0.5 mm |
| Weight | 26 g |
| Montage | Unterputzdose |
| Schraubklemmen max. Drehmoment | 0.4 Nm / 3.5 lbin |
| Length of stripped conductor | 5 to 6 mm / 0.20 to 0.24 in |
| Housing material | Plastik |
| Farbe | Blau |
| Umgebungstemperatur | -20°C to 40°C |
| humidity | 30% to 70% RH |
| Max height | 2000 m |
| Extremely low internal consumption of the device | 0.3 W. |
| Neueste Technologie | Z-Wave 800-Serie |
| Z-Wave-Frequenzband | 868.4 MHz (CEPT countries) |
