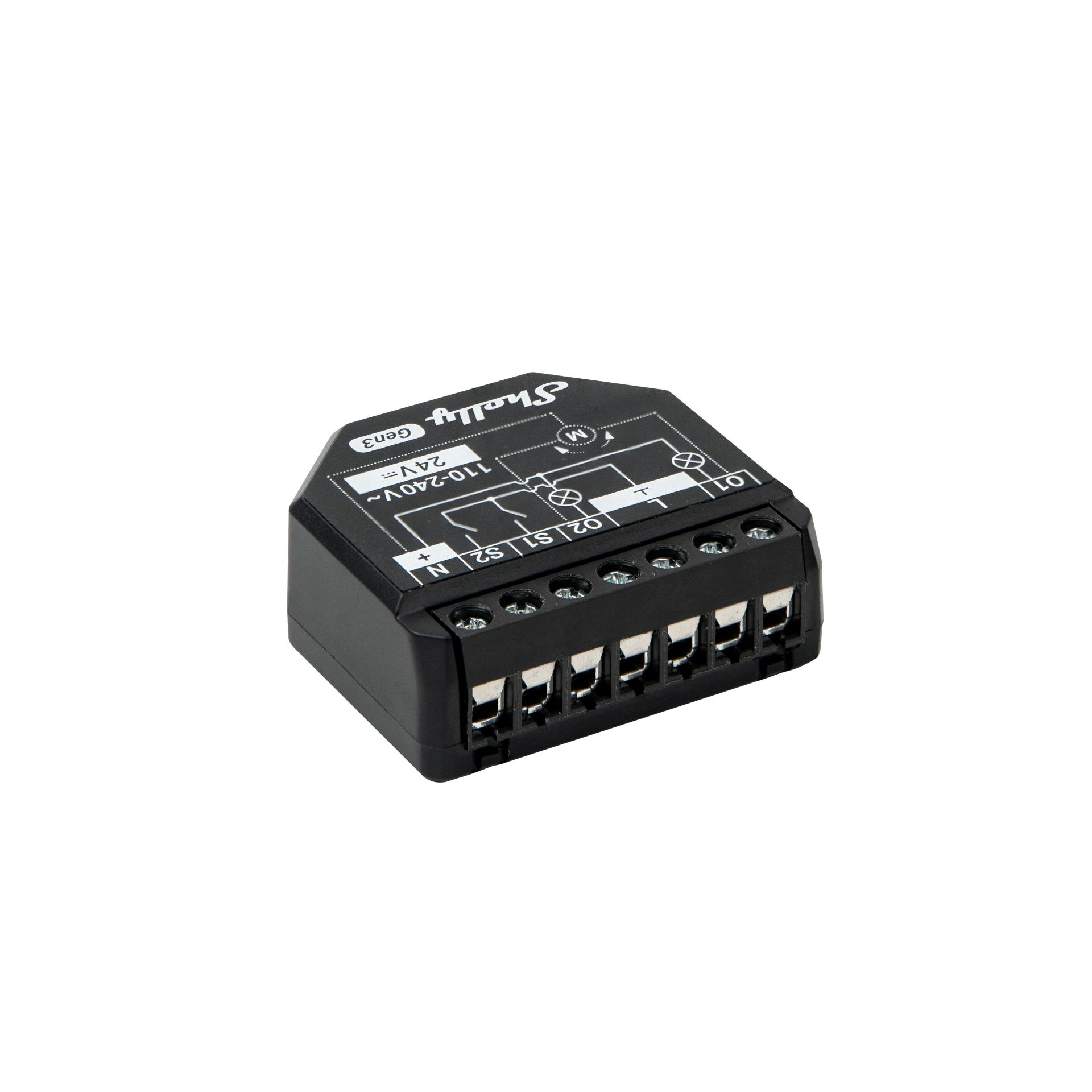

Shelly · Flush-mounted · "2PM Gen3" · Relay · max 16A · 2 channel · WLAN · BT
The Shelly 2PM Gen3 is a smart switch with dual channel control, power measurement and coverage control. You can remotely control and monitor two different circuits or shutters, blinds and other bi-directional motors. Perfect for retrofitting standard electrical sockets, sockets and light switches -
Availability: In stock
["The Shelly 2PM Gen3 is a smart switch with dual channel control, power measurement and coverage control. You can remotely control and monitor two different circuits or shutters, blinds and other bi-directional motors. Perfect for retrofitting standard electrical sockets, sockets and light switches - even in tight spaces. Connect the Shelly 2PM Gen3 to your WiFi network. No HUB required! Quick integration via Bluetooth or use as a Bluetooth gateway. Two integrated precise energy meters allow you to monitor the consumption of each channel. Use it with your blinds and control the tilt position of the slats to adjust how much light shines into a room. Set custom schedules based on your daily routine or control your lighting based on sunrise or sunset. Combine the Shelly 2PM Gen3 with others Set the Shelly 2PM Gen3 to open your bedroom curtains at a specific time each morning with “schedules”. When you wake up, the curtains gradually open so that you are gently woken up and have the perfect start to the day. The Shelly 2PM Gen3 allows you to control and monitor two different lights on the same phase with just one device. The power consumption of each light is recorded separately for more efficient lighting. Use the manual switch, the app, your favorite smart home system or your voice! Take control of your energy consumption with power metering for each channel. Monitor and analyze the consumption of connected devices in real time and use this data to make informed decisions to reduce your energy costs. Connect the Shelly 2PM Gen3 to your blinds for an energy efficient home. Automatically adjust to the time of day or weather conditions. For example, make sure they close on hot days to keep your rooms cool. In the morning, however, the blinds are raised - this way you let in natural light and need less artificial lighting", "Two channels on the same phase", "Power measurement on each channel", "Roller Shutter Control – Automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors and other bi-directional motors", "Slat Angle Control – Use the switch on your blinds and control the tilt position (angle) of the slats to adjust how much light shines into a room", "New processor - ESP Shelly C38F chip with increased memory capacity of 8MB", "Improved clamp durability", "Virtual components", "WiFi repeater & Bluetooth gateway", "Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates", "No HUB required! Einfache Steuerung über die Shelly Smart Control App, verschiedene Hausautomatisierungsprotokolle, Plattformen und Sprachassistenten", "Supports KNXnet/IP communication"]
Specifications
| Bus system KNX | EV000415 (Screw connection) |
| Size (H x W x D) | 37 x 42 x 16 mm /1,46 x 1,65 x 0,63 Zoll |
| Weight | 27 g |
| Schraubklemmen max. Drehmoment | 0,4Nm / 3,5 lbin |
| Querschnitt des Leiters | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and wire end sleeves) |
| Stripping length of the conductor | 6 bis 7 mm / 0,24 bis 0,28 Zoll |
| Montage | Unterputzdose |
| Case material | Kunststoff |
| Color of the case | Black environment |
| Umgebungstemperatur | -20 °C bis 40 °C |
| humidity | 30% to 70% relative humidity |
| Max. height above sea level | 2000 m |
| Eigenverbrauch | < 1,4 W |
| Voltmeter (AC) | Yes |
| Amperemeter (AC) | Yes |
| Overheating protection | Yes (AC) |
| Surge protection | Yes (AC) |
| Overcurrent protection | Yes (AC) |
| Overload protection | Yes |
| Obstacle detection | Yes (Jalousienmodus) |
| Sicherheitsschalter | Yes (Jalousienmodus) |
| Protokoll | 802.11 b/g/n |
| Frequenzband | 2400 - 2495 ?Hz |
| Max. RF power | < 20 dBm |
| Reichweite | Up to 50 m outdoors, up to 30 m indoors (depending on local conditions) |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Schedules | 20 |
| WebHooks (URL-Aktionen) | 20 with five URLs per hook |
| WLAN-Repeater | Yes |
| BLE-Gateway | Yes |
| Skripting | Yes |
| MQTT | Yes |
| Encryption | Yes |
