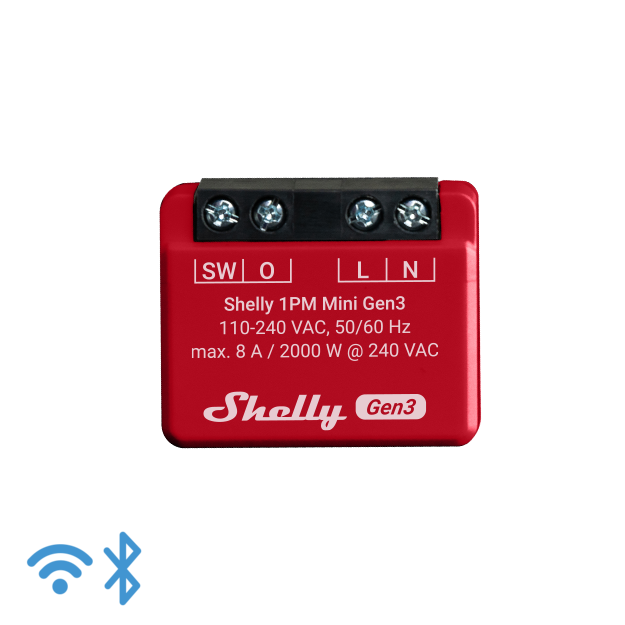

Shelly · Flush-mounted · "1PM Mini Gen. 3" · Relay · max 8A · 1 channel · Measuring function · WLAN · BT
The world's smallest switching relay for intelligent control and precise current monitoring. Automate your lighting or small electrical appliances in less than 10 minutes and control and monitor them from anywhere. Small enough to fit behind any wall switch or outlet, Shelly 1PM Mini Gen3 is retrofi
Availability: In stock
["The world's smallest switching relay for intelligent control and precise current monitoring. Automate your lighting or small electrical appliances in less than 10 minutes and control and monitor them from anywhere. Small enough to fit behind any wall switch or outlet, Shelly 1PM Mini Gen3 is retrofittable and highly compatible with your existing smart ecosystem. Designed with ease of use in mind, these mini relays include all the features of traditional switches in a compact and space-saving design. Equipped with our powerful Shelly chip with 8MB memory, the efficiency and responsiveness of the device are significantly improved, ensuring smooth and fast operation. Despite their small size, the Shelly Mini Gen3 devices do not compromise on performance and functionality. Shelly Mini Gen3 devices open up a world of possibilities because they can be seamlessly integrated into even the tightest spaces and control boxes. Connect Shelly 1PM Mini Gen3 to your WiFi network. No HUB required! Quickly and easily add devices via Bluetooth or use it as a Bluetooth gateway. Allows you to accurately monitor power consumption and help you save. Set custom schedules based on your daily agenda or follow sunrise/sunset and control your lighting accordingly. Set custom scenes by combining Shelly 1PM Mini Gen3 with your other Shelly devices. Shelly 1PM Mini Gen3 supports mjS scripts that allow you to create custom features and functionality. Designed to measure device power consumption up to 8A, the Shelly 1PM Mini Gen3 is perfect for monitoring smaller devices including consumer electronics, fans, lighting fixtures and kitchen appliances. By monitoring power usage, you can control energy usage and make informed adjustments to reduce electricity costs. Shelly 1PM Mini Gen3 offers free data storage and allows access to historical data for analysis and comparison, which can also help you identify devices that are consuming too much power or operating unnecessarily. Transform old electrical appliances such as small heaters or kitchen gadgets into smart devices with Shelly 1PM Mini Gen3. It provides precise power monitoring that allows you to track energy consumption in real time and allows you to control devices remotely no matter where you are. You can mount it behind your power outlet or even inside the device's housing. Create custom schedules for your devices based on your daily routine to save energy and set smart scenes to be prepared for any unexpected events in your home! Make every small electrical device smart", "Equipped with a new processor and larger flash memory - ESP Shelly", "Improved terminal stability", "Supports up to 8A at 240VAC", "Accurate and real-time electricity measurement with free cloud data storage to analyze and optimize energy consumption", "WiFi range extender & Bluetooth gateway", "No Hub required! Einfache Steuerung über die Shelly Smart Control App, die meisten Plattformen und Protocole sowie über Sprachassistenten. Use it with Alexa, Home Assistant or your preferred automation platform", "Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates"]
Specifications
| Bus system KNX | EV000415 (Screw connection) |
| Size (HxWxD) | 29x34x16 ±0.5 mm |
| Weight | 18 ±1 g |
| Montage | Wandmontage |
| Schraubklemmen max. Drehmoment | 0.4 Nm / 3.5 lbin |
| Querschnitt des Leiters | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Length of stripped conductor | 5 to 6 mm / 0.20 to 0.24 in |
| Housing material | Plastik |
| Farbe | Rot |
| Umgebungstemperatur | -20 °C bis 40 °C |
| humidity | 30 % bis 70 % RH |
| Max height | 2000 m |
| Power supply | 110 - 240 VAC / 24 - 30 VDC |
| Relay | NO contact, 1-pole, µ contact |
| Externer Schutz | 10 A, tripping characteristic B or C, |
| Internal consumption of the device | <1.2 W |
| Max. switching voltage AC | 240 V |
| Max. switching voltage DC | N/A |
| Max. Schaltstrom AC | 8A |
| Max. Schaltstrom DC | N/A |
| Max. switching capacity AC | 2000 W |
| RF band | 2400 - 2495 MHz |
| Max. RF power | <20 dBm |
| WLAN Protokoll | 802.11 b/g/n |
| WLAN Reichweite | Up to 30m indoors and 50m outdoors |
| Bluetooth Protokoll | 4,2 |
| Bluetooth Reichweie | Up to 10m indoors and 30m outdoors |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL Aktionen) | 20 mit 5 URLs pro hook |
| MQTT | Yes |
| UPD | Yes |
| Scripting | Yes |
