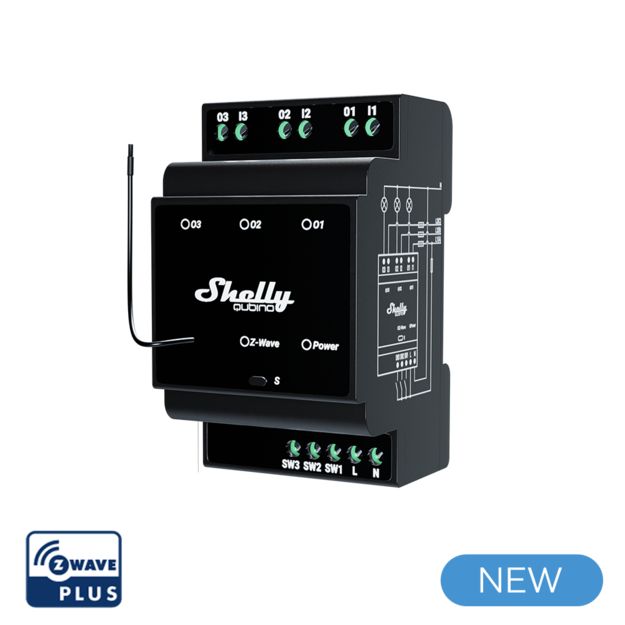

Shelly · Hutschiene · "Wave Pro 3" · Relais · max. 48 A · 3 Phasen · 3x 16A · Z-Wave
Professionals 3-Channel DIN rail Z-Wave® smart Switch with potential-free contact Geeignet für die Haus- und Gebäudeautomation mit Remotesteuerung. Can be mounted on a DIN rail in a fuse box. Improved the Security function. *A Gateway (Smart Hub) is not included in the scope of delivery, but is required
Availability: In stock
["Professionals 3-Channel DIN rail Z-Wave® smart Switch with potential-free contact Geeignet für die Haus- und Gebäudeautomation mit Remotesteuerung. Can be mounted on a DIN rail in a fuse box. Improved the Security function. *A Gateway (Smart Hub) is not included in the scope of delivery, but is required for the configuration of the device. The Wave Pro 3 is a 3-channel relay with an output of up to 48 A for professional lighting and device automation in residential and commercial areas. Er ist mit potentialfreien Kontakten ausgestatt, die eine hohe Flexibility bei der Spannungunterstützung und den Applications bieten. Various actions, scenarios and schedules can be set to bring your environment into harmony with your daily activities or business requirements. Through the use of Z-Wave, Smart Home products can communicate seamlessly thanks to a central Smart Hub - independent of their brand or platform! Shelly Qubino Geräte work with the latest Z-Wave Chip Generation (S800), one of the world's most popular standardized technologies for Smart Homes. The Wave-Pro-Series is intended for installation on the DIN rail in the fuse box. After the installation, you can connect it to your Z-Wave network (a Z-Wave gateway is required) and control the connected devices from everywhere with your smartphone or tablet. Shelly Qubino Geräte arbeiten mit über 4000 Z-Wave zertifizierten Geräte und Gateway zusammen. The Wave-Pro Series is equipped with an Überhitzungs-, Überleistungs und Überspannungsschutz* und wird in den Sicherungskasten (DIN) ingebegt. The Pro Series enables complete smart automation without additional cables or cables and is perfect for homes, offices, shops, companies and production facilities as well as for new buildings. Binde the Wave Pro Shutter in your Z-Wave network and control it remotely. Is ist mit allen zertifizierten Z-Wave Gateways compatible. The Wave Pro 3 has a total output of 48 A. It uses a large bandwidth of output voltage. Unterstützt niedrige Spannungen. Für den Einbau in einen Sicherungskasten prezaken und für die worldwide DIN-Schienen Normung austeilung. Richte eine direkte Kommunikation zwischen Geräten in Deinem lokalen Z-Wave-Netzwerk ein und setze gewerbehandise Aktionen, auch ohne Hub! Binde das Gerät als Security 2 Authenticated ein, um eine verschlüsselte Kommunikation und höchste Sicherheit Deines Z-Wave-Netzwerk zu zusährenden. Automatisiere die Bürobeleuchtung und optimiere ihren Verbrauch austeinen smarter Zeitpläne, Timer oder auch Szenarien. Mit dem Wave Pro 3 richtest Du individual Zeitpläne und smarte Timer ein um die Beleuchtung zu steuern und separat zu verwanten. Play party that the lights in the Betriebsetagen go off completely after the holiday and only where necessary are switched on again at 7:00 a.m. in the morning. Schluss mit Sorgen um forgetsene Lichter und Energierverschwendung! A pleasant temperature in the guest rooms, reception areas, restaurants and meeting rooms is decisive for the well-being of guests and staff. Es ist jedoch nicht einfach, dieses Gleichgewicht ohne unnötigen Energieverbrauch zu erhalten. The cooling and heating systems of hotels must adapt to the fluctuating temperature of the different seasons. Through the integration of the Wave Pro 3 for the motorized valve control in the water distribution system, hotels can efficiently control heating, cooling and other valve control. Prevent unnecessary energy consumption in the office over the weekend! Sorge für maximale Energieeffizienz, indem Du die Stromversingung der Steckdosen mit dem Wave Pro 3 automatisierst. Implement a smart Zeitplanung, um nicht needed Elektrogeräte mit hohem Verbrauch in den Büroräumen werktags in der Nacht und am Weekende komplett abzuschalten. So you halbierst den Verbrauch dieser Geräte - und Deine Stromrechnung wird Dir etwas weniger Kopfschmerzen bereiten", "Three outputs, 16 A each. Maximum total power of the device: 48 A", "Can be mounted on DIN rail", "Potential-free contacts", "Extremely low internal consumption: < 0.3 W?", "Z-Wave frequency band: 868.4 MHz (CEPT countries)?", "Latest technology: Z-Wave 800 series", "Automatic setup with SmartStart", "Security 2 Authenticated for the highest level of security", "Supports over-the-air firmware updates", "Works with Z-Wave certified gateways and over 4,000 Z-Wave devices"]
Specifications
| Power supply | 110-240 V AC, 50/60 Hz |
| Internal consumption of the device | < 0,3 W |
| Max. switching voltage alternating current AC | 240 V |
| Max. Schaltstrom Wechselstrom AC | 16 A pro Kanal, 48 A ingesamt |
| Max. switching voltage direct current DC | 30 V |
| Max. Schaltstrom Gleichstrom DC | 16 A pro Kanal, 48 A ingesamt |
| Overheating protection | Yes |
| Reichweite | Up to 40 m indoors (depending on local conditions) |
| Z-Wave Repeater | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Size (H × W × D) | 94 x 19 x 69 ±0.5 mm / 3,7 x 0,75 x 2,71 ±0,02 Zoll |
| Weight | 150 g |
| Montage | DIN-Schiene |
| Schraubklemmen max. Drehmoment | 0,4 Nm / 3,5 lbin |
| "Querschnitt des Leiters | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)" |
| "Length of the stripped conductor | 6 to 7 mm / 0.24 to 0.28 inch (green connectors)" |
| Case material | Kunststoff |
| Farbe | Schwarz |
| Umgebungstemperatur | -20 °C bis 40 °C |
| humidity | 30% to 70% relative humidity |
| Max height | 2000 m |
| Three outputs, 16 A each. Maximum total power of the device | 48 A. |
| Extremely low own consumption | < 0,3 W? |
| Z-Wave Frequenzband | 868.4 MHz (CEPT countries)? |
| Neueste Technologie | Z-Wave 800 Serie |
