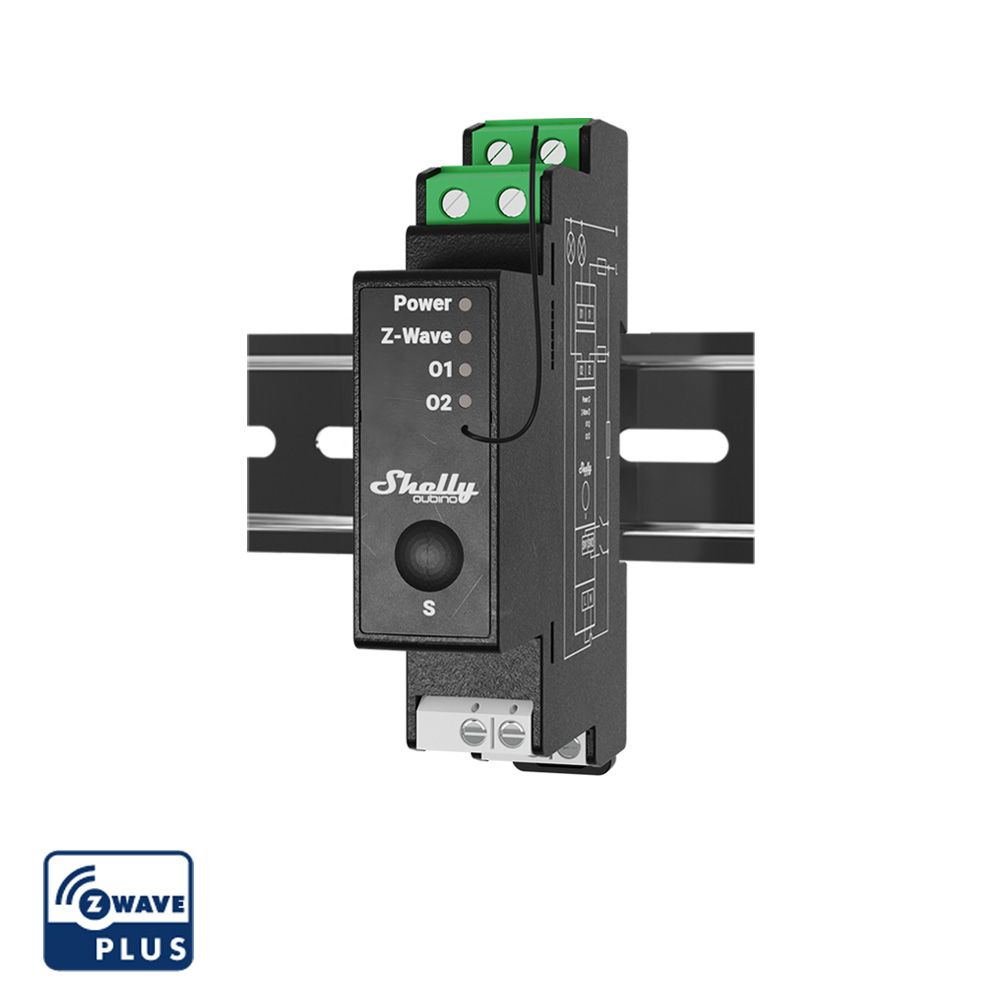

Shelly · Hutschiene · "Wave Pro 2PM" · Relais · max. 25A · 1 Phase · 2x 16A · Messfunktion · Z-Wave
Suitable for home and building automation with remote control. DIN rail mounting in a circuit breaker box. Advanced security features. A Gateway (Smart Hub) is not included in the scope of delivery. A Gateway (Smart Hub) is required for the configuration of the device
Availability: In stock
["Geeignet für die Haus- und Gebäudeautomation mit Fernbedienung. DIN rail mounting in einem Leistungsschalterkasten. Erweiterte Sicherheitsfunktionen. A Gateway (Smart Hub) is not included in the scope of delivery. A Gateway (Smart Hub) is required for the configuration of the device", "2 outputs, 16 A each. Total device maximum 25 A", "Power measurement on each channel individually and together", "DIN rail mounting possible", "1-phase control", "Extremely low power consumption: <0.3W", "Z-Wave frequency band: 868.4 MHz (CEPT countries)", "Latest technology: Z-Wave 800 series", "Automatic setup with SmartStart", "Security 2 Authenticated for maximum security", "Over-the-air firmware updates", "Works with Z-Wave certified gateways and over 4,000 Z-Wave devices"]
Specifications
| Power supply | 110–240 V Wechselstrom, 50/60 Hz |
| Energieverbrauch | < 0,3 W |
| Power measurement (W) | Yes |
| Max. switching voltage AC | 240 V |
| Max. Schaltstrom AC | 16 A pro Kanal, 25 A insgesamt |
| Max. switching voltage DC | N / A |
| Max. Schaltstrom DC | N / A |
| Overheating protection | Yes |
| Surge protection | Yes |
| Distanz | Up to 40 m indoors (depending on local conditions) |
| Z-Wave-Repeater | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave frequency bands | 868,4 MHz |
| Maximum transmitted radio frequency power in frequency bands | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0,5 mm / 3,70x0,75x2,71 ±0,02 Zoll |
| Weight | 75 g / 2,65 oz. |
| Montage | DIN-Schiene |
| Schraubklemmen max. Drehmoment | 0,4 Nm / 3,54 Pfund |
| Leiterquerschnitt | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) |
| Length of stripped conductor | 6 to 7 mm² / 0.24 to 0.28 inch (green connectors) 5 to 6 mm / 0.20 to 0.24 inch (white connectors) |
| Schalenmaterial | Plastik |
| Farbe | Schwarz |
| Umgebungstemperatur | -20 °C bis 40 °C / -5 °F bis 105 °F |
| moisture | 30% to 70% relative humidity |
| Max height | 2000 m / 6562 feet. |
| Extrem geringer Stromverbrauch | < 0,3 W |
| Z-Wave-Frequenzband | 868.4 MHz (CEPT countries). |
| Neueste Technologie | Z-Wave 800-Serie |
