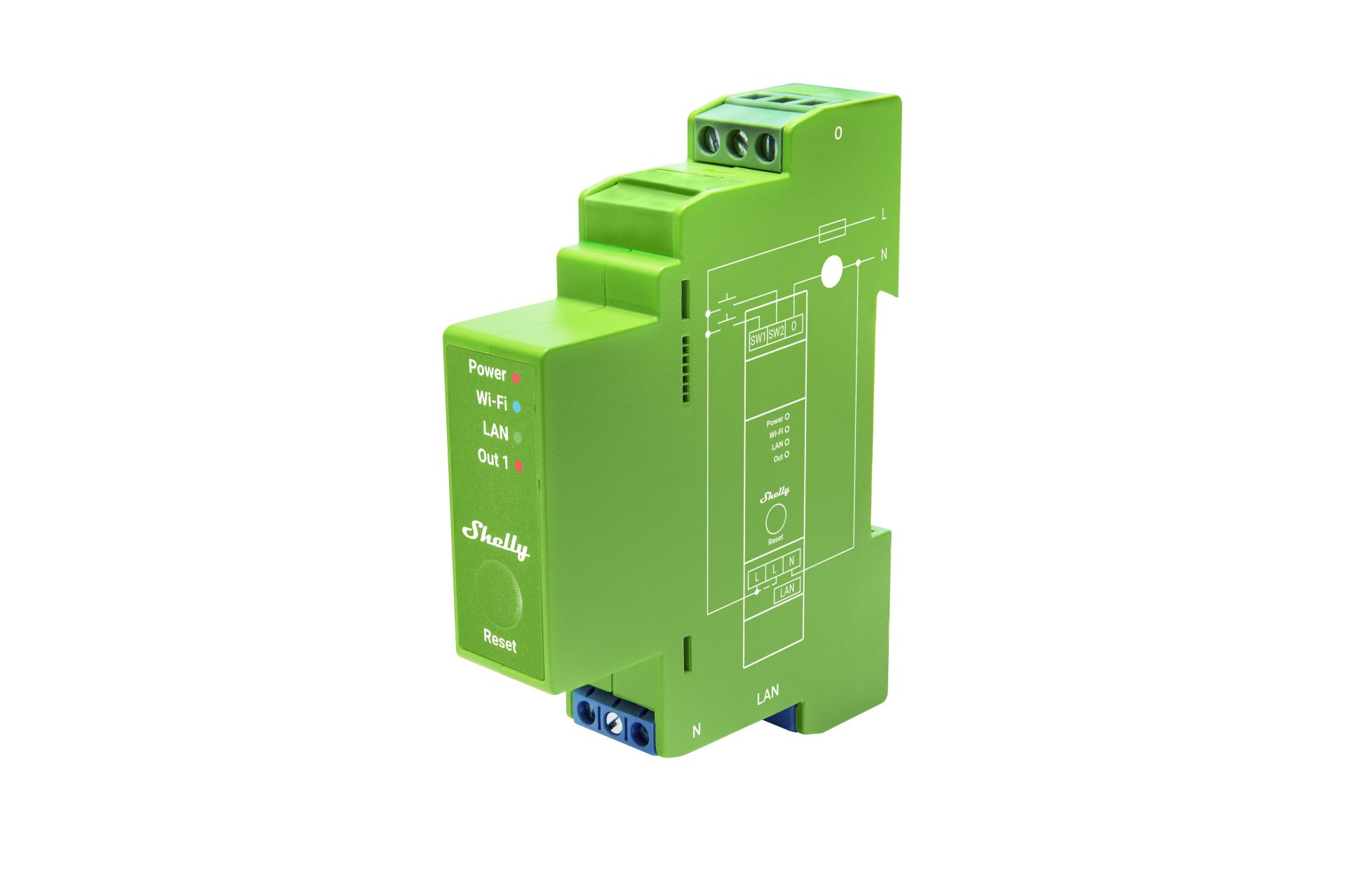

Shelly · DIN rail · "Pro Dimmer 1PM" · LEDs & light bulbs · 1 channel · Measuring function · WLAN · LAN · BT
Shelly Pro Dimmer 1PM is a DIN rail mountable, single channel intelligent dimmer with power monitoring. Use it to control, dim and power measure a wide range of halogen lamps, dimmable LEDs and ferromagnetic transformers between 110-240V. Different types of actions, scenarios and schedules can be se
Availability: In stock
["Shelly Pro Dimmer 1PM is a DIN rail mountable, single channel intelligent dimmer with power monitoring. Use it to control, dim and power measure a wide range of halogen lamps, dimmable LEDs and ferromagnetic transformers between 110-240V. Different types of actions, scenarios and schedules can be set to adapt your lighting environment to your daily activities or business needs", "LAN, WLAN and Bluetooth connection", "Performance measurement and free storage data", "Night mode for lower brightness during night hours", "Automatic calibration of dimming type and load", "Multiple dimming modes for different types of bulbs - leading and trailing edge", "Switch/button input mode", "Use with your existing switches (single/dual button control)", "Adjustable minimum/maximum brightness", "Adjustable button fade rate and transition time", "No Hub required! Einfache Steuerung über die Shelly Smart Control-App, die meisten Plattformen und Protokolle sowie Sprachassistenten. Use it with Alexa, Home Assistant or your preferred automation platform", "Wi-Fi range extender and BLE gateway", "Extremely fast processor for instant response - ESP32", "Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates"]
Specifications
| Common uses | Dimming, performance monitoring |
| HV-LED-Lampen (dimmbar) | 200 W |
| Dimmable electronic transformers | 180 W |
| HV-LED-Lampen (nicht dimmbar) | 110 W (Ein/Aus-Modus) |
| Light bulbs | 200 W |
| HV-Halogenlampe | 200 W |
| Gewickelter Transformator | 200 VA |
| CFL | 50 W |
| Abmessungen (LxBxH) | 94 x 19 x 69 mm / 3,70 x 0,75 x 2,71 Zoll |
| Weight | 75 g / 2,7 oz |
| Umgebungstemperatur | -20 °C bis 40 °C / -4 °F bis 104 °F |
| moisture | 30% to 70% relative humidity |
| Max height | 2000 m / 6562 feet |
| Maximales Drehmoment der Schraubklemmen | 0,4 Nm / 3,5 Pfund |
| Leiterquerschnitt | 0.5 to 2.5 mm2 / 20 to 14 AWG (green connectors)0.5 to 1.5 mm2 / 20 to 16 AWG (blue connector) (solid, stranded and ferrules) |
| Length of stripped conductor | 6 to 7 mm / 0.24 to 0.28 inch (green connectors) 5 to 6 mm / 0.20 to 0.24 inch (blue connector) |
| Power supply | 110-240 V~ 50/60 Hz |
| Energieverbrauch | < 2 W |
| External protection | max. 10 A, tripping characteristic B or C, |
| Max. output power | 200 W |
| Dimmtyp | Vorderkante, Hinterkante |
| Supported loads | Glowing |
| HF-Band | 2400 - 2495 MHz |
| Max. RF power | < 20 dBm |
| Wi-Fi-Protokoll | 802.11 b/g/n |
| WiFi range (depending on local conditions) | bis zu 50 m / 160 ft im Freien, bis zu 30 m / 100 ft im Innenbereich |
| Bluetooth-Protokoll | 4.2 |
| CPU | ESP32-D0WDQ6 |
| Blitz | 8 MB |
| Schedules | 20 |
| Webhooks (URL-Aktionen) | 20 mit 5 URLs pro Hook |
| Scripting | Yes |
| MQTT | Yes |
