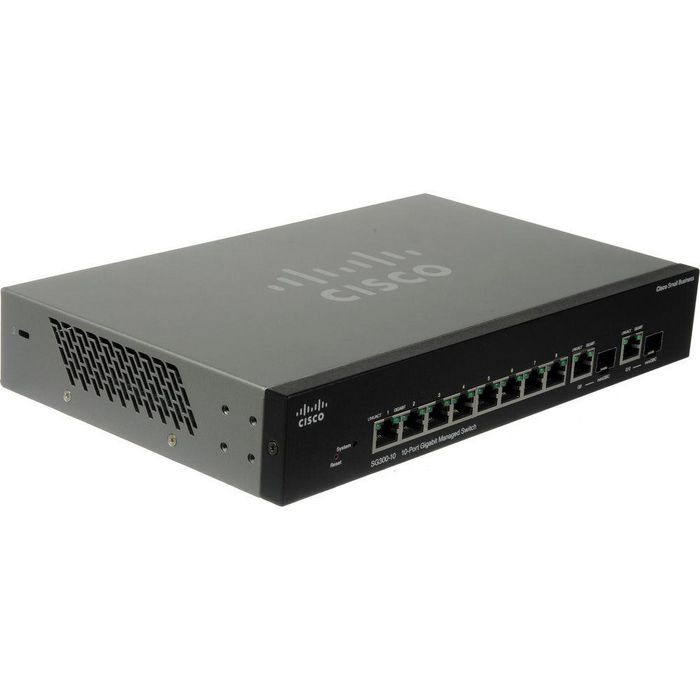

Cisco SB SG300-10, 8x RJ-45 10/100/1000 Mbit/s, 2x mini-GBIC (Combo SFP), IPv6, QoS
The Cisco SG300-10 switch is an affordable, compact 10-port managed Gigabit (10/100/1000) switch, including two combination mini-GBIC ports, that delivers the performance needed to support high-bandwidth applications. It offers the security and advanced network features needed to support business-class data, voice, security, and wireless solutions. With energy-saving technology, it optimizes power use to help protect the environment and reduce energy costs without compromising performance. The switch is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next business day advance replacement and one year of technical support. The Cisco SG300-10 provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for small businesses
Availability: In stock
The Cisco SG300-10 switch is an affordable, compact 10-port managed Gigabit (10/100/1000) switch, including two combination mini-GBIC ports, that delivers the performance needed to support high-bandwidth applications. It offers the security and advanced network features needed to support business-class data, voice, security, and wireless solutions. With energy-saving technology, it optimizes power use to help protect the environment and reduce energy costs without compromising performance. The switch is easy to configure and manage with intuitive browser-based tools and is offered with a limited lifetime warranty, including next business day advance replacement and one year of technical support. The Cisco SG300-10 provides the ideal combination of affordability, performance, and capabilities in a switch designed specifically for small businesses
Specifications
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC 15 (CFR 47) |
| MAC address table | 16384 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 20 Gbit/s |
| LED indicators | Yes |
| Product colour | Black |
| Stackable | No |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| 10G support | No |
| IP routing | Yes |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Routing entries | 32 |
| Spanning tree protocol | Yes |
| Heat dissipation | 35,25 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Authentication method | RADIUS, MD5 |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Non-operating relative humidity (non-condensing) | 10 - 90 % |
| Wi-Fi | No |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 74294 h |
| Minimum system requirements | Mozilla Firefox 2.5, Microsoft Internet Explorer 6 |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP/SFP+ slots quantity | 2 |
| Power consumption (typical) | 10,33 W |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Management protocols | SNMP 1/2c/3, RMON, HTTP/HTTPS, TFTP, DHCP, SSH, RADIUS, BOOTP, SNTP |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Brand Name | Cisco SB |
| Homepage | http://www.cisco.com |
