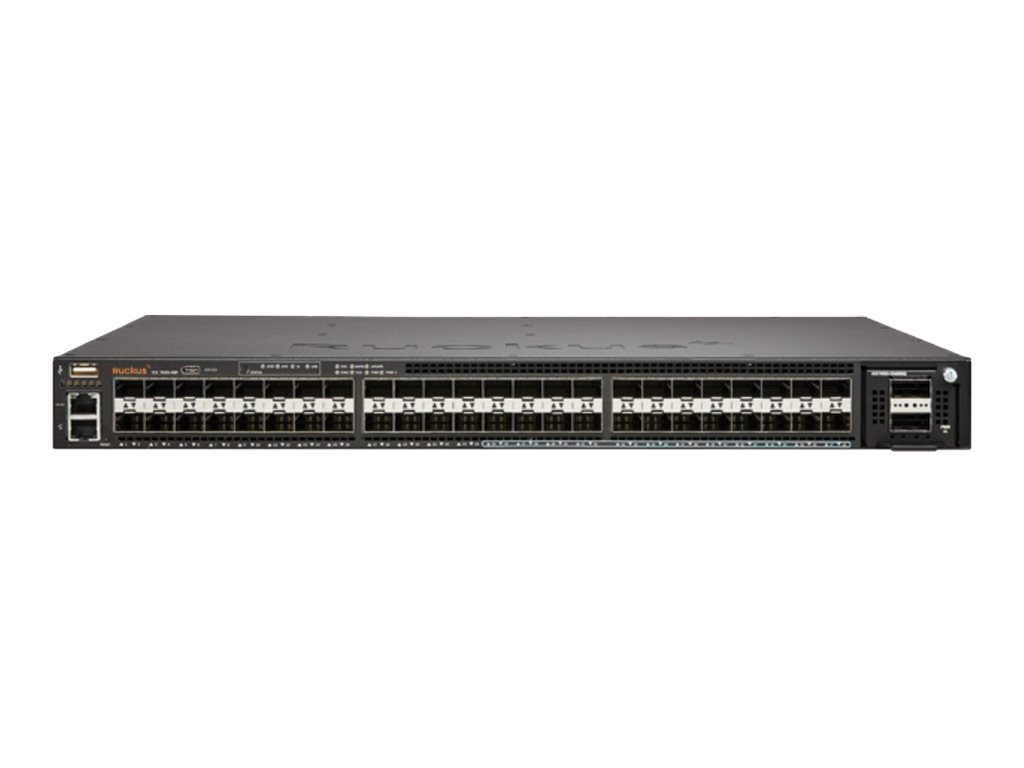

Ruckus ICX 7650-48F Switch 48-porte Gigabit
€5989,04
Ruckus ICX 7650-48F - Switch - Administreret - 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP - front til ryg-luftstrøm - monterbar på stativ
Availability: In stock
Secure payment · Fast delivery
EAN:1000457096Brand:
Ruckus ICX 7650-48F - Switch - Administreret - 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP - front til ryg-luftstrøm - monterbar på stativ
Specifications
Specifications
| Produktbeskrivelse | Ruckus ICX 7650-48F - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - Administreret - kan stables |
| Pakningstype | Front til ryg-luftstrøm monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP |
| Præstation | Omkoblingskapacitet: 1,128 Tbps<br>Videresendelseskapacitet: 839 Mpps<br>Samlet stablingsbåndbredde: 2,4 Tbps |
| Kapacitet | VLANs understøttet: 4095<br>PVLAN-understøttet: 256<br>IPv4 router: 128000<br>IPv6 router: 7000<br>Næste hopadresse: 12000<br>Porte pr. trunk-gruppe: 16<br>Trunk-grupper: 256<br>Multicast-grupper: 8192<br>QoS-køer: 10<br>Virtual Routing and Forwarding (VRF) instanser: 50 |
| MAC adresse table størrelse | 80K indtastningshukommelse |
| Jumborammesupport | 9216 byte |
| Routingprotokol | BGP-4, RIP-1, RIP-2, OSPFv2, OSPF for IPv6, GRE, OSPFv3, MSDP, VRRPE, statisk IPv4 routing, statisk IPv6 routing, ECMP, police-baseret routing (PBR), RIPng, BGP-4+, VRRPv3, BGP for IPv6 |
| Protokol til fjernadministration | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
| Egenskaber | VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, portspejling, DiffServ understøttet, MAC-adresse-filtrering, LFS, MRP support, sFlow, PVST, PIM-SM snooping, RFN, VSRP support, VCT-teknologi, MSTP support, proritets-baseret flow kontrol, DHCP snooping, MDL snooping, DAI, PVST+, UDLD, PVRST, NTP tidssynkronisering, CoS, SP, IGMP proxy, 802.1x autentificering, GVRP, SCP, Root Guard, IGMP hurtigafgang, ERSPAN, WRR, tilbageløkke-detektion, 5 MB pakkebuffer |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.3bt |
| Effekt | AC 120/230 V (50/60 Hz) |
| Overskudsspænding | Valgfri |
| Dimensioner (B x D x H) | 44 cm x 40.6 cm x 4.4 cm |
| Vægt | 7.6 kg |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity | VLANs supported: 4095 | PVLANs supported: 256 | IPv4 routes: 128000 | IPv6 routes: 7000 | Next hop address: 12000 | Ports per trunk group: 16 | Trunk groups: 256 | Multicast groups: 8192 | QoS queues: 10 | Virtual Routing and Forwarding (VRF) instanc |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-07, WEEE, RoHS, EN 61000-6-3, EN 60825-1, VC |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, MAC address filtering, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Per-VLAN Spanning Tree (PVST), PIM-SM snooping, Remote Fault Not |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 80K entries |
| Performance | Switching capacity: 1.128 Tbps | Forwarding capacity: 839 Mpps | Aggregate stacking bandwidth: 2.4 Tbps |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP |
| RAM | 4 GB |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
| Routing Protocol | BGP-4, RIP-1, RIP-2, OSPFv2, OSPF for IPv6, GRE, OSPFv3, MSDP, VRRPE, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, BGP-4+, VRRPv3, BGP for IPv6 |
| Subtype | Gigabit Ethernet |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 216 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 250 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| MTBF | 243,130 hours |
| Depth | 40.6 cm |
| Height | 4.4 cm |
| Weight | 7.6 kg |
| Width | 44 cm |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
