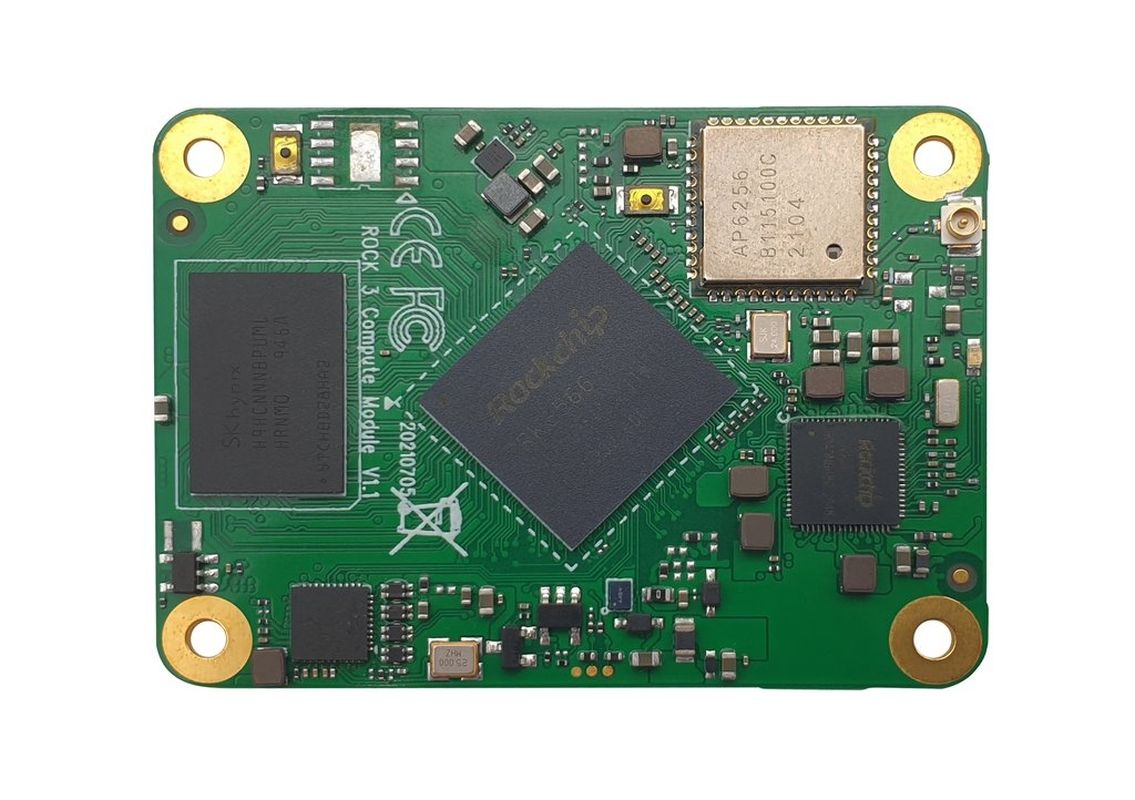

["RADXA's new CM3I is a feature-rich industrial embedded SoM (System on Module) based on the Rockchip RK3568 (J) industrial grade SoC in a small form factor of 70mm x 40mm, it integrates CPU/PMU/DRAM/FLASH STORAGE and wireless. (WiFi5/BT5) Radxa's CM3I provides an out-of-the-box, cost-effective solution for countless applications. It also simplifies and accelerates industrial product development. The Radxa CM3I is powered by the Rockchip RK3568(J) SoC, a 64-bit Quad Cortex A55 (ARM v8) low-power core running at 2.0GHz. It is available with a maximum of 8 GB RAM, up to 128 GB eMMC storage and powerful networking capabilities (onboard Gigabit Ethernet PHY and WLAN IEEE802.11b/g/n/ac + BLE5). When developing a carrier board, engineers can save time developing industrial solutions and deploying them for mass production. I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, USB2, USB3, I2S, MIPI, SATA, eDP interfaces are available, as are high-bandwidth PCIe 2.0 buses. The Dual Video Out processor supports dual screen output via HDMI, eDP, MIPI, DP, with a resolution of up to 4K x 2K and a 2.5k Powerful multimedia support 4K VP9 and 4K 10bits H264/H265 video decoding, up to 60FPS decoding multiple 1080P video formats, including VC-1, MPEG-1/2/4, VP8 Small size and low power consumption The 70mm x 40mm form factor and industry-standard 4 x 100PIN board-to-board connectors save board space and provide standardized interfaces that save board space. Source code, documents, tools and utilities are freely available, community and commercial support are available to help you put your prototype into production Widely used in various applications Perfect SoM for robotics, industrial control, medical devices, etc. Rockchip RK3568 (J), Quad-Core Cortex-A55 (ARM v8) 64-bit SoC @2.0GHz 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)", "Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with built-in and external antenna options", "Integrated Gigabit Ethernet PHY", "1 × USB 2.0 port (high speed), 1 × USB 3.0 port (5Gbps)", "1 × PCIe 1-lane host, Gen 2 (5Gbps)", "2 x SATA ports, one shared with USB 3, one shared with PCIe", "50× GPIO support", "1x HDMI up to 4K x 2K@60HZ", "1x eDP four lanes, 2.7Gps per lane", "2x MIPI DSI four lanes, 1.6 Gbit/s per lane", "LINEOUT", "PDM, supports microphone array", "VP9/H.264/H.265 decoding 4K@60HZ", "H.264/H.265 encodes 1080P@100HZ", "OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1 GPU connection: 4x 100P 0.5mm pitch B2B connection J0 model (RK3568) 0° to 60° C model J1 (RK3568J)", "40° to 85° C Dimensions: 70 mm × 40 mm"]
