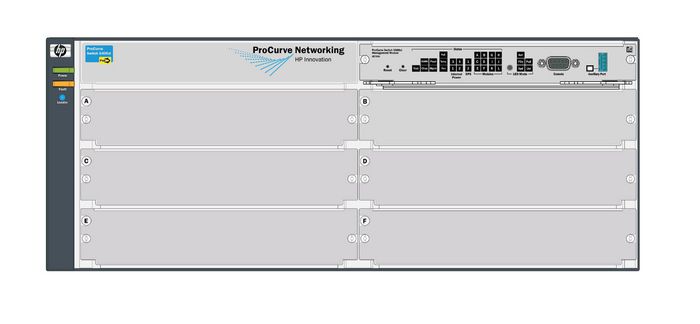

Hewlett Packard Enterprise ProCurve 5406zl Intelligent Edge
The HP ProCurve Switch 5400zl Series consists of the most advanced intelligent edge switches in the HP ProCurve Networking product line. The 5400zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of Gigabit interfaces, integrated PoE on all 10/100/1000Base-T ports, 10-GbE capability, and a choice of form factors, the 5400zl switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance. Communications: RFC 783 TFTP; RFC 2925 Ping MIB; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay
Availability: In stock
The HP ProCurve Switch 5400zl Series consists of the most advanced intelligent edge switches in the HP ProCurve Networking product line. The 5400zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of Gigabit interfaces, integrated PoE on all 10/100/1000Base-T ports, 10-GbE capability, and a choice of form factors, the 5400zl switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance. Communications: RFC 783 TFTP; RFC 2925 Ping MIB; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; RFC 2453 RIPv2; RFC 2328 OSPFv2 (Premium Edge License); IGMPv3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2597 DiffServ Expedited Forwarding (EF); RFC 2598 DiffServ Assured Forwarding (AF); RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; 802.3af Power over Ethernet; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; PIM Dense Mode (Premium Edge License); PIM Sparse Mode (Premium Edge License); RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 3768 VRRP (Premium Edge License); RFC 2787 VRRP MIB; RFC 1058 RIP; RFC 1724 RIPv2 MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); XRMON; UDLD (Uni-directional Link Detection); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 1850 OSPF MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3101 OSPF NSSA; RFC 1519 CIDR; RFC 3046 DHCP Relay Agent Information Option; RFC 3176 sFlow
Specifications
| MAC address table | 10000 entries |
| Maximum data transfer rate | 10 Gbit/s |
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
| Stackable | No |
| Switch type | Managed |
| Operating temperature (T-T) | 32 - 131 °F |
| Storage temperature (T-T) | -40 - 70 °C |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 450.9 x 444.5 x 175.3 mm |
| Electromagnetic emissions | FCC Class A; EN55022/CISPR-22 Class A; VCCI Class A |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
| Expansion slots | 6x |
| I/O ports | 6 open module slots; Supports a maximum of 24 10-GbE ports or 144 auto-sensing 10/100/1000 ports or 144 mini-GBICs, or a combination |
| Input frequency | 50 / 60 Hz |
| Input voltage | 100-127 / 200-240 VAC V |
| Latency | 1000 Mb Latency: 3.7 µs (FIFO 64-byte packets); 10 Gbps Latency: 2.1 µs (FIFO 64-byte packets) |
| Management platform | HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) |
| Memory and processor | Gigabit Module: ARM9 @ 200 MHz, packet buffer size: 144 Mb QDR SDRAM; 10G Module: ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management Module: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM |
| Operating altitude (imperial) | up to 10000 ft. |
| Power supply slots open | 2 |
| Switch fabric speed | 345.6 Gbps |
| Weight (imperial) | 34,26 lbs |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Console port | RS-232 |
| Power source | 1 x J8712A |
| Power over Ethernet (PoE) | No |
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 year |
