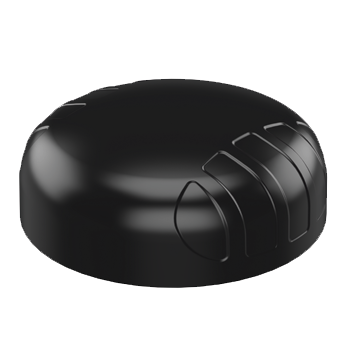

["Poynting WLAN Antenna A-PUCK-0012-V2-01 SMA (M) & RPSAM Adapter - Black WIFI Antenna 7.5dbi MIMO Antenna 2x DB WIFI 2m SMA-M Cable \"Black\" The new PUCK series from Poynting offers a small profile antenna that can be used in the IoT/M2M, smart meter, smart utilities, transport, marine and agricultural markets. The PUCK-12 consists of a 2-in-1 antenna system in a single housing and offers 2x2 MIMO Wi-Fi (dual-band 2.4 GHz & 5 GHz). The antenna offers two separate dual-band Wi-Fi antennas that operate simultaneously in the 2.4GHz and 5GHz bands and support 802.11n and 802.11ac/ax with 2x2 MIMO. The PUCK outperforms many competitors because of the attention to design in this high performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectional behavior, pattern diversity and good radiation properties at the desired elevation, which is often overlooked with such a small antenna. Despite its small size, this antenna offers excellent performance, especially in the higher frequency bands where performance is critical for Wi-Fi throughput and connection stability", "Small and flat (Ø100mm x h 36mm)", "IP69K", "Fire resistant", "UV-stable housing", "Independent of the base plate", "consistent performance with and without base plate", "5G Ready; covers 3.2GHz to 3.8GHz CBRS band", "Easy installation; multiple implementation options (by default)", "Tenon assembly", "Magnetic assembly", "Tape assembly", "Bracket assembly", "Smart utilities: Smart electricity, gas and water metering -", "Smart buildings: climate control, access control, security, irrigation", "Digital signage", "Warehouses & logistics systems", "Industrial factory automation, robot machines and other M2M systems", "Transportation (buses, utilities & public safety)", "Bergbaufahrzeuge & Maschinen: Communication, Telemetry and Automation (M2M & IoT)", "Agricultural machinery", "Marine: small boats, yachts near the coast or in internal waters", "Frequency: 2400-2500MHz 5000-72000MHz", "Connection type: SMA - Male", "VSWR Port 1: ≤2.5:1 over 95% of the band", "Load capacity of the feed: 10 W", "Nominal input impedance: 50 ohms (nominal)", "Polarization: Linear Vertical", "Coaxial Cable Loss: 0.91 dB/m @ 2400 MHz 1.65 dB/m @ 5800 MHz Path to Earth: Yes", "Wind survival time: <220 km/h", "Temperature range (operation): -40°C to +80°C", "Environmental Conditions: Outdoor/Indoor", "IP69K", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +80°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 10", "Product dimensions Ø99.3 mm x 36 mm", "Packaging dimensions: 150mm x 150mm x 120mm", "Weight: 0.376kg", "Weight packed: 0.507kg", "Radome material: PC+ABS (halogen-free)", "Housing color: black", "Mounting type: Ø20 threaded socket, pole, wall, surface and magnet mounting"]
