Poynting · Antennen · LTE/GSM · Mast · A-LPDA-0092 · silber · SMA (M) · LoRa Helium · 11dbi Yagi/Mast · SMA -Male · 7m Kabel

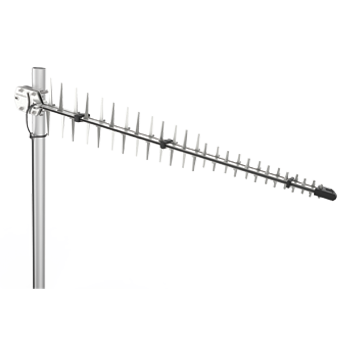

Poynting LPAD-92 LTE/GSM antenna N-TYPE (F) LoRa Helium suitable! - Silver GSM Antenna 2x 11dbi Yagi/Mast LPDA-A0092 7m Cable SMA M / LTE Compatible This high gain broadband directional antenna covers all international cellular and data bands including GSM 900/GSM1800/UMTS/LTE bands. It also covers
Availability: In stock
["Poynting LPAD-92 LTE/GSM antenna N-TYPE (F) LoRa Helium suitable! - Silver GSM Antenna 2x 11dbi Yagi/Mast LPDA-A0092 7m Cable SMA M / LTE Compatible This high gain broadband directional antenna covers all international cellular and data bands including GSM 900/GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as: B. the European/American \"Digital Dividend bands\" and the licensed and unlicensed 2.3-2.7 GHz data bands. Their configuration is suitable for various wireless communication systems. This antenna is unique in its combination of ultra-wideband operation and consistent high-gain performance. It has already been used successfully in extreme weather conditions in Africa and Europe, with almost zero failures. It is a firm favorite in any area where operators are struggling with signal issues. It is ideal for any application that uses the GSM network (LTE/HSPA/3G/EDGE/GPRS)", "High gain directional antenna", "Easy alignment with a main beam of approx. 50° width", "Broadband, covers multiple operating frequencies", "Pole mounting possible", "Light", "Water and dust resistant", "Huge improvement in wireless data reliability", "Four-year track record in all climates from snow to desert to tropical conditions", "Urban and rural areas", "Antenna of choice for rural areas due to high gain", "If data signal reception is poor (indoor or outdoor)", "With slow data transfer", "If the connection is unstable", "Increases the transmission security of the system", "LTE fringe areas (near an LTE area but out of range)", "Flexibility of the network operator", "Since the antennas are broadband, a new antenna is not required for every network operator", "works on most networks", "LoRa Helium suitable", "Frequency band: 698 - 3800 MHz", "Gain: 11 dBi", "4G LTE", "5G ready", "Wi-Fi: 2.4-2.5GHz", "LoRa suitable", "Waterproof to IP65", "Operating temperature: -40° to +70° C", "Fire resistant", "Wind survival time: ≤160 km/h", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Complies with CE and RoHS standards"]
Specifications
| Frequenzband | 698 - 3800 MHz |
| Gewinn | 11 dBi |
| Wi-Fi | 2,4-2,5 GHz |
| Betriebstemperatur | -40° bis +70° C |
| Wind survival time | ≤160 km/h |
| Temperature range (operation) | -40°C bis +70°C |
| Umgebungsbedingungen | Outside/Inside |
| Protection class/standard for water ingress | IP 65 |
| Salt spray | MIL-STD 810F/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +70°C |
| Flammability class of the housing | UL 94-HB |
| Impact resistance | IK 08 |
