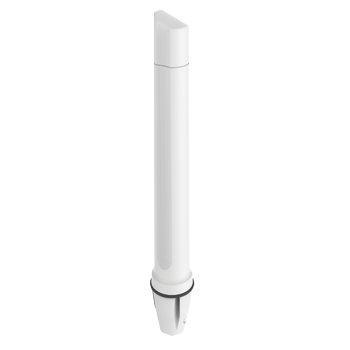

Poynting · Antennen · 5G/LTE · Marine · A-OMNI-0402-V2-01 · SMA (M) · 6,2 dbi Rundstrahl OMNI-402 2M-SMA-M · LTE
Poynting 5G/LTE marine antenna OMNI-402-V1-01 SMA (M) - white GSM antenna marine 6.2 dbi omnidirectional OMNI-402 2M-SMA-M "LTE compatible" The OMNI-402 is an ultra-wideband antenna that covers all current LTE operating frequencies with excellent, balanced gain across all frequencies. The antenna al
Availability: In stock
["Poynting 5G/LTE marine antenna OMNI-402-V1-01 SMA (M) - white GSM antenna marine 6.2 dbi omnidirectional OMNI-402 2M-SMA-M \"LTE compatible\" The OMNI-402 is an ultra-wideband antenna that covers all current LTE operating frequencies with excellent, balanced gain across all frequencies. The antenna also offers 2X2 MIMO capability through its vertically separated radiating elements, all located in the same radome. The antenna design allows the antenna to have superior directivity across the entire frequency range, making the OMNI-402 a true high performance omnidirectional MIMO antenna suitable for marine and coastal applications. Can be used in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through a new antenna configuration with multiple dipoles and a unique (patented) feeding network. The antenna is future-proof as it covers the 450 MHz LTE frequency band, which is becoming increasingly popular in different regions and countries. This antenna is also 3400 - 4200 MHz capable for coastal and inland use", "Medium gain omnidirectional antenna", "The antenna was specifically designed for operation at sea and on the coast", "UV and salt water resistant", "Robust and weatherproof design with IP 68 classification", "2X2 MIMO capable for improved performance", "Includes the 3.5GHz CBRS band and is 5G ready", "Marine applications / yachts / boats / ferries", "Improved LTE reception", "IoT and M2M", "If data signal reception is poor", "Improving the reliability and stability of data transmission connections", "Wi-Fi applications", "Frequency band: 410-470MHz, 698-2700MHz, 3400-3800MHz", "Gain: 6.2 dBi", "Cable Type: Twin HDF-195", "Cable length: 2 meters", "Connection type: SMA - Male", "Operating temperature: -40° - +80° C", "Waterproof to IP68", "Wind survival time: <160 km/h", "Temperature range (operation): -40°C to +80°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 68", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +80°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Product dimensions 750 mm x Ø75 mm (Incl. BRKT-40)", "Packaged dimensions: 704mm x 147mm x 100mm", "Weight: 0.86kg", "Packed weight: 1.7kg", "Radome material: UV-stable Marine ASA", "Housing color: white", "Mounting Type: Standard 1'' -14 TPI Marine Mount & Wall/Pole Mount"]
Specifications
| Frequenzband | 410-470MHz, 698-2700MHz, 3400-3800MHz |
| Gewinn | 6,2 dBi |
| Kabel Typ | Twin HDF-195 |
| Cable length | 2 Meter |
| Verbindungs Typ | SMA - Male |
| Betriebstemperatur | -40° - +80° C |
| Wind survival time | <160 km/h |
| Temperature range (operation) | -40°C bis +80°C |
| Umgebungsbedingungen | Outside/Inside |
| Protection class/standard for water ingress | IP 68 |
| Salt spray | MIL-STD 810F/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +80°C |
| Flammability class of the housing | UL 94-HB |
| Impact resistance | IK 08 |
| Verpackte Abmessungen | 704 mm x 147 mm x 100 mm |
| Weight | 0,86 kg |
| Packed weight | 1,7 kg |
| Material des Radoms | UV-stabiles Marine ASA |
| Housing color | white |
| Montage-Typ | Standard 1'' -14 TPI Marinemontage & Wand-/Mastmontage |
