Poynting · Antennen · 5G/LTE · KFZ/Marine · A-MIMO-0003-V2-15 · schwarz · SMA (M) & RPSMA Adapter · 1,8~4,5dbi 4G/GPS/GLONASS/WIFI Dual-Band MIMO 2M S

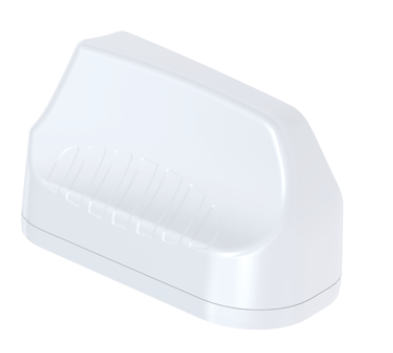

The Poynting A-MIMO-003-V2-15-B car/marine 5G/LTE antenna SMA (M) & RPSMA adapter
Availability: In stock
["The Poynting A-MIMO-003-V2-15-B car/marine 5G/LTE antenna SMA (M) & RPSMA adapter", "Black The MIMO-3-15 is a 5-in-1 high performance multi-frequency antenna in a single housing that offers two cellular, two WiFi and one GPS/GLONASS antennas. The two cellular MIMO antennas (for 2G/3G/4G) cover the current bands from 698 MHz to 2700 MHz, as well as the emerging LTE and 5G spectrum for the CBRS bands of 450 MHz and 3.5 GHz, which is becoming increasingly popular with the various international mobile network operators for LTE. The antenna's ultra-wideband performance enables deployment across multiple operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna offers two separate dual-band Wi-Fi antennas that simultaneously provide 2.4GHz and 5GHz on each antenna with 2x2 MIMO capability. The fifth antenna is a high performance active GPS/GLONASS system that can provide up to", "40°C works. The MIMO-3-15 outperforms most competitors because a lot of attention was paid to design when developing this high-performance antenna. The radiation diagrams of all radiating elements offer an excellent balance between omnidirectional radiation behavior, pattern diversity and good radiation at the desired elevation. This is an important criterion for the transport and marine markets, for which the antenna was specifically developed. Main areas of application are commercial/industrial vehicles, shipping, M2M and other IoT systems that use a wide range of wireless technologies while being future-proof across the wide frequency band"]
Specifications
| Independent of the base plate | MIMO-3 is equipped with an internal baseplate, making the antenna suitable for implementation on all surfaces |
| Wind survival time | ≤220 km/h |
| Umgebungsbedingungen | Outside/Inside |
| Salt spray | MIL-STD 810F/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +80°C |
| Impact resistance | IK 10 |
| Verpackungsabmessungen | 265 mm x 211 mm x 204 mm |
| Weight | 1,36 kg |
| Weight packed | 1,46 kg |
| Material des Radoms | UV-stabiles ASA |
| Montageart | Spigot, surface with magnetic mounting option |
