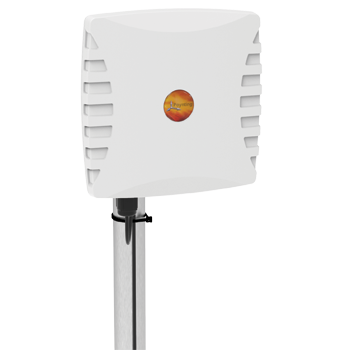

["Poynting WI-FI Antenna WLAN-0061-V1 SMA (F) - White WIFI Antenna 2.4GHz/5GHz 11dBi Dual-Band Directional 4x4 MIMO Antenna WLAN-61 The WLAN-61 is a dual-band Wi-Fi MIMO antenna developed by Poynting Antennas. It can be connected to any Wi-Fi access point, whether it is older Wi-Fi technology or new dual-band Wi-Fi technology. Multiple dual-band antennas can resolve channel saturation, providing the ultimate Wi-Fi performance and flexibility. This 4x4 MIMO antenna has 4 different antenna orientations in one housing. This means the antenna can be used in a 2x2, 3x3 and if required in a 4x4 antenna configuration. The large beam width ensures good coverage in offices, halls and factories, etc. The antenna works in the two Wi-Fi frequency bands 2.4 GHz and 5 GHz and thus offers excellent utilization of the radio spectrum. The antenna has 9 dBi gain in the 2.4 GHz band and 11 dBi gain in the 5 GHz band, providing best performance with a reliable connection. The housing is made of ABS, a high-impact plastic that is also resistant to acids and other chemicals that can be found in industrial facilities. The antenna can be opened on the side where the 4 x SMA sockets are located. The cable can be routed through the bypass screw connection, eliminating the need to connect to the antenna extension cables. This eliminates connector losses and the need to tape and seal connectors for outdoor installation. This antenna is designed for installations where 4x4 (four independent streams), time-space multiplexing technologies are required. It can be used both indoors and outdoors and is ideal for use in warehouses, manufacturing plants, construction sites or any other environment where Wi-Fi connectivity is required, such as: B. for computers, mobile phones, tablets and all other IoT devices", "Works on 2.4GHz and 5GHz Wi-Fi bands", "High gain directional antenna", "MIMO capability for optimal performance", "Robust design for vandalism and dust protection (IP 65)", "Easy to mount on poles", "Offices, warehouses and factories", "Areas with poor data signal reception (indoor or outdoor)", "Open mining areas", "Areas with a lot of high frequency noise", "M2M and IoT applications", "Frequency bands: 2400 - 2500 MHz 5000 - 6000 MHz", "Connection type: SMA-Female", "Gain (max): 9dBi @ 2400-2500MHz 11dBi @ 5000-6000MHz", "VSWR: <2:1", "Load capacity of the feed: 10 W", "Input impedance: 50 ohms (nominal)", "Polarization: Linear Vertical", "DC short circuit: Yes", "Wind survival time: 160 km/h", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65 (NEMA 4X)", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Product dimensions 240mm x 240mm x 60mm", "Packaging dimensions: 260mm x 280mm x 80mm", "Weight: 0.76kg", "Weight packed: 1.334 kg", "Radome material: ABS (halogen-free)", "Housing color: white", "Mounting Type: Wall and pole mount"]
