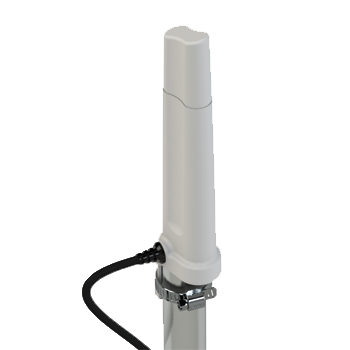

Poynting · Antennas · LTE/GSM · Mast/Wall · A-OMNI-0280-08-V1 · white · RA-SMA (M) · 4dbi OMNI-Directional LTE SISO · SMA - Male · 2 meter cable
€23,70

Poynting OMNI-280-08-V1 LTE/GSM Antenna RA-SMA (M) - White 4dbi OMNI-Directional LTE SISO 2m RG-58 RA-SMA-M Cable The OMNI-280 antenna offers an innovative solution for signal improvement of 4G/3G and 2G networks. It is a unique magnetic, wall or pole mountable, single polarized, full LTE band anten

Availability: In stock
-
+
Secure payment · Fast delivery
EAN:7072734700412Brand:

["Poynting OMNI-280-08-V1 LTE/GSM Antenna RA-SMA (M) - White 4dbi OMNI-Directional LTE SISO 2m RG-58 RA-SMA-M Cable The OMNI-280 antenna offers an innovative solution for signal improvement of 4G/3G and 2G networks. It is a unique magnetic, wall or pole mountable, single polarized, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution to improve signal reception and throughput. The OMNI-280-01 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high-quality connection. This improves the user experience and ensures customer loyalty. It is ideal for all applications that use the GSM network (LTE/HSPA/3G/EDGE/GPRS).", "Broadband frequency range from 698 to 3800 MHz", "Medium gain across the entire frequency range", "Omnidirectional beam pattern for optimal coverage", "Magnet, wall or pole attachment", "Light weight", "Increasing the transmission security of the system", "M2M applications where machines and measuring devices need to be connected for real-time monitoring and information transmission. (telematics)", "Electricity and water metering utilities", "Security industry where cameras and other security devices need to be monitored", "Retail equipment at the point of sale", "Areas with poor data signal reception (indoor and outdoor)", "Frequency band: 698 - 3800 MHz", "Gain: 4 dBi", "compatible with 2G and 3G", "LTE & 5G ready", "Waterproof to IP65", "-40° to +70° C", "Fire resistant", "Cable Type: RG-58", "Cable length: 2 meters", "Connection type: RA-SMA - Male", "Housing color: white", "Wind survival time: <120 km/h", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Product dimensions 157mm x 61mm x 44mm", "Packaging dimensions: 250mm x 150mm x 50mm", "Radome material: ABS (halogen-free)", "Radome color: Pantone Cool Gray 1C", "Mounting type: pole/wall and magnet/Velcro fastener"]

Specifications

Specifications
Frequenzband698 - 3800 MHz
Gewinn4 dBi
Kabel TypRG-58
Cable length2 Meter
Verbindungs TypRA-SMA - Male
Housing colorweis
Wind survival time&lt;120 km/h
Temperature range (operation)-40°C bis +70°C
UmgebungsbedingungenOutside/Inside
Protection class/standard for water ingressIP 65
Salt sprayMIL-STD 810F/ASTM B117
Relative humidity during operationBis zu 98%
Humidity during storage5% bis 95% - nicht kondensierend
Lagertemperatur-40°C bis +70°C
Flammability class of the housingUL 94-HB
Impact resistanceIK 08
Verpackungsabmessungen250 mm x 150 mm x 50 mm
Material des RadomsABS (halogenfrei)
Farbe des RadomsPantone Cool Gray 1C
MontageartPole/wall and magnet/velcro
