Poynting · Antennas · 5G/LTE · M2M/IoT · A-OMNI-0600-V2-01 · white · SMA (M) · 6.2dbi Ultra-Wide-Omni LTE antenna · SMA - Male · 5m SMA-M OMNI-600

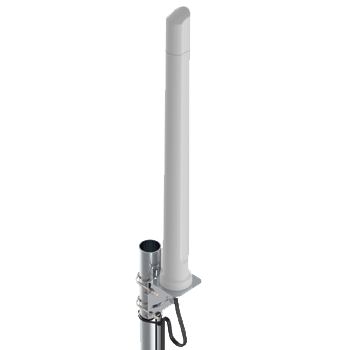

Poynting OMNI-600 5G/LTE Antenna SMA (M) - White OMNI-DIRECTIONAL, 2X2 MIMO LTE ANTENNA LTE, 410 - 3800 MHz, 6.2 dBi The OMNI-600 is a unique new design with improved 2x2 MIMO electrical performance. The ultra-wideband covers all contemporary operating frequencies with excellent balanced gain across
Availability: In stock
["Poynting OMNI-600 5G/LTE Antenna SMA (M) - White OMNI-DIRECTIONAL, 2X2 MIMO LTE ANTENNA LTE, 410 - 3800 MHz, 6.2 dBi The OMNI-600 is a unique new design with improved 2x2 MIMO electrical performance. The ultra-wideband covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are unaffected and the antenna design allows Poynting superior pattern control across the entire frequency range, making the OMNI-600 a true high performance omnidirectional antenna. The OMNI-600 guarantees signal reception almost everywhere and can therefore be used in all parts of the world. Poynting Antennas achieves this through a new antenna configuration with multiple dipoles and a unique (patented) feeding network. The antenna is future-proof as it covers the 450 MHz frequency and the 3.5 GHz CBRS band, which is gaining popularity in different regions and countries", "2X2 MIMO high performance omnidirectional antenna", "Uniform gain over a wide frequency band", "Increased connection stability", "Excellent broadband antenna", "Vandal and waterproof housing", "Machine-to-machine (M2M)", "-Poor data signal reception (indoor or outdoor)", "Slow data transfer", "Wi-Fi applications", "Unstable connection", "Increases the reliability of system transmission", "High-end router applications for industry", "Mobile offices", "Frequency: 410MHZ – 3800MHZ", "Antenna: Max Gain: 5.4 dBi", "2×2 MIMO High Performance Omni Directional Antenna", "Consistent gain over a very wide frequency band", "Increased stability of connectivity", "Coax cable type: HDF-195", "Coax cable length: 5 meters", "Connection type: SMA - Male", "Wind survival time: ≤160 km/h", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Complies with CE and RoHS standards", "Product dimensions (L x W) 646 mm x Ø71 mm without bracket", "Packaged dimensions: 700mm x 150mm x 100mm", "Weight: 0.8kg", "Weight packed: 1.64 kg", "Radome material: ABS (halogen-free)", "Radome color: Pantone - Cool Gray (1C) RAL -7047", "Mounting Type: Wall/Pole Mount", "Color: white"]
Specifications
| Frequenz | 410MHZ – 3800MHZ |
| Antenne | Max Gain: 5.4 dBi |
| Coax Kabel Typ | HDF-195 |
| Coax cable length | 5 Meter |
| Verbindungstyp | SMA - Male |
| Wind survival time | ≤160 km/h |
| Temperature range (operation) | -40°C bis +70°C |
| Umgebungsbedingungen | Outside/Inside |
| Protection class/standard for water ingress | IP 65 |
| Salt spray | MIL-STD 810F/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +70°C |
| Flammability class of the housing | UL 94-HB |
| Impact resistance | IK 08 |
| Verpackte Abmessungen | 700 mm x 150 mm x 100 mm |
| Weight | 0,8 kg |
| Weight packed | 1,64 kg |
| Material des Radoms | ABS (halogenfrei) |
| Farbe des Radoms | Pantone - Cool Gray (1C) RAL -7047 |
| Montage-Typ | Wand-/Stangenmontage |
| Farbe | white |
