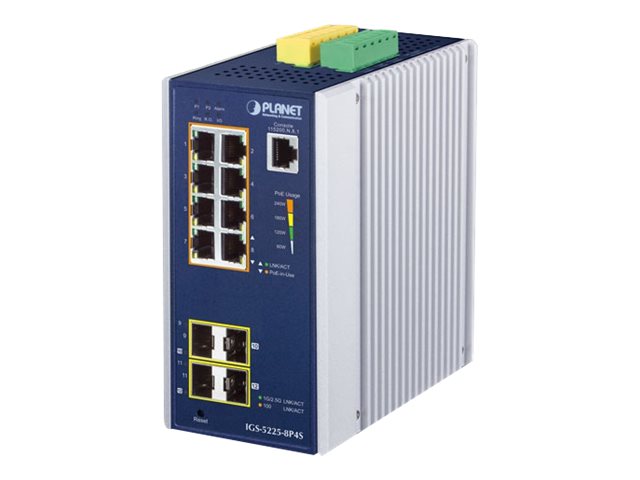

PLANET IGS-5225-8P4S Switch 12-porte Gigabit PoE+
€520,09
PLANET IGS-5225-8P4S - Switch - L2+ - Administreret - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN monterbar på skinne, væg-monterbar - PoE+ (240 W) - DC strøm
Availability: In stock
Secure payment · Fast delivery
EAN:4711605282420Brand:
PLANET IGS-5225-8P4S - Switch - L2+ - Administreret - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN monterbar på skinne, væg-monterbar - PoE+ (240 W) - DC strøm
Specifications
Specifications
| Produktbeskrivelse | PLANET IGS-5225-8P4S - switch - 12 porte - Administreret |
| Enhedstype | Switch - 12 porte - L2+ - Administreret |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 240 W |
| Præstation | Skift af stofbåndbredde: 24 Gbps<br>Gennemløb (64-byte pakkestørrelse): 17,85 Mpps |
| Kapacitet | VLAN-grupper: 255<br>VLAN ID'er: 4094<br>Multicast-grupper: 255<br>ACL-bidrag: 123<br>Virtuelle grænseflader (VLANs): 8<br>Routing-indgange: 32 |
| MAC adresse table størrelse | 8K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Egenskaber | Datatransport, auto-negotiation, understøttet af BOOTP, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, portspejling, gem og send, Broadcast Storm Control, halv dupleksmodus, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MDL snooping, DAI, nulstillingsknap, båndbreddekontrol, LLDP support, DHCP videresendelse, portkonfiguration, SNMP fælde, MVR, CoS, mærket VLAN, GVRP, PSE, PTP, ERPS, Protokol-baseret VLANs support, systemlog, IP-kildebekyttelse, Back Pressure Support, Link Aggregation, IGMP-forespørger, Voice VLAN, PVE, DSCP Marking, WRR, MAC based VLAN, DSCP/TOS-felt i IP-pakke, BPDU Guard, Q-i-Q tunnelering, portdeaktivering, 5 KV ESD Protector, aluminiumskabinet, MKD-forespørger, NTP support, SMTP-varsler, UDLD |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, ITU-T G.8032 |
| Effekt | DC 48 - 56 V |
| Dimensioner (B x D x H) | 7.68 cm x 10.73 cm x 15.2 cm |
| Vægt | 1.093 kg |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | VLAN groups: 255 | VLAN IDs: 4094 | Multicast groups: 255 | ACL entries: 123 | Virtual interfaces (VLANs): 8 | Routing entries: 32 |
| Compliant Standards | IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30 |
| Device Type | Switch - 12 ports - L2+ - managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching fabric bandwidth: 24 Gbps | Throughput (64-byte packet size): 17.85 Mpps |
| PoE Budget | 240 W |
| Ports | 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
| Status Indicators | Power, PoE, link/activity, fault, ring |
| Subtype | Gigabit Ethernet |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 36 W | 4 x 1000Base-X SFP | 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | DC 48 - 56 V |
| Depth | 10.73 cm |
| Height | 15.2 cm |
| Weight | 1.093 kg |
| Width | 7.68 cm |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
