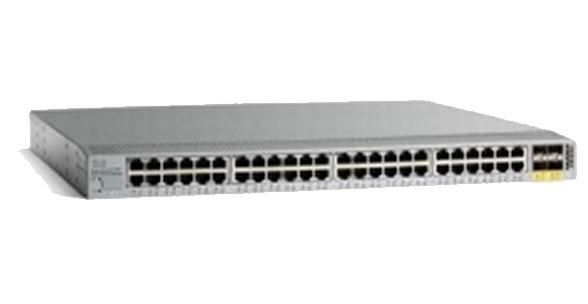

NEXUS 2248TF Switch
€22,42
NEXUS 2248TF Switch
Availability: In stock
Secure payment · Fast delivery
EAN:5715063460344Brand:
NEXUS 2248TF Switch
Specifications
Specifications
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 40 Gbit/s |
| Number of queues | 8 |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 176 Gbit/s |
| Certification | CE, 47CFR, AS/NZS CISPR, EN, VCCI, KN22, CNS, RoHS |
| Compatible products | Nexus 5000, Nexus 7000 |
| Number of fans | 1 fan(s) |
| Product colour | Silver |
| Safety | UL 60950-1, CAN/CSA-C22.2, IEC 60950-1AS/NZS |
| MIB support | ENTITY-MIB, IF-MIB, EXT-MIB, ENTITY-EXT-MIB, ENTITY-FRU-CNTRL-MIB, ENTITY-SNSR-MIB, ETH-EXT-MIB |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Multicast features | Multicast support Yes |
| Multicast support | Yes |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Spanning tree protocol | Yes |
| Heat dissipation | 403 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Relative humidity | 5 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Optical fiber | Fiber ethernet cabling technology 10GBASE-LR, 10GBASE-SR |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
| Connectivity technology | Wired |
| Dimensions (W x D x H) (imperial) | 17.7 x 17.3 x 1.72 " |
| Dimensions (WxDxH) | 449.6 x 439.4 x 43.7 mm |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 9216 b |
| Power requirements | 100 - 220V |
| Power supply | 400 W |
| Remote administration | RMON |
| Weight (imperial) | 18 lbs |
| Ports & interfaces | Basic switching RJ-45 Ethernet ports quantity 48 Fiber ports quantity 4 |
| Basic switching RJ-45 Ethernet ports quantity 48 | Fiber ports quantity 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Fiber ports quantity | 4 |
| Input current | 1.2 A |
| Input voltage | 90 - 264 V |
| Number of power supply units | 2 |
| Power consumption (typical) | 110 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| Protocols | Management protocols SNMP v1/v2c/v3 |
| Management protocols | SNMP v1/v2c/v3 |
| Security | Access Control List (ACL) Yes Static port security Yes |
| Access Control List (ACL) Yes | Static port security Yes |
| Access Control List (ACL) | Yes |
| Static port security | Yes |
| Vendor information | Brand Name Cisco Warranty 1 År |
| Brand Name Cisco | Warranty 1 År |
| Brand Name | Cisco |
| Warranty | 1 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
