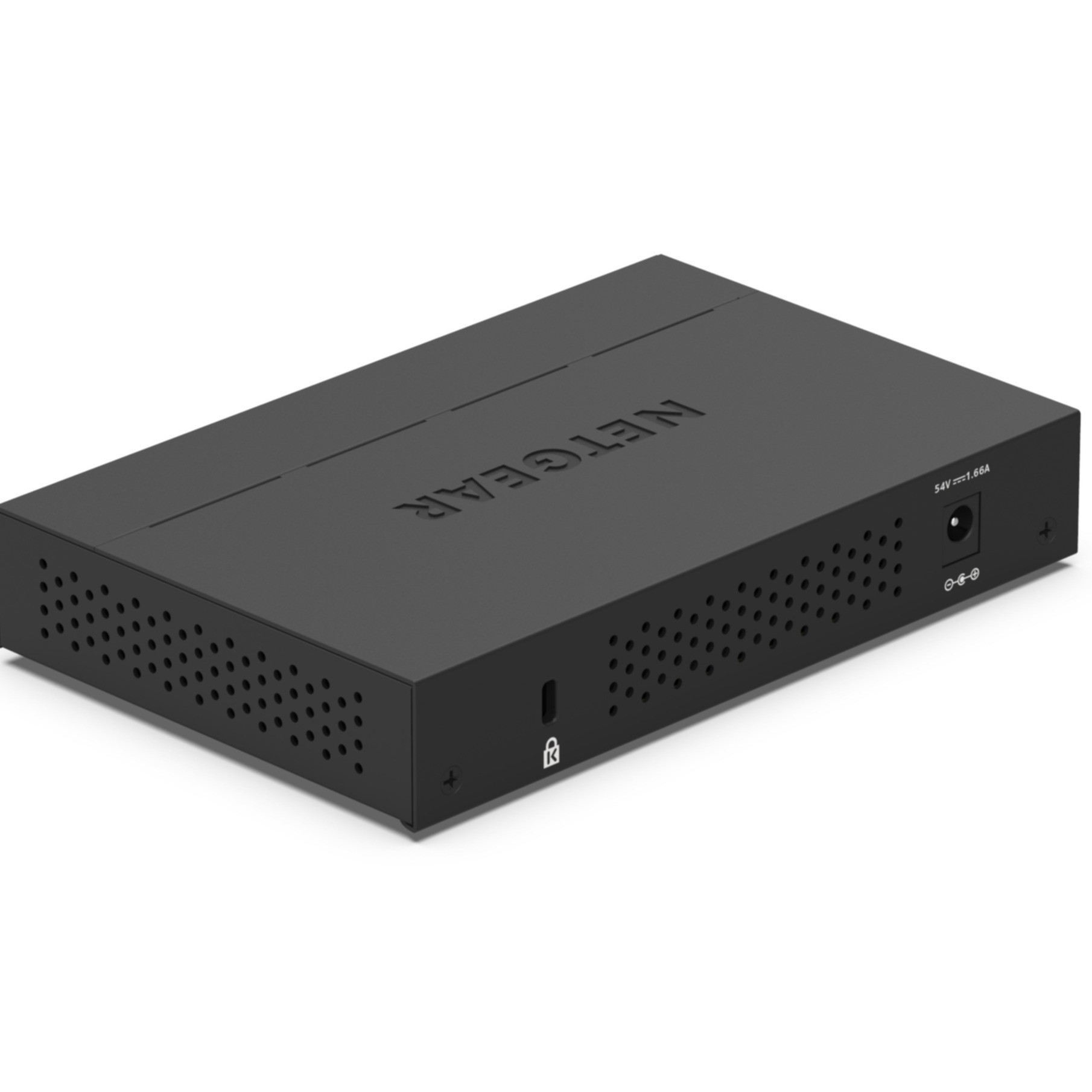

NETGEAR Switch 5-port 10/100/1000 GS305PP-300EUS
Expanding Wired Connectivity for SOHO Networks NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Availability: In stock
Expanding Wired Connectivity for SOHO Networks NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
| Switch type | Unmanaged |
| Ethernet ports | 4 |
| Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Switching capacity | 10 Gbit/s |
| Quality of Service (QoS) support | yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | no |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | yes |
| Auto MDI/MDI-X | yes |
| Auto-sensing | yes |
| Auto-negotiation | yes |
| Cable length detection | yes |
| Forwarding rate | 1.448 Mpps |
| MAC address table | 2000 entries |
| Latency (1 Gbps) | 2.4 µs |
| Jumbo frames support | yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 128 MB |
| Rack mounting | no |
| Product colour | Black |
| Housing material | Metal |
| Reset button | yes |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | yes |
| Mean time between failures (MTBF) | 6710127 h |
| Power source | DC |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (typical) | 2.89 W |
| Power consumption (max) | 88.89 W |
| Power over Ethernet (PoE) | yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 83 W |
| Warranty period | 3 year(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 304 BTU/h |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 29 mm |
| Weight | 410 g |
| Manual | yes |
| Package width | 269 mm |
| Package depth | 73 mm |
| Package height | 215 mm |
| Package weight | 1.3 kg |
| Shipping (inner) case height | 37.5 cm |
| Shipping (inner) case width | 45.1 cm |
| Shipping (inner) case length | 25.5 cm |
| Shipping (inner) case net weight | 15.1 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC |
| Master (outer) case width | 237 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case height | 306 mm |
| Master (outer) case gross weight | 8.52 kg |
| Products per master (outer) case | 6 pc(s) |
