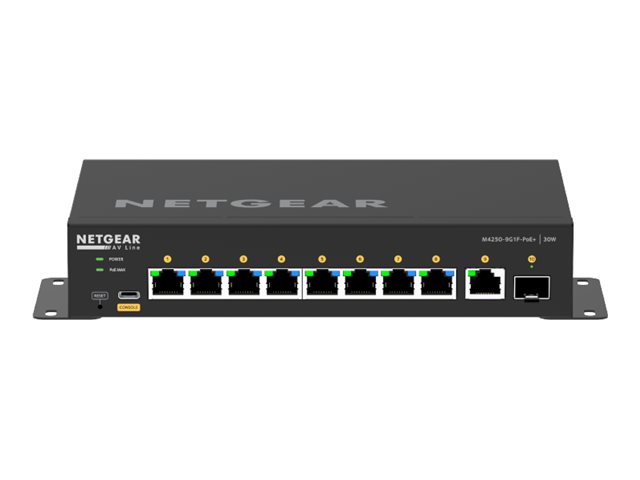

NETGEAR AV Line M4250-9G1F- Switch 10-porte Gigabit PoE+
€637,30
NETGEAR AV Line M4250-9G1F-PoE+ - Switch - L3 - Administreret - 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP - side til side-luftstrøm - desktop - PoE+ (110 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0606449160192Brand:
NETGEAR AV Line M4250-9G1F-PoE+ - Switch - L3 - Administreret - 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP - side til side-luftstrøm - desktop - PoE+ (110 W)
Specifications
Specifications
| Produktbeskrivelse | NETGEAR AV Line M4250-9G1F-PoE+ - switch - 10 porte - Administreret |
| Enhedstype | Switch - 10 porte - L3 - Administreret |
| Pakningstype | Side til side-luftstrøm |
| Undertype | Gigabit Ethernet |
| Porte | 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 110 W |
| Præstation | Omkoblingskapacitet: 20 Gbps<br>Gennemløb (64-byte pakkestørrelse): 14.88 Mpps<br>Latens (1 Gbps): &lt; 2.27 µs |
| Kapacitet | VLANs understøttet: 4093<br>ARP-indtastninger: 4000<br>Multicas indgange (IPv4): 512<br>Multicast indgange (IPv6): 128<br>Jumbo-rammestørrelse: op til 12.000<br>IGMP multicast-grupper: 2000<br>MSTP-tilfælde: 16<br>PVST instanser: 32 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 12KB |
| Routingprotokol | IGMP, IGMPv2, IGMPv3, MLDv2, statisk IPv4 routing, statisk IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM |
| Protokol til fjernadministration | HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3 |
| Egenskaber | IGMP support, AVB, PoE timer, MIB support, RSPAN, LLDP-MED, politisk baseret routing, PTP, STP support, MTP, Rapid Reconfiguration of Spanning Tree (RSTP), BPDU, STRG, Root Guard, GVRP, GMRP, LACP support, DHCP snooping, DAI, IP-kildebekyttelse, DHCP videresendelse, LLDP support, AAA, sFlow, PIM, MVRP, LACP, LAG, Private VLAN, VLAN-understøttet, DHCP server, QoS, DoS attack beskyttelse, 16 MB pakkebuffer, blæserløs |
| Overensstemmelsesstandarder | IEEE 802.3at, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP) |
| Dimensioner (B x D x H) | 21 cm x 14 cm x 4 cm |
| Vægt | 965 g |
| Lokalisering | Europa |
| Producentgaranti | ProSAFE livstidsgaranti |
| Capacity | VLANs supported: 4093 | ARP entries: 4000 | Multicast entries (IPv4): 512 | Multicast entries (IPv6): 128 | Jumbo frame size: up to 12000 | IGMP multicast groups: 2000 | MSTP instances: 16 | PVST instances: 32 |
| Compliant Standards | CSA, BSMI, CB, CCC, KC, IEC 60950-1 Second Edition, EAC, RCM, IEC 62311, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN32 Class A, KN35 Class A, ISED, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), fanless, LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol ( |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 20 Gbps | Throughput (64-byte packet size): 14.88 Mpps | Latency (1 Gbps): &lt; 2.27 µs |
| PoE Budget | 110 W |
| Ports | 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP |
| Processor | X ARM A9: 1.25 GHz |
| RAM | 2 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Routing Protocol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
| Subtype | Gigabit Ethernet |
| Interfaces | 9 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) | 1 x 10GBase-X SFP | 1 x management (Gigabit LAN) RJ-45 | 1 x console RJ-45 | 1 x USB Type A | 1 x console (USB) Type C |
| Installed Qty | 1 |
| Power Device | External power adapter |
| Cables Included | USB-C to USB-A cable |
| Included Accessories | Mounting brackets, foot pad set, 2 x SFP slot caps |
| Localization | Europe |
| Rack Mounting Kit | Included |
| Depth | 14 cm |
| Height | 4 cm |
| Weight | 965 g |
| Width | 21 cm |
| Service & Support | Limited warranty - lifetime |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
