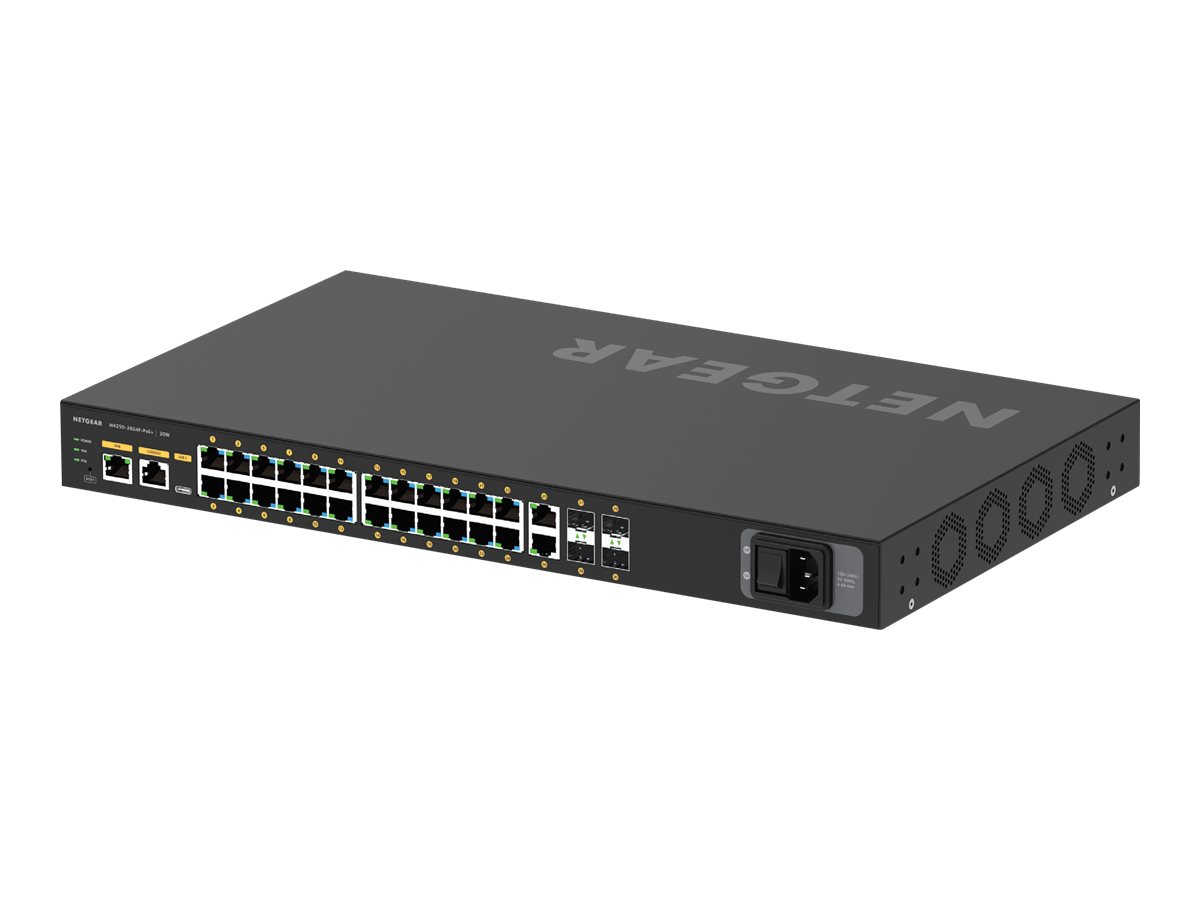

NETGEAR AV Line M4250-26G4F- Switch 24-porte Gigabit PoE+
€1468,94
NETGEAR AV Line M4250-26G4F-PoE+ - Switch - L3 - Administreret - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP - side til side-luftstrøm - monterbar på stativ - PoE+ (300 W)
Availability: In stock
Secure payment · Fast delivery
EAN:0606449151671Brand:
NETGEAR AV Line M4250-26G4F-PoE+ - Switch - L3 - Administreret - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP - side til side-luftstrøm - monterbar på stativ - PoE+ (300 W)
Specifications
Specifications
| Produktbeskrivelse | NETGEAR AV Line M4250-26G4F-PoE+ - switch - 24 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 24 porte - L3 - Administreret |
| Pakningstype | Side til side-luftstrøm monterbar på stativ 1U |
| Undertype | Gigabit Ethernet |
| Porte | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 300 W |
| Præstation | Omkoblingskapacitet: 60 Gbps<br>Firewall-gennemløb (64-byte pakkestørrelse): 44.64 Mpps<br>1 Gbps fiberlatens (64-byte pakker): 1.164 µs<br>1 Gbps fiberlatens (512-byte pakker): 1.129 µs<br>1 Gbps fiberlatens (1024-byte pakker): 1.124 μs<br>1 Gbps fiberlatens (1518-byte pakker): 1.146 μs<br>1 Gbps kobberlatens (64-byte pakker): 2.146 μs<br>1 Gbps kobberlatens (512-byte pakker): 2.148 μs<br>1 Gbps kobberlatens (1024-byte pakker): 2.14 μs<br>1 Gbps kobberlatens (1518-byte pakker): 2.15 μs |
| Kapacitet | ARP-indtastninger: 4000<br>NDP-indtastninger: 4000<br>Pakkebufferstørrelse: 16 MB<br>VLANs understøttet: 4093<br>IGMP multicast-grupper: 4000<br>QoS hardware køer: 8<br>IPv4 ruter (statisk): 64<br>IPv6 ruter (statisk): 64<br>RIP-applikationsruteskalering (IPv4): 32<br>IPv4-grupper (Multicast): 512<br>IPv6-grupper (Multicast): 128 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 12KB |
| Routingprotokol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Protokol til fjernadministration | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Egenskaber | Datatransport, auto-sensing per device, understøttet af BOOTP, IGMP snooping, portspejling, DiffServ understøttet, gem og send, MAC-adresse-filtrering, Broadcast Storm Control, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, SNTP-understøttet, WRED, sFlow, DHCP snooping, QoS, DHCP server, MDL snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP videresendelse, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dobbelt firmware-billeder, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x autentificering, PTP, DSCP support, kabeltest, MLD proxy, IP-kildebekyttelse, GMRP, SSM, DNS-klient, Voice VLAN, LLDP-MED, RA-værn, STP BPDU Guard, STP-løkkeværn, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Dimensioner (B x D x H) | 44 cm x 25.7 cm x 4.32 cm |
| Vægt | 4.3 kg |
| Lokalisering | Europa |
| Producentgaranti | ProSAFE livstidsgaranti |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | ARP entries: 4000 | NDP entries: 4000 | Packet buffer size: 16 MB | VLANs supported: 4093 | IGMP multicast groups: 4000 | QoS hardware queues: 8 | IPv4 routes (static): 64 | IPv6 routes (static): 64 | RIP application route scaling (IPv4): 32 | IPv4 g |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 12KB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 60 Gbps | Firewall throughput (64-byte packet size): 44.64 Mpps | 1 Gbps fiber latency (64-byte packets): 1.164 µs | 1 Gbps fiber latency (512-byte packets): 1.129 µs | 1 Gbps fiber latency (1024-byte packets): 1.124 μs | 1 Gbps f |
| PoE Budget | 300 W |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1000Base-X SFP |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Status Indicators | Port status, power, fan, PoE max |
| Subtype | Gigabit Ethernet |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 2 x 10/100/1000 Base-T RJ-45 | 4 x 1000Base-X SFP | 1 x management (Gigabit LAN) RJ-45 | 1 x management (RS-232) RJ-45 | 1 x USB-C | 1 x USB Type A |
| Installed Qty | 1 |
| Power Consumption Operational | 401 Watt |
| Power Consumption Stand by | 23.4 Watt |
| Power Device | Internal power supply |
| Cables Included | 1 x console cable | 1 x USB-C to USB-A cable |
| Included Accessories | Rubber feet, rubber caps |
| Localization | Europe |
| MTBF | 511,054 hours |
| Rack Mounting Kit | Included |
| Depth | 25.7 cm |
| Height | 4.32 cm |
| Weight | 4.3 kg |
| Width | 44 cm |
| Service & Support | Limited warranty - lifetime | Limited warranty - technical support - 90 days |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
