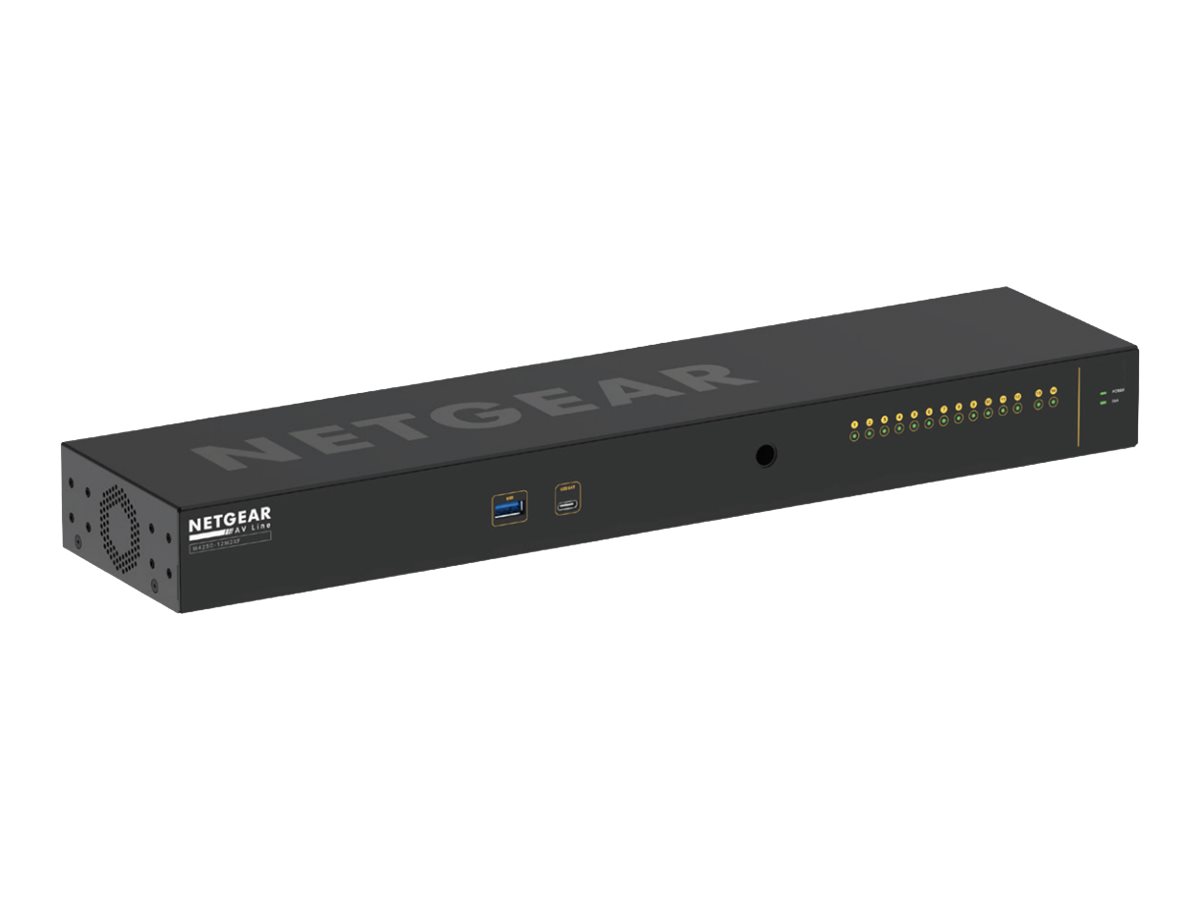

NETGEAR AV Line M4250-12M2XF Switch 14-porte 10 Gigabit
€1125,37
NETGEAR AV Line M4250-12M2XF - Switch - L3 - Administreret - 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ - side til side-luftstrøm - monterbar på stativ
Availability: In stock
Secure payment · Fast delivery
EAN:0606449149661Brand:
NETGEAR AV Line M4250-12M2XF - Switch - L3 - Administreret - 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ - side til side-luftstrøm - monterbar på stativ
Specifications
Specifications
| Produktbeskrivelse | NETGEAR AV Line M4250-12M2XF - switch - 14 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 14 porte - L3 - Administreret |
| Pakningstype | Side til side-luftstrøm monterbar på stativ 1U |
| Undertype | 10 Gigabit Ethernet |
| Porte | 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ |
| Præstation | Omkoblingskapacitet: 100 Gbps<br>Firewall-gennemløb (64-byte pakkestørrelse): 74.4 mpps<br>Latens (2,5 Gbps): 6.013 µs<br>Latens (10 Gbps): 0.807 µs |
| Kapacitet | VLANs understøttet: 4093<br>ARP-indtastninger: 4000<br>Multicas indgange (IPv4): 512<br>Multicast indgange (IPv6): 128<br>Jumbo-rammestørrelse: op til 12.000<br>IGMP multicast-grupper: 2000<br>MSTP-tilfælde: 16<br>PVST instanser: 32 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Routingprotokol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, MLDv2 |
| Protokol til fjernadministration | RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Egenskaber | VLAN-understøttet, DoS attack beskyttelse, sFlow, STP support, DHCP snooping, QoS, DHCP server, DAI, DHCP videresendelse, LACP, RSPAN, GVRP, MVRP, 16 MB pakkebuffer, IP-kildebekyttelse, BPDU, GMRP, STRG, politisk baseret routing, AAA, LLDP-MED, Private VLAN, PIM, Rapid Reconfiguration of Spanning Tree (RSTP), LAG |
| Overensstemmelsesstandarder | IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
| Dimensioner (B x D x H) | 44 cm x 10 cm x 4.32 cm |
| Vægt | 1.745 kg |
| Lokalisering | Europa |
| Producentgaranti | ProSAFE livstidsgaranti |
| Capacity | VLANs supported: 4093 | ARP entries: 4000 | Multicast entries (IPv4): 512 | Multicast entries (IPv6): 128 | Jumbo frame size: up to 12000 | IGMP multicast groups: 2000 | MSTP instances: 16 | PVST instances: 32 |
| Compliant Standards | CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2 |
| Device Type | Switch - 14 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (R |
| Flash Memory | 256 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 100 Gbps | Firewall throughput (64-byte packet size): 74.4 mpps | Latency (2.5 Gbps): 6.013 µs | Latency (10 Gbps): 0.807 µs |
| Ports | 12 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+ |
| Processor | X ARM A9: 1.25 GHz |
| RAM | 2 GB |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Routing Protocol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
| Status Indicators | Link/speed |
| Subtype | 10 Gigabit Ethernet |
| Interfaces | 12 x 10/100/1000/2.5G RJ-45 | 2 x 10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x console RJ-45 | 1 x USB Type A | 1 x console (USB) Type C |
| Installed Qty | 1 |
| Power Consumption Operational | 37.9 Watt |
| Power Consumption Stand by | 14.1 Watt |
| Power Device | Internal power supply |
| Cables Included | Console cable | USB-C to USB-A cable |
| Included Accessories | Mounting brackets |
| Localization | Europe |
| Rack Mounting Kit | Included |
| Depth | 10 cm |
| Height | 4.32 cm |
| Weight | 1.745 kg |
| Width | 44 cm |
| Service & Support | Limited warranty - lifetime |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
