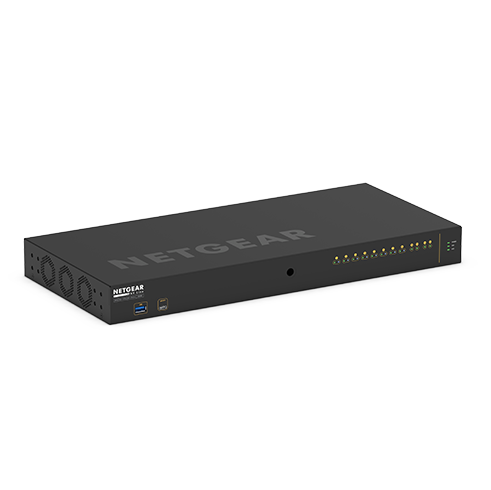

NETGEAR AV Line M4250-10G2XF- Switch 12-porte 10 Gigabit PoE+
NETGEAR M4250-10G2XF-PoE+. Switch-type: Administreret, Switch lag: L2/L3. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 10. Fuld duplex. MAC adresselabel: 16000 entries, Switch kapacitet: 60 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Strøm over Ethernet (PoE). Stativ-montering, Formfaktor: 1U
Availability: In stock
NETGEAR M4250-10G2XF-PoE+. Switch-type: Administreret, Switch lag: L2/L3. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 10. Fuld duplex. MAC adresselabel: 16000 entries, Switch kapacitet: 60 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Strøm over Ethernet (PoE). Stativ-montering, Formfaktor: 1U
Specifications
| Switch-type | Administreret |
| Basis omskiftning RJ-45 Ethernet porte, antal | 10 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G understøttelse | Ingen |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 60 Gbit/sek. |
| Stativ-montering | Ja |
| Strøm over Ethernet (PoE) | Ja |
| Capacity | VLANs supported: 4093 | ARP entries: 4000 | Multicast entries (IPv4): 512 | Multicast entries (IPv6): 128 | Jumbo frame size: up to 12000 | IGMP multicast groups: 2000 | MSTP instances: 16 | PVST instances: 32 |
| Compliant Standards | CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2 |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
| Features | VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (R |
| Flash Memory | 256 MB |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 60 Gbps | Firewall throughput (64-byte packet size): 44.64 Mpps | Latency (1 Gbps): < 2.14 µs | Latency (10 Gbps): < 0.84 µs |
| PoE Budget | 240 W |
| Ports | 10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | X ARM A9: 1.25 GHz |
| RAM | 2 GB |
| Remote Management Protocol | RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
| Routing Protocol | RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
| Subtype | 10 Gigabit Ethernet |
| Interfaces | 10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) | 2 x 10GBase-X SFP+ | 1 x management (Gigabit LAN) RJ-45 | 1 x console RJ-45 | 1 x USB Type A | 1 x console (USB) Type C |
| Installed Qty | 1 |
| Power Consumption Operational | 25 Watt |
| Power Consumption Stand by | 12.96 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 110 V |
| Cables Included | Console cable | USB-C to USB-A cable |
| Included Accessories | Mounting brackets, foot pad set, 2 x SFP slot caps |
| Localization | Europe |
| Rack Mounting Kit | Included |
| Depth | 20 cm |
| Height | 4.32 cm |
| Weight | 2.9 kg |
| Width | 44 cm |
| Service & Support | Limited warranty - lifetime |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
