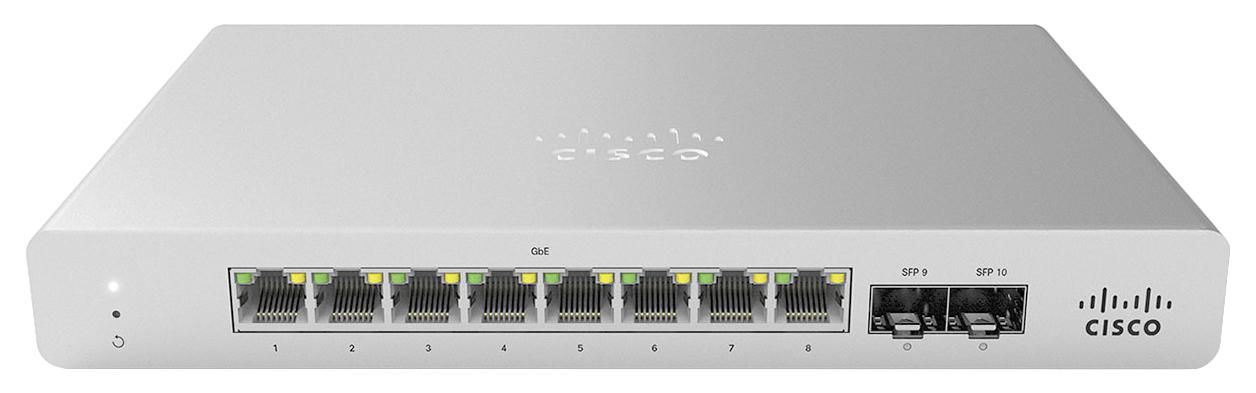

Meraki MS120-8FP Managed L2
€614,15
Meraki MS120-8FP Managed L2
Availability: In stock
Secure payment · Fast delivery
EAN:W128415251Brand:
Meraki MS120-8FP Managed L2
Specifications
Specifications
| Data transmission | Jumbo frames 9600 Jumbo frames support Yes MAC address table 16000 entriesSwitching capacity 20 Gbit/s |
| Jumbo frames | 9600 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Design | Product colour Grey Rack mounting No Wall mountable Yes |
| Product colour | Grey |
| Rack mounting | No |
| Wall mountable | Yes |
| Management features | Quality of Service (QoS) support Yes Switch layer L2 Switch type Managed Web-based management Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | Multicast support Yes |
| Multicast support | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w |
| Number of VLANs | 4094 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operational conditions | Operating relative humidity (H-H) 5 - 95 %Operating temperature (T-T) 0 - 40 °C |
| Operating relative humidity (H-H) 5 - 95 % | Operating temperature (T-T) 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 56 V |
| Input current | 2.7 A |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Protocols | Management protocols SNMP Switching protocols RSTP, STP, LLDP, CDP |
| Management protocols SNMP | Switching protocols RSTP, STP, LLDP, CDP |
| Management protocols | SNMP |
| Switching protocols | RSTP, STP, LLDP, CDP |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Root protection | Yes |
| Vendor information | Brand Name Cisco Warranty 1 År |
| Brand Name Cisco | Warranty 1 År |
| Brand Name | Cisco |
| Warranty | 1 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
