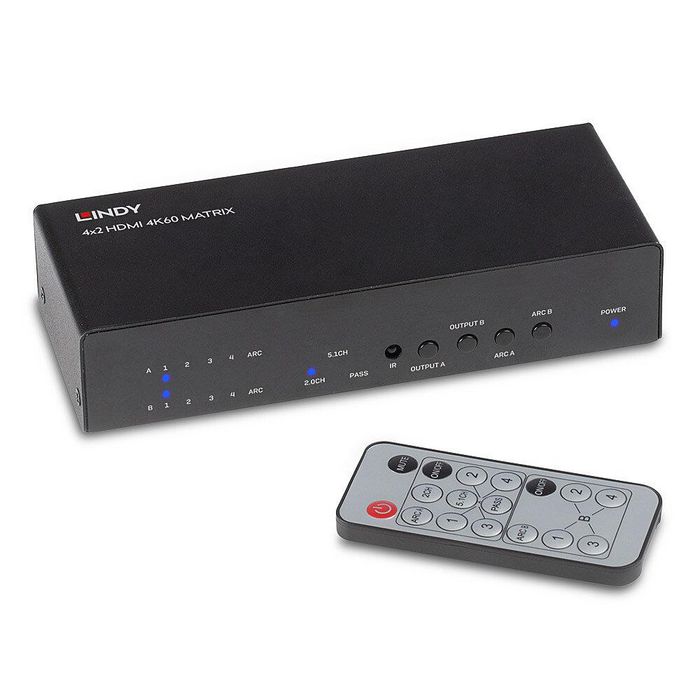

Lindy Matrix Switch, HDMI 2.0, 18Gbps, HDCP 2.2, 125x95x25 mm
The Lindy 4x2 HDMI 2.0 18G Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays. Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen. This matrix can be easily controlled via push but
Availability: In stock
The Lindy 4x2 HDMI 2.0 18G Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays. Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen. This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Specifications
| Housing colour | Black |
| Housing material | Metal |
| Built-in display | No |
| Bandwidth | 18 Gbit/s |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Product type | AV matrix switcher |
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Digital audio optical out | 1 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 2 |
| USB ports quantity | 1 |
| Output current | 1000 mA |
| Output voltage | 5 V |
| Brand Name | Lindy |
| Warranty | 2 years |
