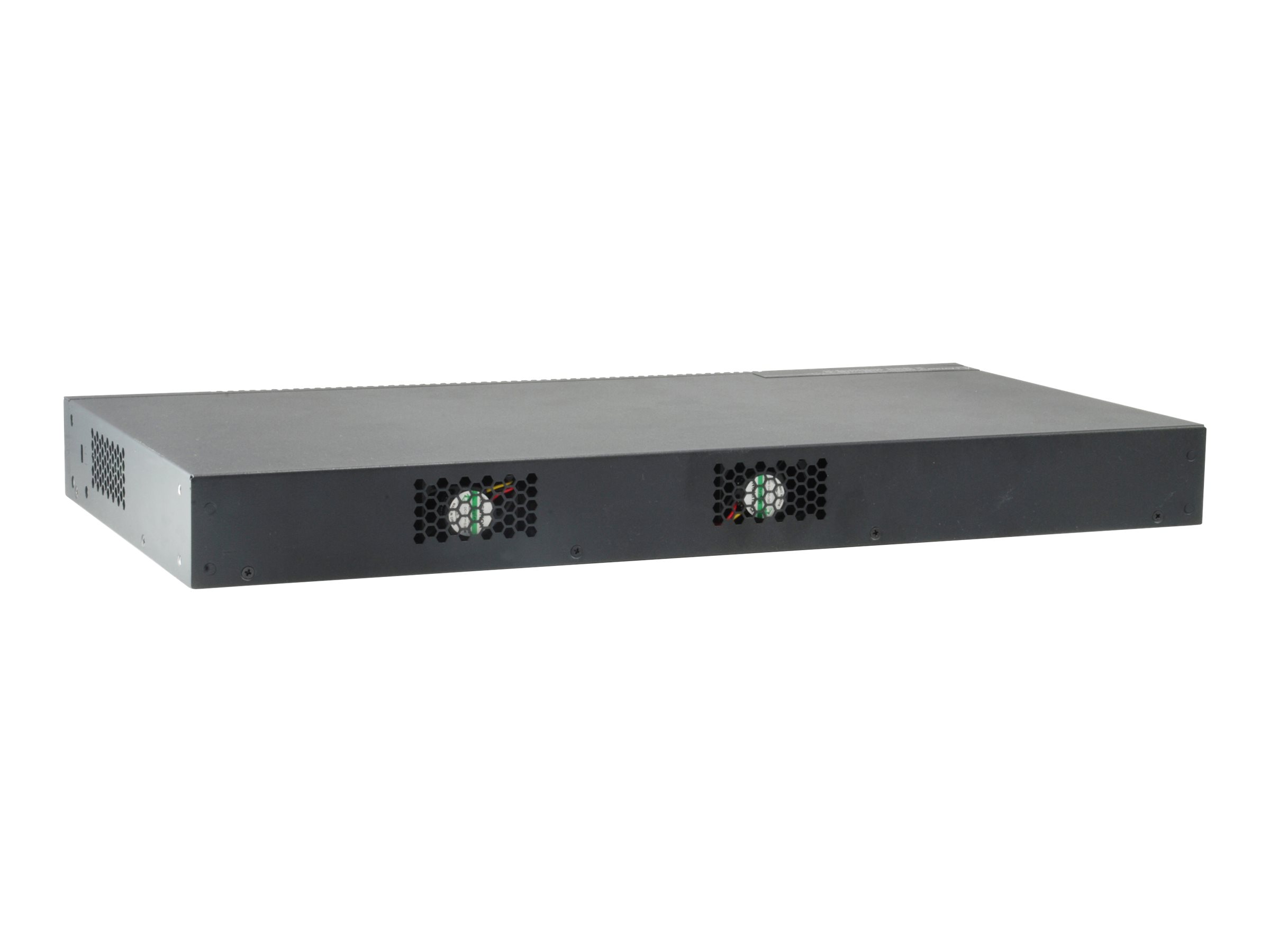

LevelOne KILBY GTL-2872 Switch 28-porte Gigabit
€802,53
LevelOne KILBY GTL-2872 - Switch - L3 Lite - Administreret - 20 x Gigabit SFP + 4 x delt 10/100/1000 + 4 x 10 Gigabit SFP+ - monterbar på stativ - AC 120/230 V / DC 48 - 60 V
Availability: In stock
Secure payment · Fast delivery
EAN:4015867203064Brand:
LevelOne KILBY GTL-2872 - Switch - L3 Lite - Administreret - 20 x Gigabit SFP + 4 x delt 10/100/1000 + 4 x 10 Gigabit SFP+ - monterbar på stativ - AC 120/230 V / DC 48 - 60 V
Specifications
Specifications
| Produktbeskrivelse | LevelOne KILBY GTL-2872 - switch - 28 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 28 porte - L3 Lite - Administreret |
| Pakningstype | Monterbar på stativ |
| Undertype | Gigabit Ethernet |
| Porte | 20 x Gigabit SFP + 4 x delt 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Præstation | Bagplanshastighed: 128 Gbps<br>Pakkevideresendelseshastighed: 95 Mbps<br>Omkoblingskapacitet: 128 Gbps |
| Kapacitet | VLANs understøttet: 4000 |
| MAC adresse table størrelse | 16K indtastningshukommelse |
| Jumborammesupport | 9KB |
| Routingprotokol | IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLD |
| Protokol til fjernadministration | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, CLI, OAM |
| Egenskaber | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 understøttet, halv dupleksmodus, fuld dupleksmodus, STP support, RSTP support, MSTP support, ACL support, DAI, PVST+, IPv4 support, LACP, Port Security, GVRP, Loopback, IGMP proxy, 802.1x autentificering, IGMP-filtrering, IGMP-drosling, Protokol-baseret VLANs support, Back Pressure Support, VTP, DDM, IGMP-forespørger, VLAN Double Tagging (Q-in-Q), Guest VLAN, EEE, MAC based VLAN, Layer 2 Control Protocol-tunnel, portbaseret VLAN, IGMP omgående forlad, ARP spoofing, VLAN trunking |
| Overensstemmelsesstandarder | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3az, ITU-T Y.1731 |
| Effekt | AC 120/230 V / DC 48 - 60 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44 cm x 22 cm x 4.4 cm |
| Vægt | 3.32 kg |
| Capacity | VLANs supported: 4000 |
| Compliant Standards | BSMI, FCC, UL 60950-1, CISPR |
| Device Type | Switch - 28 ports - L3 Lite - managed |
| Enclosure Type | Rack-mountable |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance | Backplane speed: 128 Gbps | Packet forwarding rate: 95 Mbps | Switching capacity: 128 Gbps |
| Ports | 20 x Gigabit SFP + 4 x shared 10/100/1000 + 4 x 10 Gigabit SFP+ |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, CLI, OAM |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD |
| Status Indicators | Power, link/activity, diagnostic |
| Subtype | Gigabit Ethernet |
| Interfaces | 20 x 1000Base-X SFP | 4 x Gigabit LAN RJ-45/SFP | 4 x 10GBase-X SFP+ | 1 x console RJ-45 |
| Power Consumption Operational | 21.48 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V / DC 48 - 60 V (50/60 Hz) |
| MTBF | 298,951 hours |
| Rack Mounting Kit | Included |
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 3.32 kg |
| Width | 44 cm |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
