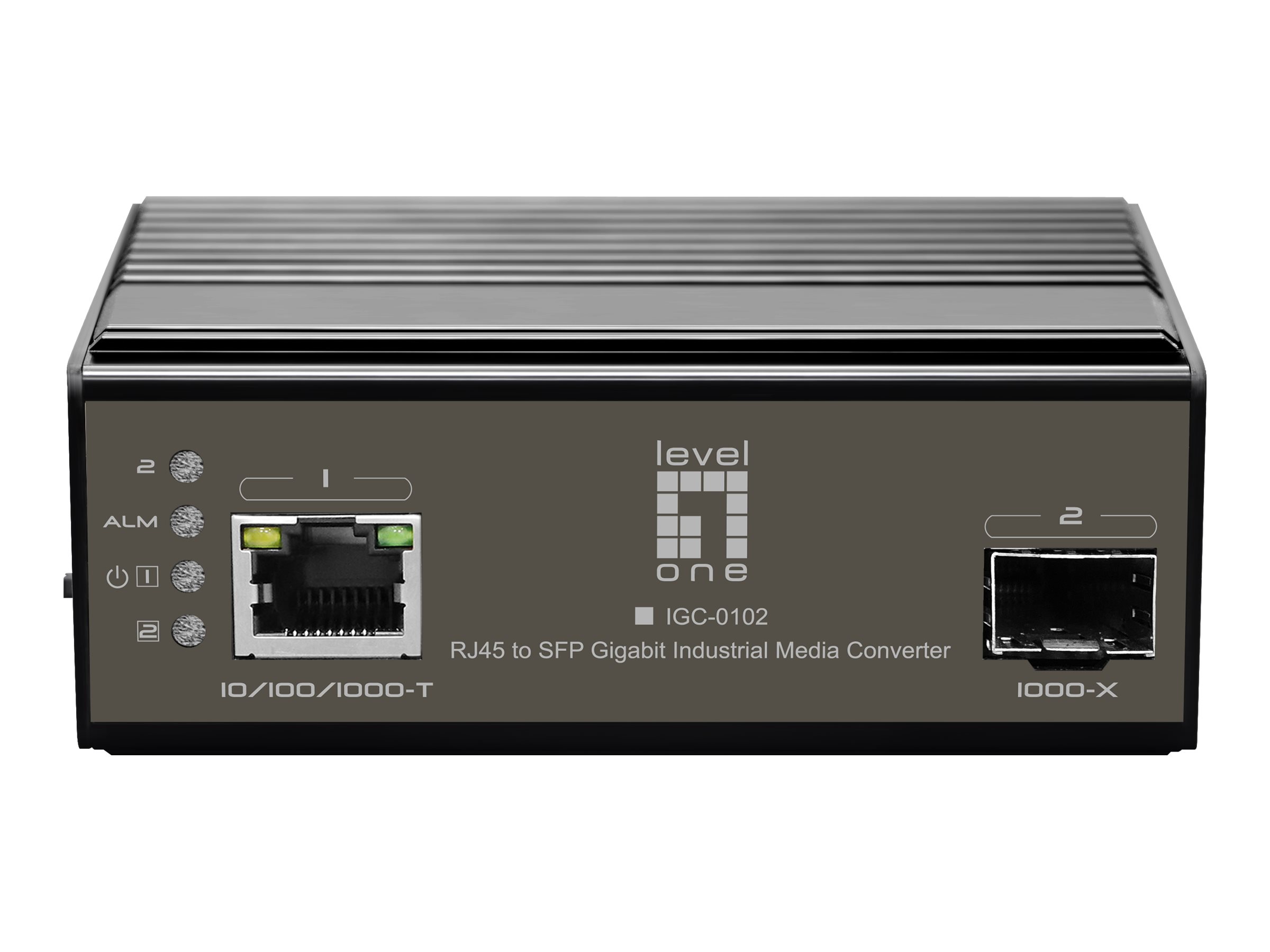

LevelOne IGC-0102 Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet
€100,82
LevelOne IGC-0102 - Fibermedieomformer - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
Availability: In stock
Secure payment · Fast delivery
EAN:4015867223949Brand:
LevelOne IGC-0102 - Fibermedieomformer - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
Specifications
Specifications
| Produktbeskrivelse | LevelOne IGC-0102 - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / SFP (mini-GBIC) |
| Model | Monterbar på DIN rail |
| Kabeltype | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Effekt | DC 12 - 60 V |
| Dimensioner (B x D x H) | 10.1 cm x 6.5 cm x 3.6 cm |
| Vægt | 300 g |
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Compliant Standards | FCC Part 15 B, EN 61000-4-2, EN 61000-4-5 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Features | Digital Diagnostics Monitoring Interface (DDMI), metal housing, 6KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge) |
| Status Indicators | Power, alarm, link/activity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-X - SFP | 1 x relay |
| Included Accessories | Power terminal block |
| Max Supported Qty | 2 |
| Power Consumption Operational | 5 Watt |
| Power Redundancy | Optional |
| Voltage Required | DC 12 - 60 V |
| Depth | 6.5 cm |
| Height | 3.6 cm |
| Weight | 300 g |
| Width | 10.1 cm |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
