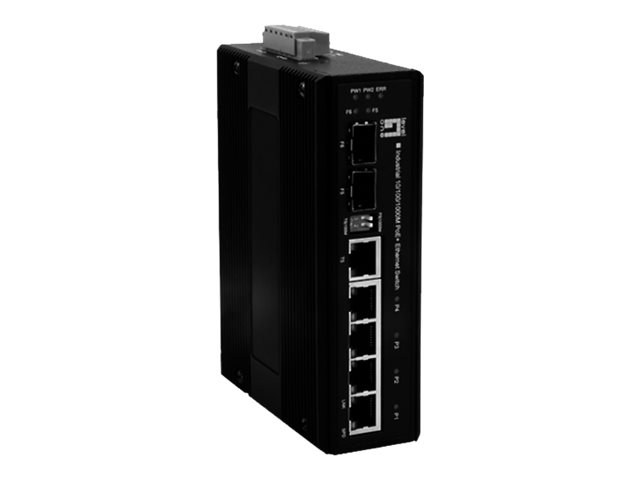

LevelOne IES-0620 Switch Gigabit PoE+
€456,79
LevelOne IES-0620 - Switch - ikke administreret - 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP - DIN monterbar på skinne - PoE+ (126 W) - DC strøm
Availability: In stock
Secure payment · Fast delivery
EAN:4015867188514Brand:
LevelOne IES-0620 - Switch - ikke administreret - 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP - DIN monterbar på skinne - PoE+ (126 W) - DC strøm
Specifications
Specifications
| Produktbeskrivelse | LevelOne IES-0620 - switch - ikke administreret |
| Enhedstype | Switch - ikke administreret |
| Undertype | Gigabit Ethernet |
| Porte | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE-budget | 126 W |
| Præstation | Fremsendelsespræstation: 1488000 pps<br>Bagplanshastighed: 12 Gbps |
| MAC adresse table størrelse | 1 K indtastningshukommelse |
| Jumborammesupport | 10KB |
| Egenskaber | Datatransport, auto-negotiation, auto-uplink (auto MDI/MDI-X), gem og send, halv dupleksmodus, fuld dupleksmodus, 1 MB pakkebuffer, PoE-overstrømsbeskyttelse, PoE-kredsløbssorteringsbeskyttelse |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Effekt | DC 12 - 55 V |
| Overskudsspænding | Ja |
| Dimensioner (B x D x H) | 4 cm x 10.5 cm x 3.8 cm |
| Vægt | 720 g |
| Compliant Standards | EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, FCC Part 15 B Class A, IP30 |
| Device Type | Switch - unmanaged |
| Enclosure Type | DIN rail mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, 1MB packet buffer, PoE overcurrent protection, PoE circuit sorting protection |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 1K entries |
| Performance | Forwarding performance: 1488000 pps | Backplane speed: 12 Gbps |
| PoE Budget | 126 W |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP + 1 x combo Gigabit SFP |
| Status Indicators | Port transmission speed, power, link/activity |
| Subtype | Gigabit Ethernet |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W | 2 x 1000Base-X SFP | 1 x 1000Base-T RJ-45 |
| Power Consumption Operational | 6 Watt |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 55 V |
| Depth | 10.5 cm |
| Height | 3.8 cm |
| Weight | 720 g |
| Width | 4 cm |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
