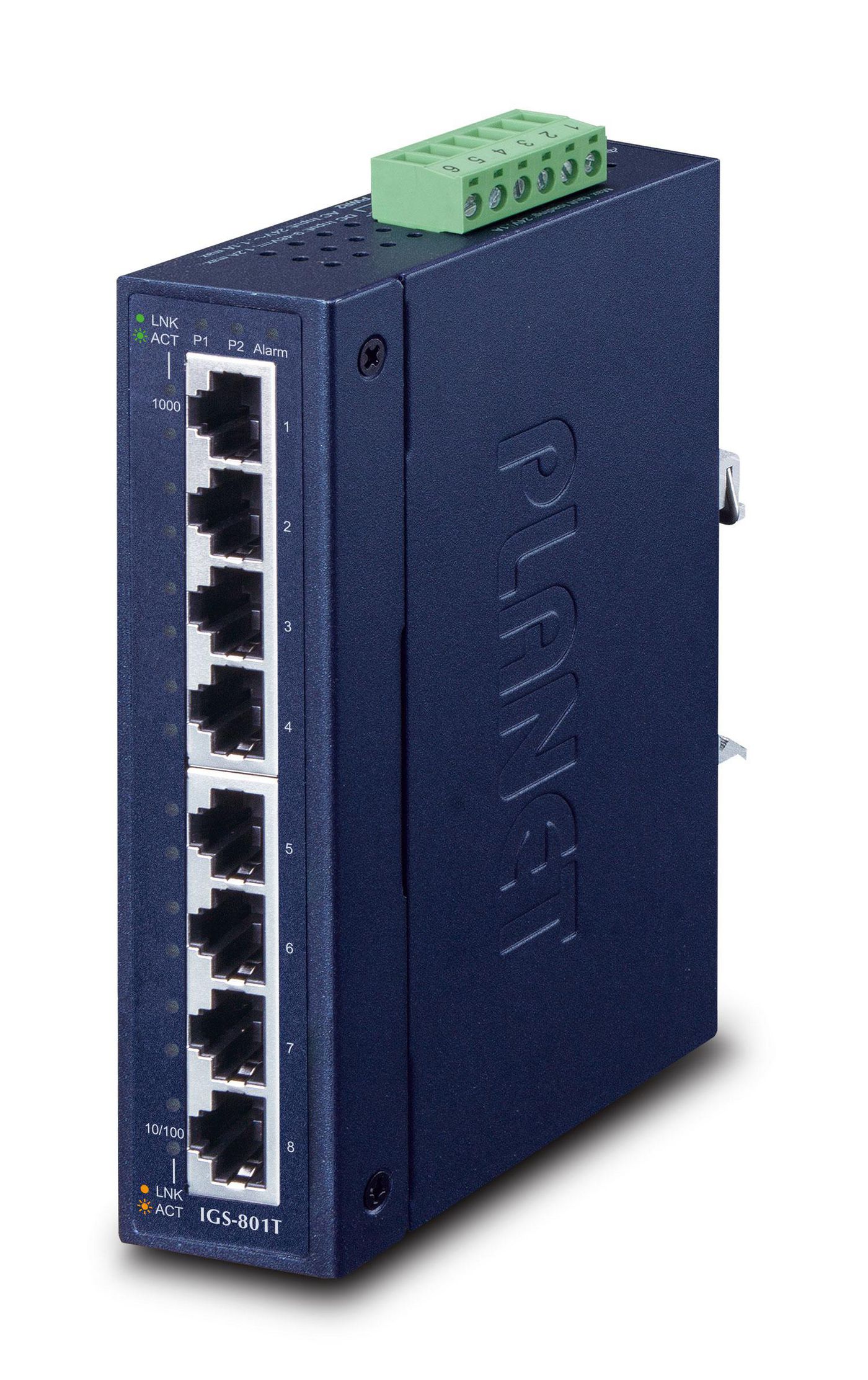

IP30 Slim type 8-P Industrial
€120,90
IP30 Slim type 8-P Industrial
Availability: In stock
Secure payment · Fast delivery
EAN:4711213687792Brand:
IP30 Slim type 8-P Industrial
Specifications
Specifications
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 11,9 Mpps |
| Certification | FCC, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| Product colour | Blue |
| Rack mounting | No |
| Wall mountable | Yes |
| Management features | Quality of Service (QoS) support Yes Switch layer L2 Switch type Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Heat dissipation | 23 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 75 °C |
| Other features | Terminal block port Yes |
| Terminal block port | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power | Power consumption (typical) 6,72 WRedundant power supply (RPS) support Yes |
| Power consumption (typical) 6,72 W | Redundant power supply (RPS) support Yes |
| Power consumption (typical) | 6,72 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
