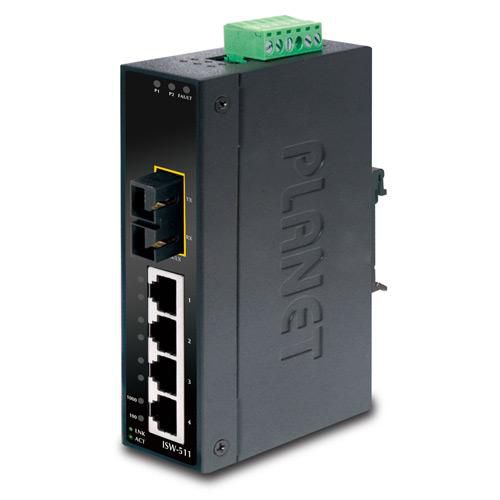

IP30 Slim Type 4-P Industrial
€34,85
IP30 Slim Type 4-P Industrial
Availability: In stock
Secure payment · Fast delivery
EAN:4711213688652Brand:
IP30 Slim Type 4-P Industrial
Specifications
Specifications
| Data transmission | MAC address table 2048 entriesStore-and-forward Yes Switching capacity 1 Gbit/sThroughput 0,74 Mpps |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Switching capacity | 1 Gbit/s |
| Throughput | 0,74 Mpps |
| Certification | FCC, CE, UL, cUL |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Stackable | Yes |
| Wall mountable | Yes |
| Management features | Switch layer L2 Switch type Unmanaged |
| Switch layer L2 | Switch type Unmanaged |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Heat dissipation | 31 BTU/h |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber type | Multi-mode |
| RX sensitivity | -34,5 dB |
| Transmission distance (max) | 2 km |
| Wavelength | 1300 nm |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Fiber ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power | Power consumption (typical) 9,1 WPower supply included Yes Redundant power supply (RPS) support Yes |
| Power consumption (typical) | 9,1 W |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
