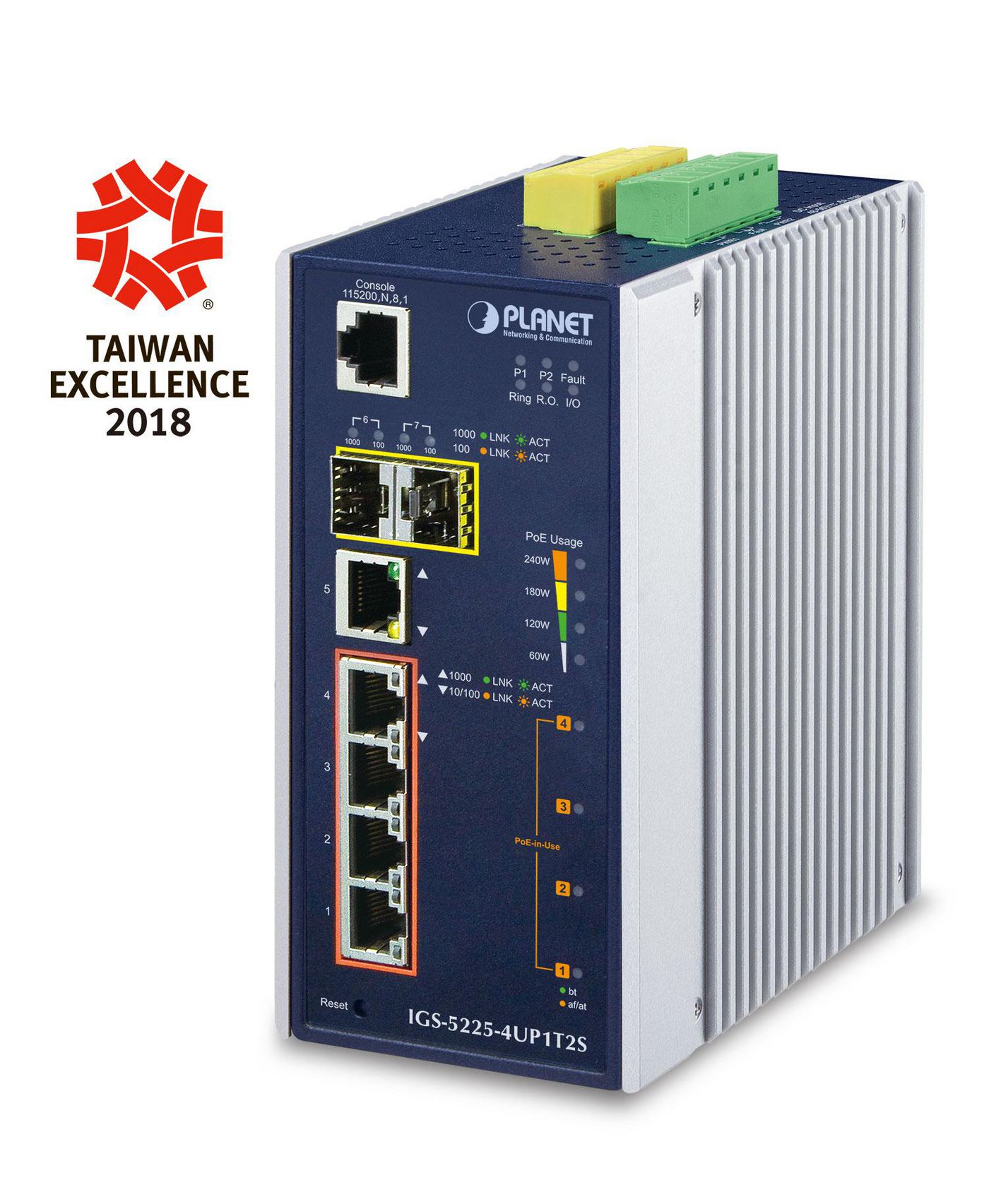

IP30 Industrial L2+/L4 4-Port
€405,84
IP30 Industrial L2+/L4 4-Port
Availability: In stock
Secure payment · Fast delivery
EAN:4711605282444Brand:
IP30 Industrial L2+/L4 4-Port
Specifications
Specifications
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Number of static routes | 32 |
| Packet buffer memory | 4 MB |
| Static route | Yes |
| Store-and-forward | Yes |
| Switching capacity | 14 Gbit/s |
| Throughput | 10,42 Mpps |
| Certification | FCC Part 15 Class A, CE, IEC60068-2-27 (shock), IEC60068-2-32 (free fall), IEC60068-2-6 (vibration) |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | LAN, PoE, System |
| Product colour | Blue, Silver |
| Reset button | Yes |
| Wall mountable | Yes |
| Management features | Quality of Service (QoS) support Yes Switch layer L2+ Switch type Managed Web-based management Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast features | Multicast support Yes |
| Multicast support | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4095 |
| Port mirroring | Yes |
| Routing entries | 32 |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Heat dissipation | 962,22 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Optical fiber | Fiber ethernet cabling technology 1000BASE-FX, 1000BASE‑BX, 1000BASE‑LX |
| Fiber ethernet cabling technology | 1000BASE-FX, 1000BASE‑BX, 1000BASE‑LX |
| Other features | Terminal block port Yes |
| Terminal block port | Yes |
| Performance | Firmware upgradeable Yes |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power | DC input voltage 48 - 56 VSurge protection Yes Surge protection voltage 6 kV |
| DC input voltage | 48 - 56 V |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 72 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 123 |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
