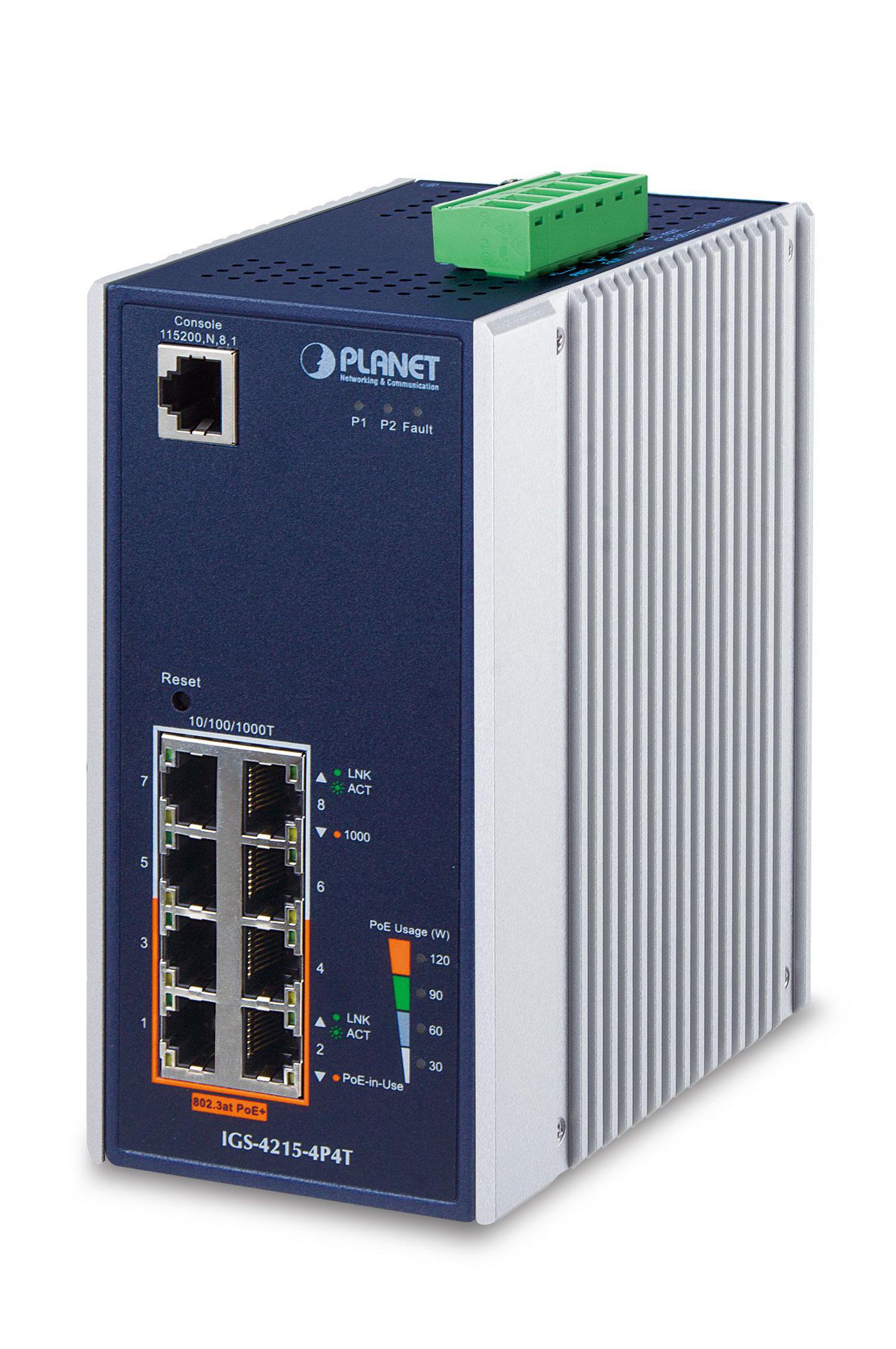

IP30 Industrial L2/L4 4-Port
€295,72
IP30 Industrial L2/L4 4-Port
Availability: In stock
Secure payment · Fast delivery
EAN:4711605281591Brand:
IP30 Industrial L2/L4 4-Port
Specifications
Specifications
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of trunks | 4 |
| Packet buffer memory | 4,1 MB |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 11,9 Mpps |
| Certification | FCC 15 A, CE |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| LED indicators | Activity, Link, PoE, Power, Power fail, System |
| Product colour | Blue, White |
| Reset button | Yes |
| Safety | IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
| Wall mountable | Yes |
| ARP inspection | Yes |
| MIB support | RFC 1213, RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L4 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | Multicast support Yes Number of multicast groups filtered 256 |
| Multicast support Yes | Number of multicast groups filtered 256 |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | Terminal block port Yes |
| Terminal block port | Yes |
| Performance | Firmware upgradeable Yes |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power | DC input voltage 48 - 56 VInput current 3.5 APower consumption (max) 151,28 WPower consumption (typical) 7,28 W |
| DC input voltage | 48 - 56 V |
| Input current | 3.5 A |
| Power consumption (max) | 151,28 W |
| Power consumption (typical) | 7,28 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Total Power over Ethernet (PoE) budget | 144 W |
| Access Control List (ACL) | Yes |
| Authentication | Port-based authentication |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| Security algorithms | 128-bit SSL, 802.1x RADIUS, SNMP, SSH |
| Static port security | Yes |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Switches Underkategori Network Switches |
| Hovedkategori | Network |
| Underkategori | Network Switches |
