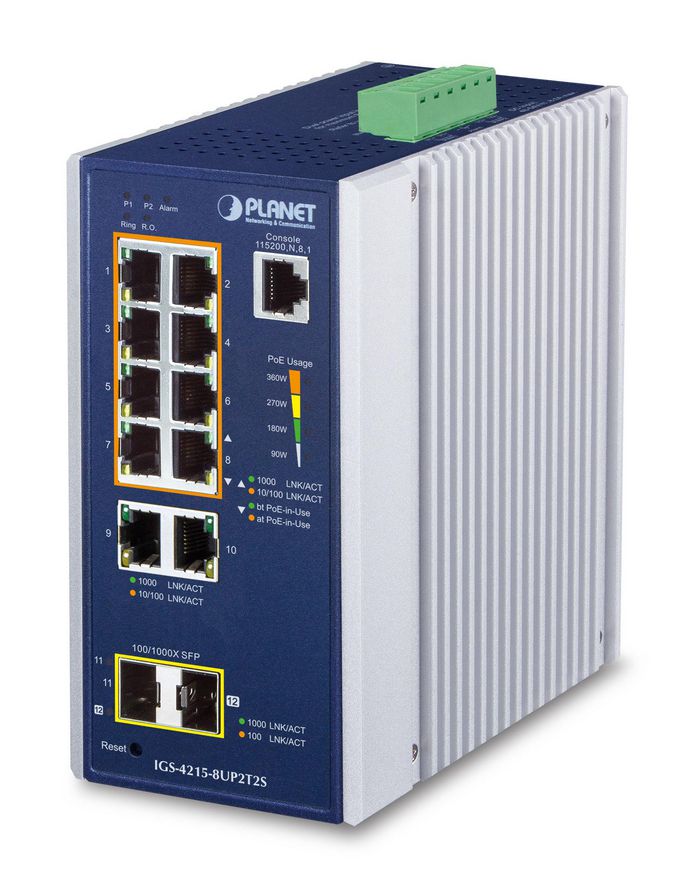

Planet IGS-4215-8UP2T2S
IP30 Industrial L2/L4 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, 8-port 95W PoE++, 802.3bt/Legacy/Force modes, dual redundant power input on 48~54VDC terminal block, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, 250m Extend mode, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
Availability: In stock
IP30 Industrial L2/L4 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, 8-port 95W PoE++, 802.3bt/Legacy/Force modes, dual redundant power input on 48~54VDC terminal block, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, 250m Extend mode, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)
Specifications
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 24 Gbit/s |
| Throughput | 17.85 Mpps |
| Certification | EN 55032, EN 55035, FCC Part 15 Class A, ICES-003 issue 7, IEC 60068-2-27 (shock), IEC 60068-2-32 (free fall), IEC 60068-2-6 (vibration) |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Aluminium, Blue |
| Reset button | Yes |
| Wall mountable | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L4 |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| DHCP features | DHCP Option 82, DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| Brand Name | Planet |
