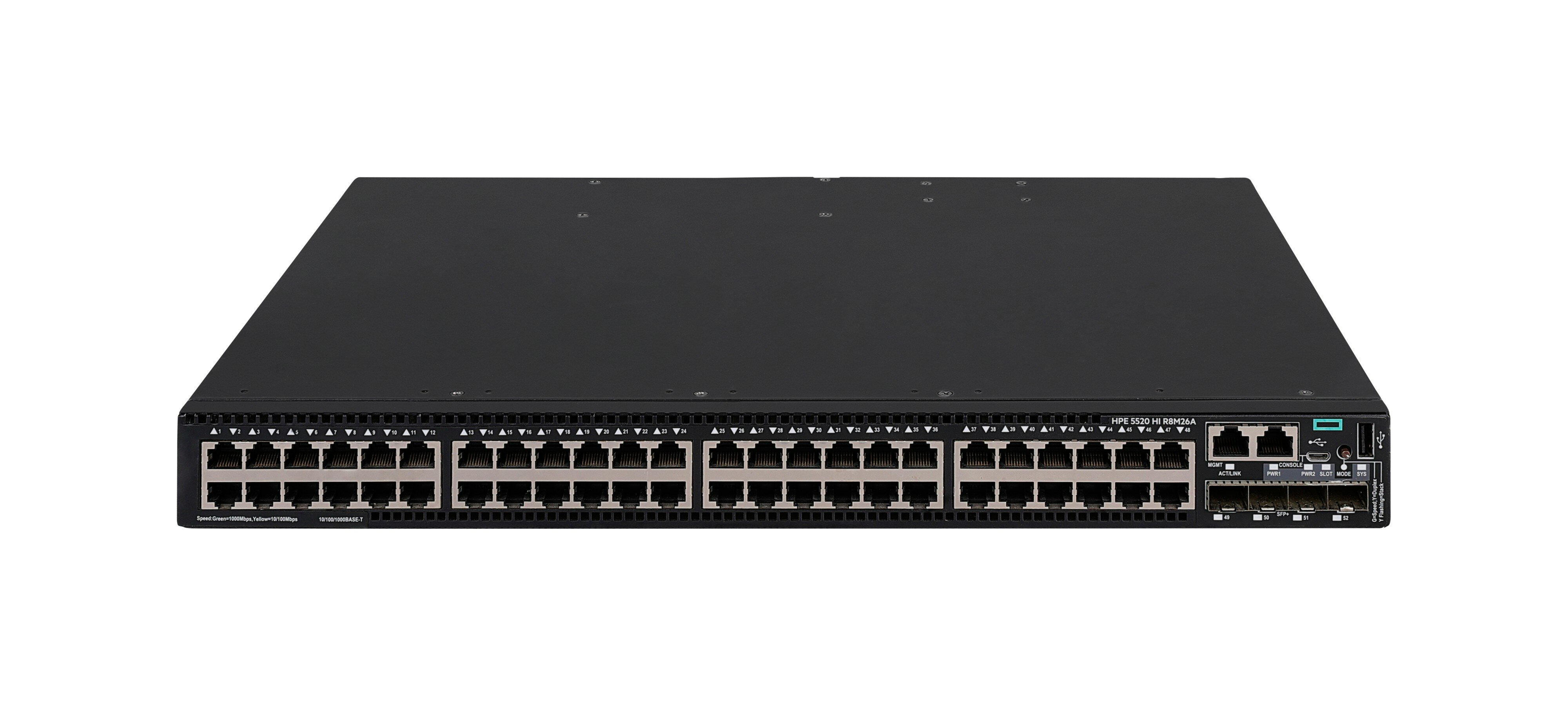

HPE FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch Switch 48-porte 10 Gigabit Ethernet
€8990,96
HPE FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch - Switch - L3 - Administreret - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side til ryg-luftstrøm - monterbar på stativ - CTO
Availability: In stock
Secure payment · Fast delivery
EAN:0190017526089Brand:
HPE FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch - Switch - L3 - Administreret - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side til ryg-luftstrøm - monterbar på stativ - CTO
Specifications
Specifications
| Produktbeskrivelse | HPE FlexNetwork 5520 48G 4SFP+ HI 1-slot Switch - switch - 48 porte - Administreret - monterbar på stativ |
| Enhedstype | Switch - 48 porte - L3 - Administreret - kan stables |
| Pakningstype | Side til ryg-luftstrøm monterbar på stativ 1U |
| Undertype | 10 Gigabit Ethernet |
| Porte | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Præstation | Latens (1000 Mbps): 5 µs<br>Latens (10 Gbps): 3 µs<br>Kapacitet: 180 Mbps<br>Routing/switching kapacitet: 288 Gbps |
| Kapacitet | IPv4 indtastning i routing-tabel: 32768<br>IPv6 indtastning i routing-tabel: 16384 |
| MAC adresse table størrelse | 64K indtastningshukommelse |
| Jumborammesupport | 10.000 byte |
| Routingprotokol | OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, statisk IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, statisk IPv4 routing, statisk IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR |
| Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS |
| Egenskaber | Datatransport, Layer 3 switching, DHCP-understøttelse, understøttet af BOOTP, understøttet af ARP, understøttet af MPLS, VLAN-understøttet, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog understøttet, DiffServ understøttet, WRR kø, IPv6 understøttet, fuld dupleksmodus, WFQ, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MDL snooping, DLDP support, RRPP, ECMP, BFD, STP Root Guard, IPv4 support, DWRR, LLDP support, DHCP videresendelse, LACP, Port Security, Energy Efficient Ethernet, dynamisk ARP beskyttelse, DHCP beskyttelse, MVRP, portisolering, SP, GARP, 4 MB pakkebuffer, 802.1x autentificering, ToS, MACsec support, OpenFlow support, VPLS, IP-kildebekyttelse, ICMP IRDP, Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, WRR, hot swap-blæserbakke, LPM support, IRF Technology, BPDU-beskyttelse, UDP support, MRP |
| Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| Effekt | AC 100-240 V (50/60 Hz) - strømforsyning ikke installeret |
| Dimensioner (B x D x H) | 44 cm x 36 cm x 4.36 cm |
| Vægt | 7 kg |
| Pristype | CTO |
| Producentgaranti | Begrænset livtidsgaranti |
| Ports | (48) RJ-45 autosensing 10/100/1000 BASE-T ports Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. |
| Memory and processor | 2 GB SDRAM Packet buffer size: 4 MB, 512 MB flash |
| Latency | 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs |
| Throughput | up to 180 Mpps |
| Routing/switching capacity | 336 Gbps |
| Switching capacity | 336 Gbps |
| Stacking capabilities | IRF 9 switches |
| Management features | IMC - Intelligent Management Center Command-line interface SNMP manager |
| Input voltage | 90 to - 264 VAC and -36 to -72 VDC |
| Power consumption | 150W (maximum) |
| Heat dissipation | Ranges from 81 BTU/hr to 327BTU/hr depending on power supply configuration |
| Product dimensions (metric) | 44 X 36 X 4.36 cm |
| Weight | ≤7.0kg |
