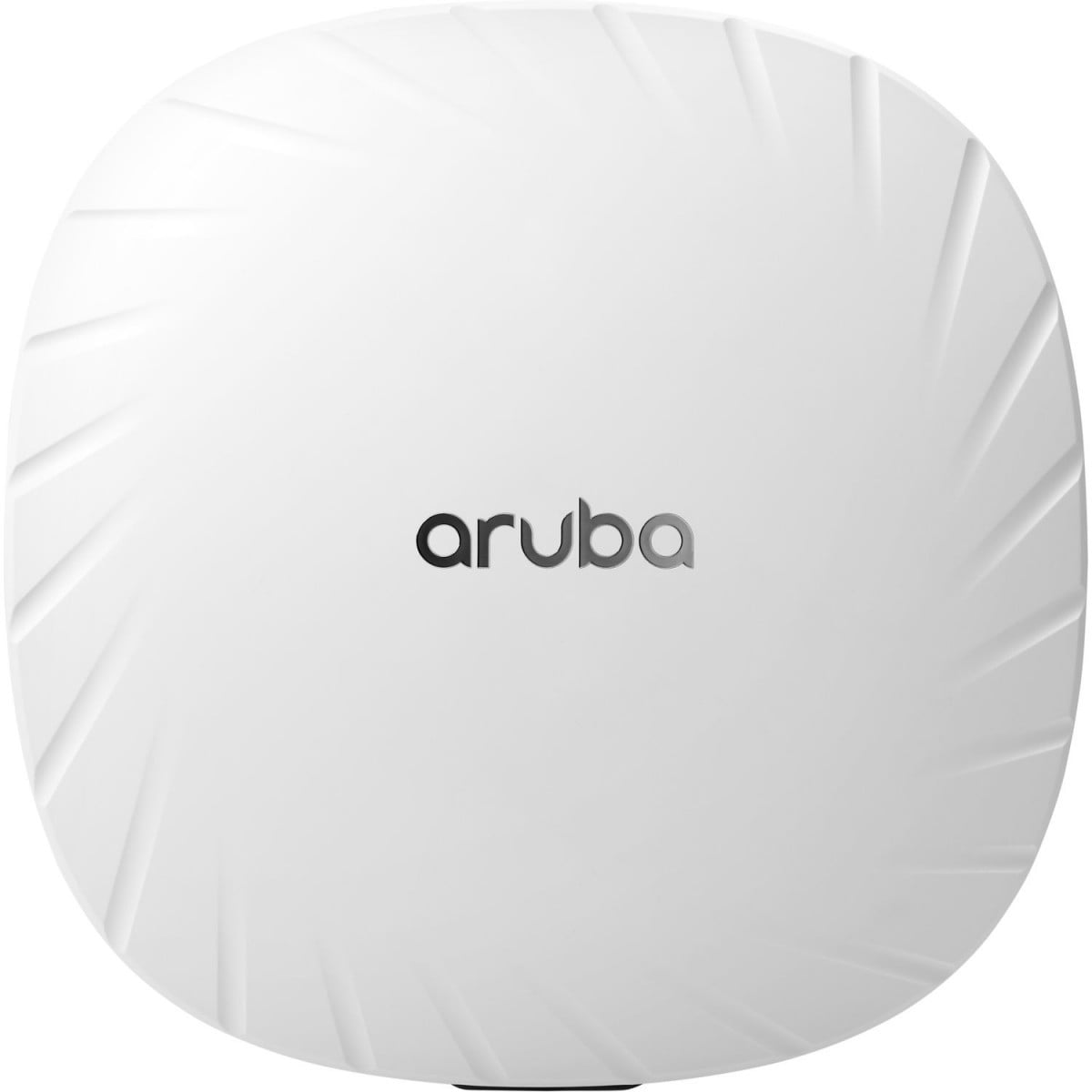

HPE Aruba AP-515 (RW) Wireless connection White WiFi Access Point
- HPE Aruba AP 515 (RW) Wireless connection Bluetooth, Wi Fi 6 2.4 GHz, 5 GHz in the ceiling
Availability: In stock
Product description: HPE Aruba AP-515 (RW) - wireless connection - Bluetooth, Wi-Fi 6 Device type: Wireless connection Form factor: In the ceiling - indoors Data connection protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) Frequency band: 2.4 GHz, 5 GHz Performance: Maximum data rate (2.4 GHz): 575 Mbps Maximum data rate (5 GHz): 4.8 Gbps Total bandwidth: 5.4 Gbps Capacity: Wireless clients per WiFi radio: 256 OFDMA units: 16 BSSIDs per radio: 16 OS required: ArubaOS, InstantOS Power Over Ethernet (PoE) supported: PoE Dimensions (W x D x H): 20 cm x 20 cm x 4.6 cm Weight: 810 g Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Width | 20 cm |
| Depth | 20 cm |
| Device type | Wireless connection |
| Height | 4.6 cm |
| Robust design for outdoor use | Indoors |
| Weight | 810 g |
| Data connection protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Data transfer speed | 4.8 Gbps |
| Characteristics | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Switching Diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (I |
| Connection technology | Wireless |
| Frequency band | 2.4 GHz, 5 GHz |
| Capacity | Wireless clients per WiFi radio: 256 | OFDMA units: 16 | BSSIDs per radio: 16 |
| Encryption algorithm | WPA, WPA2, WPA3 |
| Line encoding format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Model | In the ceiling |
| Compliance Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps | Maximum data rate (5 GHz): 4.8 Gbps | Total bandwidth: 5.4 Gbps |
| Spread-spectrum method | OFDM, DSSS |
| Status indicators | System, status |
| Number of antennas | 4 |
| Antenna | Internal |
| Directivity | Omni-directional |
| Reinforcement | 7.5 dBi |
| Internet of Things (IoT) compliant | Yes |
| Communication technology | Bluetooth, Zigbee |
| Interface | 1 x HPE Smart Rate - RJ-45 | 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 1 x console - micro-USB |
| MTBF (expected time between failures) | 64 years |
| Compliance Standards | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3 |
| Power Over Ethernet (PoE) supported | PoE |
| Power consumption during operation | 16 watts |
| OS required | ArubaOS, InstantOS |
| Width at shipment | 23 cm |
| Depth at shipment | 22 cm |
| Height at shipment | 7.2 cm |
| Shipping weight | 1.01 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 93% (non-condensing) |
| Max. operating temperature | 50 °C |
| My. operating temperature | 0 °C |
