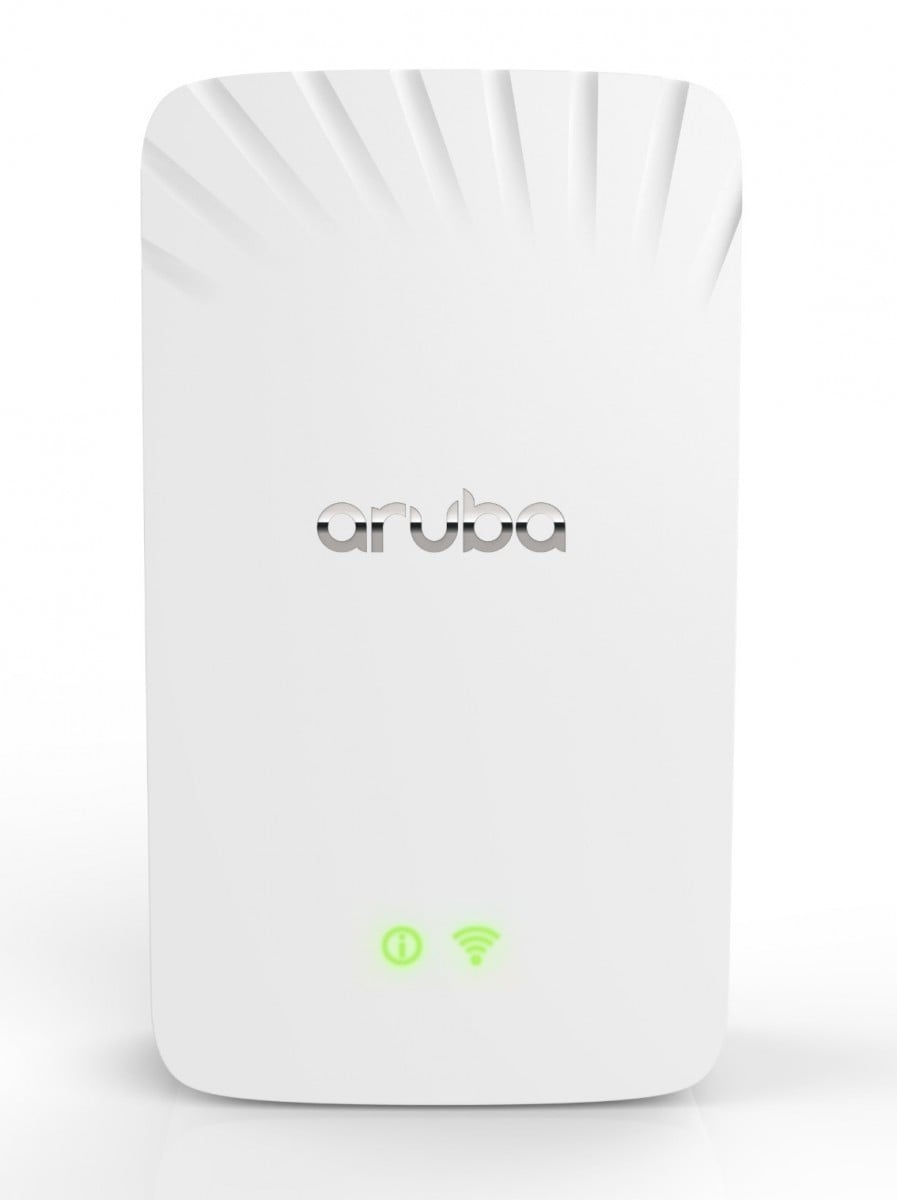

HPE Aruba AP-503H Access Point RW Dual Radio 2x2 802.11ax Unified
€352,95
- 2.4 GHz 287 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1487 Mbit/s
- IEEE 802.11ax, IEEE 802.11mc
- WPA2, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
Availability: In stock
Secure payment · Fast delivery
EAN:0190017395609Brand:
HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1487 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 1000,5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps |
| Number of users | 256 user(s) |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| MIMO | Yes |
| MACsec support | No |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1487 Mbit/s |
Design
| Product colour | White |
| Recommended usage | Indoor |
Operational conditions
| Storage relative humidity (H-H) | 5 - 93 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 5 - 93 |
Certificates
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
Power
| Power over Ethernet (PoE) | Yes |
Antenna
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5.6 dBi |
| Antennas quantity | 2 |
Weight & dimensions
| Depth | 47 mm |
| Width | 86 mm |
| Height | 150 mm |
Other features
| I/O ports | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
